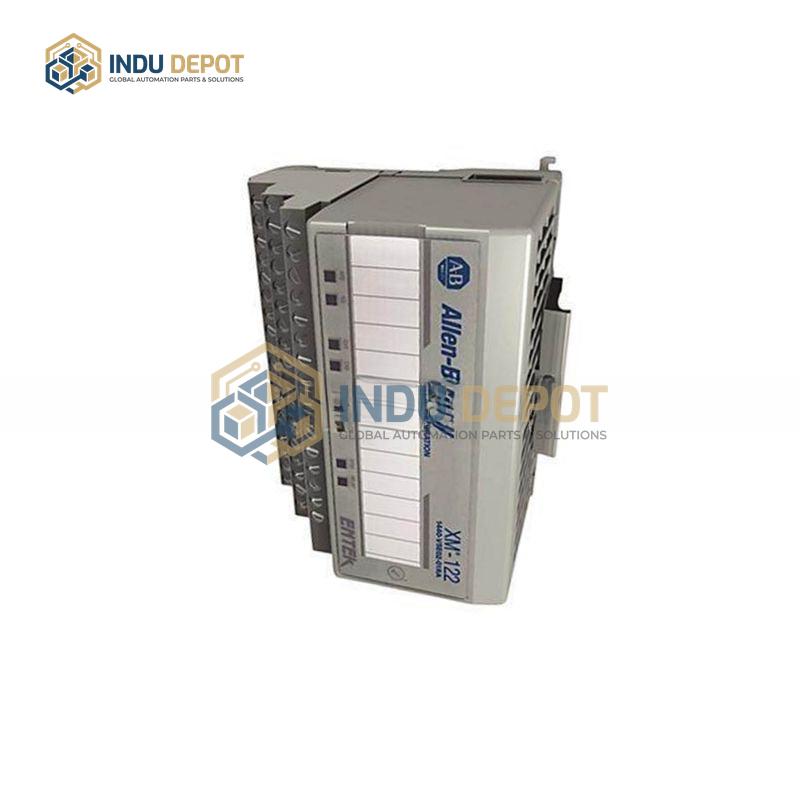

1440-VSE02-01RA Vibration Module AB XM Series for Predictive Maintenance

Description

The 1440-VSE02-01RA is a vibration module from the AB XM Series, designed exclusively for predictive maintenance applications. As part of the 1440 product line, this module features a dual-channel design that supports connection to common vibration sensors such as eddy current probes, accelerometers, and other sensors with voltage signal outputs, enabling comprehensive monitoring of rotating equipment components like shafts, housings, and bearing pedestals. Key technical specifications include a 50V operating voltage and 50KHZ output frequency. It integrates advanced signal processing capabilities, supporting both synchronous and asynchronous measurements, as well as FFT processing to deliver up to 30 monitored parameters for detailed equipment condition analysis. The module also includes a tachometer channel that accepts inputs from most speed measurement sensors, supporting rotational speed measurements ranging from 1 to 1.2M RPM with pulse rates from 1 to 50,000 events per revolution. Equipped with two isolated 4-20 mA outputs and an onboard relay, it provides flexible data transmission and alarm triggering options, with expandable relay capacity via connection to an XM 441 expansion relay module for enhanced protection functionality.
