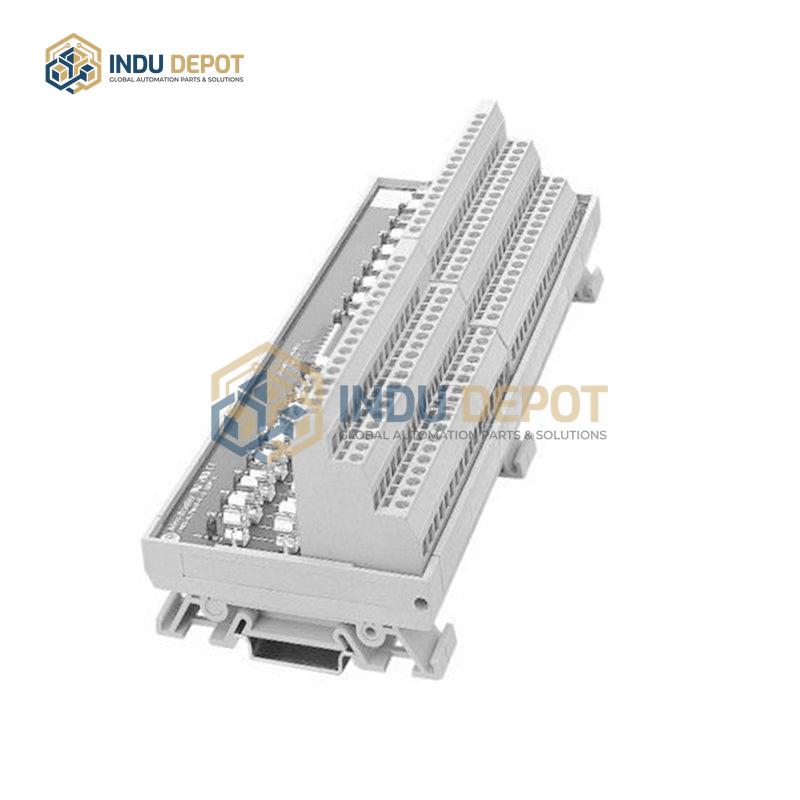

1492-TAIFM16-F-3 | Allen-Bradley | Fused Termination Module

Description

1492-TAIFM16-F-3 is an Allen-Bradley Fused Termination Module, a type of industrial terminal component designed for circuit protection and signal termination. While direct technical data for this exact model is unavailable, specifications from comparable Allen-Bradley fused terminal products provide key performance and dimensional insights. This module is engineered for low-voltage DC applications, with a rated supply voltage of 24V DC, a fixed rated current of 6A, and a maximum operating current of 6A. It features an IP20 protection rating, making it suitable for indoor industrial environments with low contamination exposure (pollution level 2). The module uses a push-in termination type, supporting two wire gauge ranges: PT10 AWG for 20 AWG to 8 AWG (0.5 square meters to 10 square meters) and PT2.5 AWG for 24 AWG to 14 AWG (0.14 square meters to 2.5 square meters), enabling secure, tool-free wire connections. Its compact dimensions include a width of 12.5mm, height of 98.5mm, depth of 80mm, and a weight of approximately 0.13 lb per module, with 1 dedicated channel for circuit integration.
