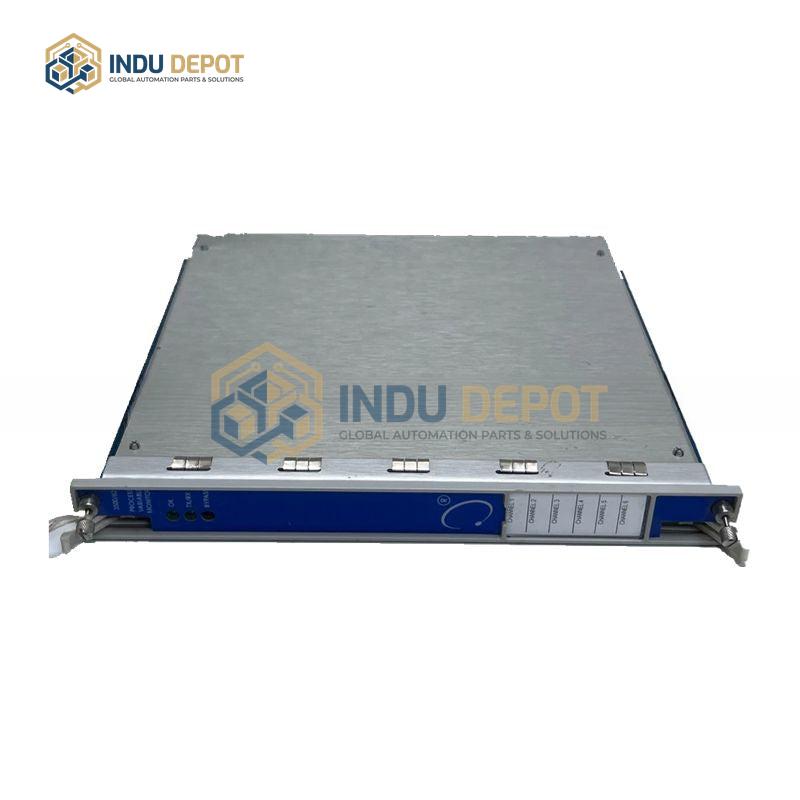

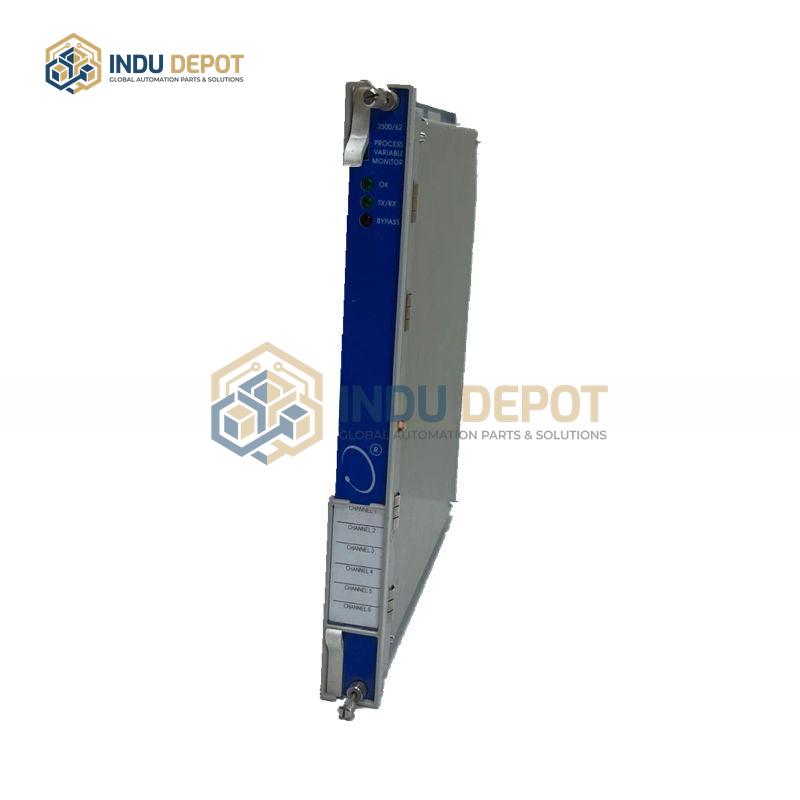

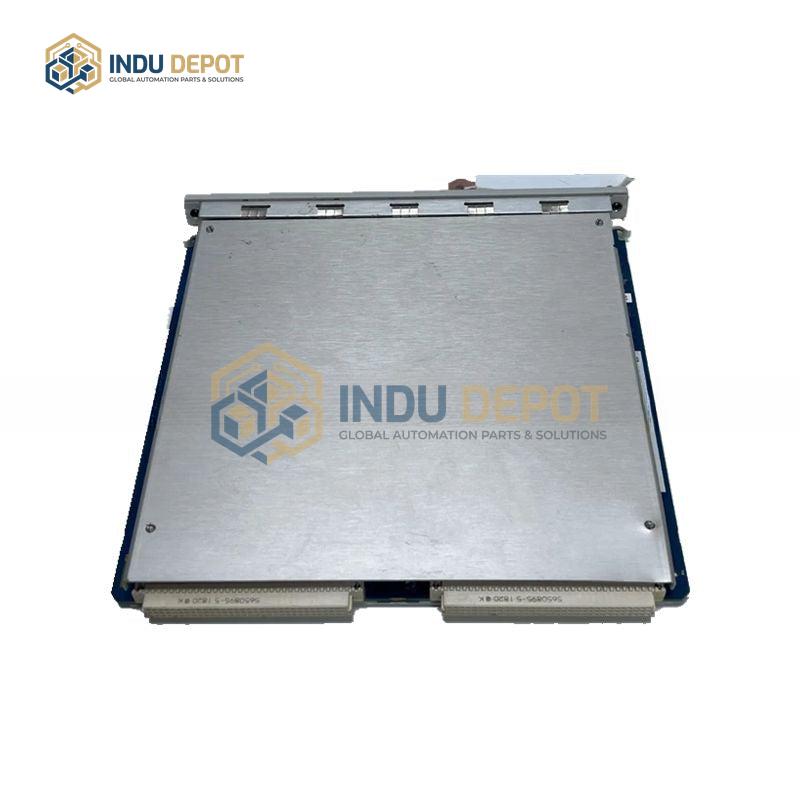

163179-03 Process Variable Monitor Bently Nevada

Description

TheBently Nevada 3500/62 Process Variable Monitoris a6-channel monitor moduledesigned to integrate seamlessly into theBently Nevada 3500 Machinery Protection System. It is crucial for monitoring and processing key machine parameters in real-time, such aspressures,flows,temperatures, andlevels. This module is ideal for applications that require continuous monitoring of process variables to ensure machinery protection and operational efficiency. The163179-03is the part number for the monitor module itself. It works in conjunction with various I/O modules, accepting a variety of input signals including: Current inputs: +4 to +20 mA DC. Voltage inputs: Proportional voltage signals from -10 Vdc to +10 Vdc. Once the input signals are received, the monitor conditions these signals and compares them to user-programmable alarm setpoints (Alert and Danger). If the signal exceeds a setpoint, the monitor triggers alarms and drives relay logic to protect the machinery. This functionality is essential for machinery protection as well as for providing operational data to maintenance personnel. The3500/62 Process Variable Monitorcan be programmed via3500 Rack Configuration Softwareto handle either current or voltage measurements. It is available with various I/O module options to cater to different signal input needs, includingisolated,non-isolated, andinternal barrier I/O modulesfor intrinsically safe applications.
