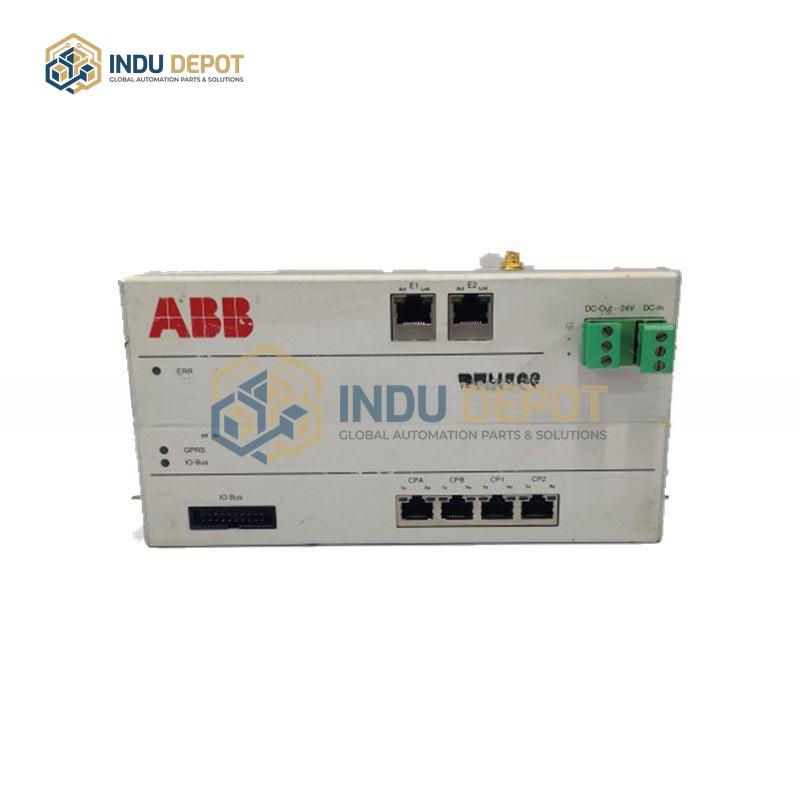

1KGT023400R0001 ABB RTU560 CPU Module
Description
1KGT023400R0001 ABB RTU560 CPU Module is a central processing unit module for the ABB RTU560 Remote Terminal Unit series, designed to enable efficient, reliable data collection, control, and communication for industrial automation and monitoring systems.
| Specification | Value |
|---|---|
| Supported Communication Protocols | IEC 60870-5-101/103/104, Modbus RTU/TCP, DNP3.0 |
| Power Input | 24V DC, 48V DC (wide range DC input) |
| Operating Temperature Range | -40 to 70 degrees Celsius |
| I/O Configuration | Multiple digital input, digital output, analog input, analog output channels; supports I/O expansion |
Key Features:
- Real-time on-site data collection, processing, and storage capabilities
- Supports remote device control, including equipment start/stop and parameter adjustment
- Redundant design with dual power input and dual network ports for high system availability
- Enables data exchange with SCADA and other master station systems for remote monitoring and diagnosis
Applications:
- Power system monitoring for remote substation data collection and control
- Industrial automation for production process monitoring and control in manufacturing, oil and gas sectors
- Smart grid for distributed energy management, load control, and fault detection
