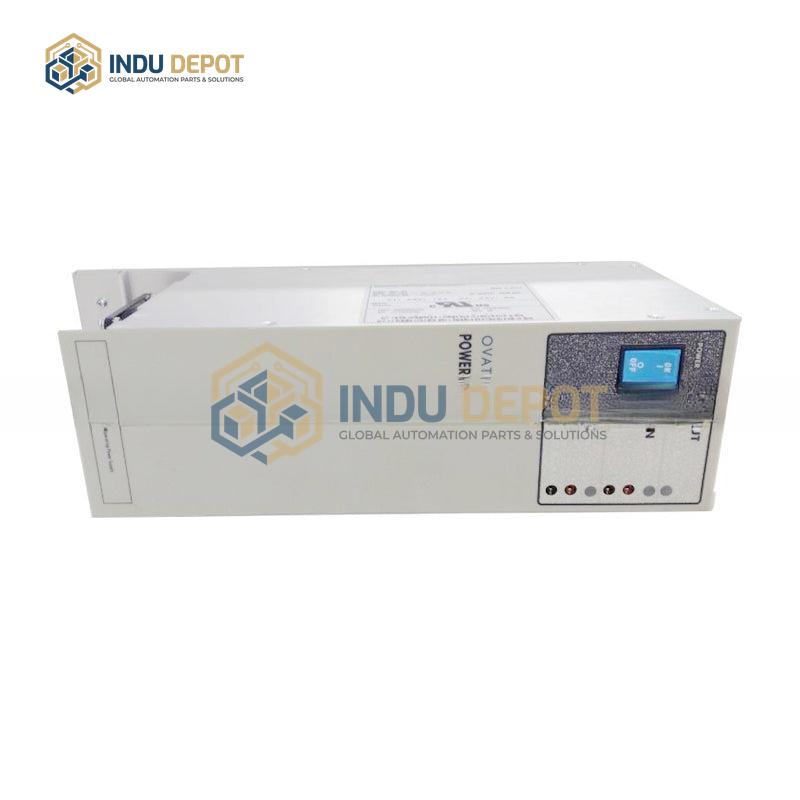

1X00416H01 OVATION Power Supply

Description

The 1X00416H01 OVATION Power Supply is a reliable power module designed for industrial automation systems, specifically engineered to deliver stable power to Ovation limiters and I/O circuits. Key technical specifications include a rated output voltage of 24V DC, with an adjustable output voltage (USet) range of 24V DC to 29.5V DC at constant capacity. It offers a rated output current of 40A, with static boost of 45A, dynamic boost of 60A for 5 seconds, and selective fuse breaking of 215A for 15ms, supported by multiple thermal magnetic circuit breaker types (A1-A40, B2-B25, C1-C13, Z1-Z16).

The power supply boasts high efficiency, with typical values of 94.8% at 120V AC and 95.9% at 230V AC, and features power factor correction to reduce power consumption. It includes over-voltage protection (OVP) at the output of ≤32V DC, feedback voltage resistance of ≤35V DC, and tight control deviation: <0.5% for static load changes of 10% to 90%, <1% for dynamic load changes of 10% to 90% at 10Hz, and <0.25% for input voltage variations of ±10%. Additional features include redundant power supply capability with independent external AC/DC input, diode pulse input for continuous power, 32-millisecond hold time (twice the standard), hot-swappable functionality, and continuous system monitoring. It has a derating of 2.5% per K for temperatures between 60 degrees Celsius and 70 degrees Celsius.
