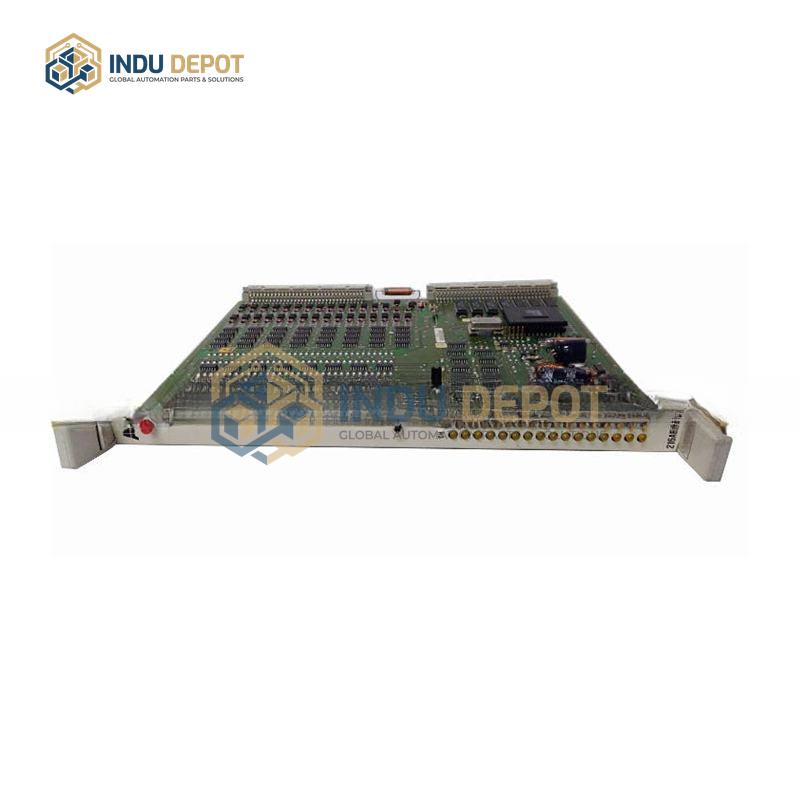

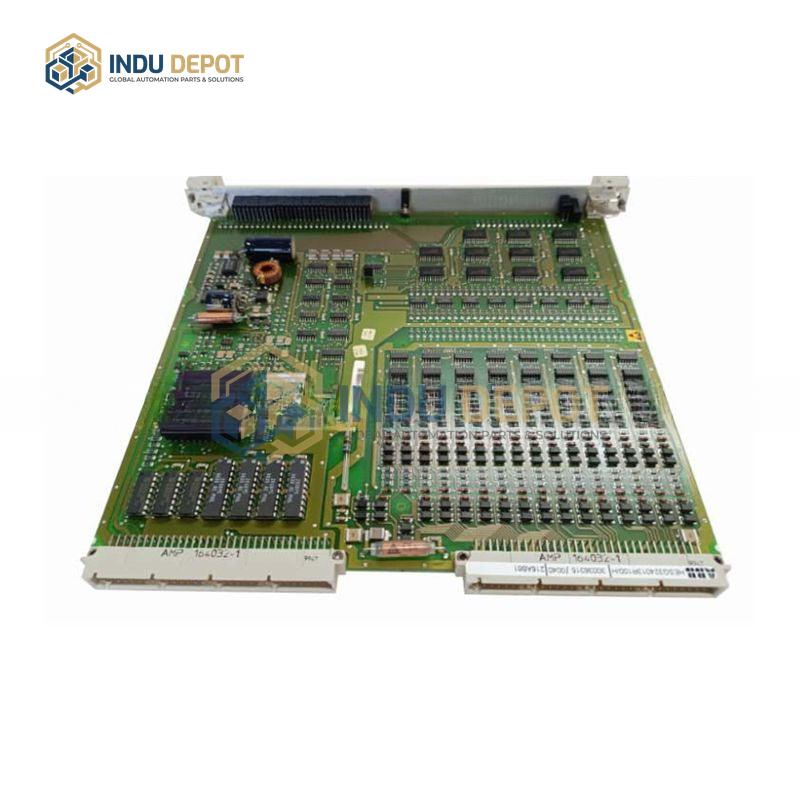

216AB61 ABB Binary Output Module HESG216881/A
Description
ABB 216AB61 Binary Output Module HESG216881/A is a high-precision intelligent binary output module from ABB’s Procontrol series, designed to convert digital commands from DCS or PLC systems into 16 independent binary output signals for industrial automation control and monitoring. It serves as a key bridge between control cores and field actuators in industrial automation control systems.
| Specification | Value |
|---|---|
| Product Type | 16-channel Binary Output Module |
| Input Voltage Range | 20-30V DC |
| Output Voltage Range | 115-230V AC |
| Rated Output Current | 6A |
| Number of Output Channels | 16 independent outputs |
| Response Time | ≤1ms |
| Operating Temperature Range | -40 to 70 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Communication Protocol | Modbus RTU |
| Safety Certifications | IEC 60950-1, UL 508, CE |
| Dimensions | 167mm x 50mm x 170mm |
| Weight | 0.5kg |
Key Features:
- Integrates high-precision signal processing and multiple safety protection mechanisms including overload, short circuit, and overheat protection
- Adopts anti-interference signal isolation technology and wide voltage input design for stable operation in harsh industrial environments
- High efficiency over 90% and low power consumption below 10W
- Good compatibility for easy integration into new or existing industrial control architectures
- Supports real-time monitoring of key industrial automation system parameters
Applications:
- Power industry: power distribution equipment, substations, power plants
- Communication equipment: telecom base stations, network devices, communication centers
- Medical equipment manufacturing: medical imaging devices, laboratory equipment, life support systems
- Industrial automation systems: precise regulation and control of gas or liquid pressure and flow, robot system data transmission and control
