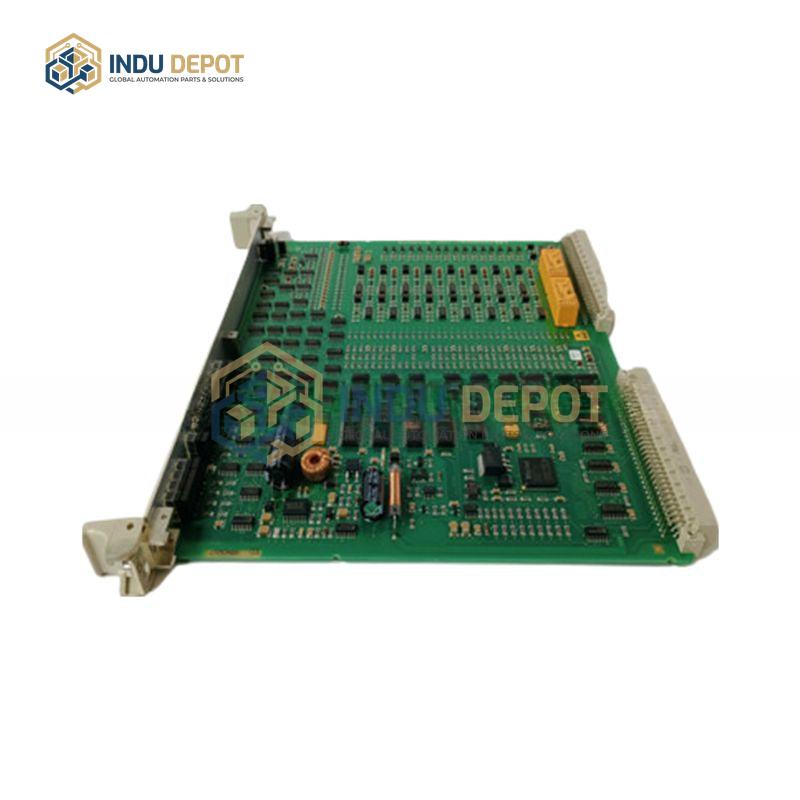

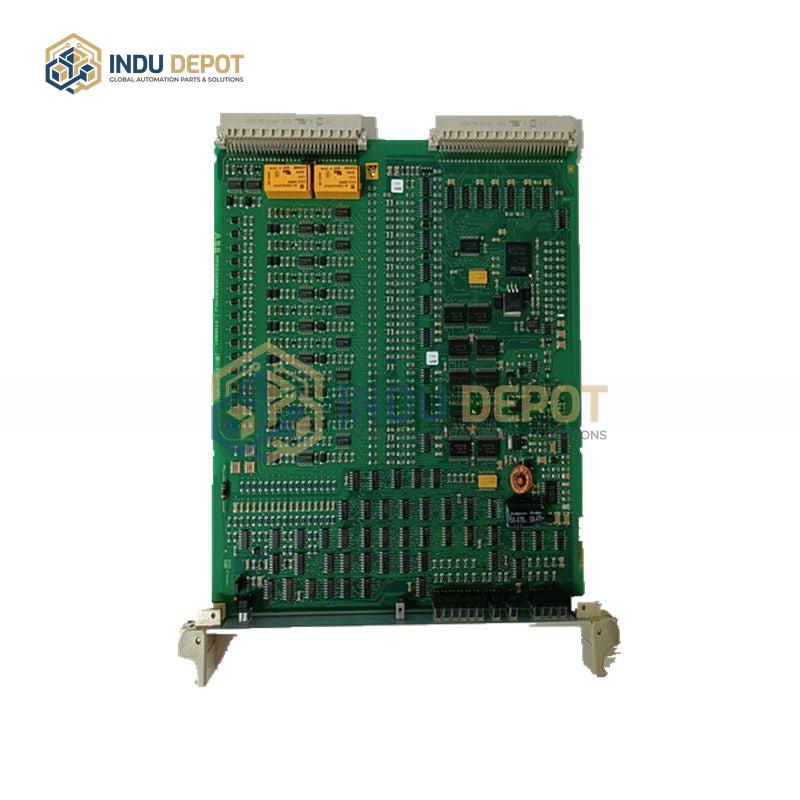

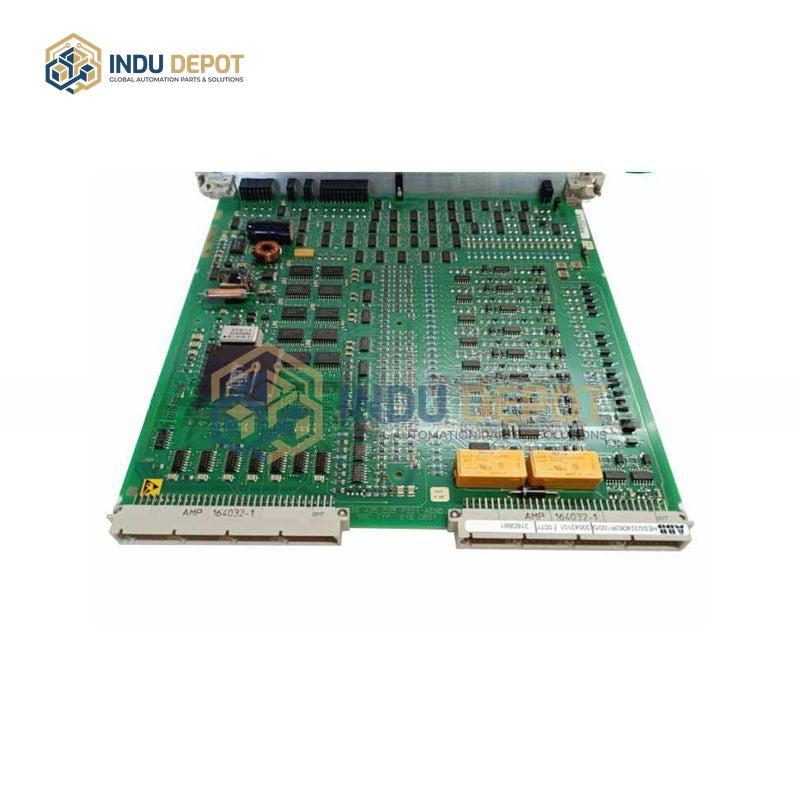

216DB61 ABB Tripping Board for Industrial Input Protection
Description
216DB61 ABB Tripping Board is an industrial input protection component designed for safeguarding industrial control and power systems. No direct technical specifications for this model are available, so details are referenced from the closely related ABB 216AB61 Procontrol series module, a high-precision binary output module that connects control systems to field actuators.
| Specification | Value |
|---|---|
| Product Type | 16-channel binary output module (reference model) |
| Input Voltage Range | 20-30V DC |
| Output Voltage Range | 115-230V AC |
| Rated Output Current | 6A |
| Output Channels | 16 independent outputs |
| Response Time | ≤1ms |
| Operating Temperature Range | -40 to 70 degrees Celsius |
| Protection Rating | IP20 |
| Communication Protocol | Modbus RTU |
Key Features:
- Integrates high-precision signal processing and multi-layer protection mechanisms including overheat, overload, and short-circuit protection
- Wide input voltage design and anti-interference signal isolation for stable operation in harsh industrial environments
- High efficiency over 90% with low power consumption below 10W, meeting energy-saving requirements
- Compatible with DCS and PLC systems for easy integration into existing control architectures
Applications:
- Industrial automation control systems for connecting control cores to field actuators like relays and solenoid valves
- Power distribution systems, substations, and power plants for reliable signal control and protection
- Communication equipment and medical device systems for stable power and signal management
Related Models:
- ABB 216AB61
- ABB 216BM61B
- ABB 216EA61b
- ABB 216NG63
- ABB 216VC62a
