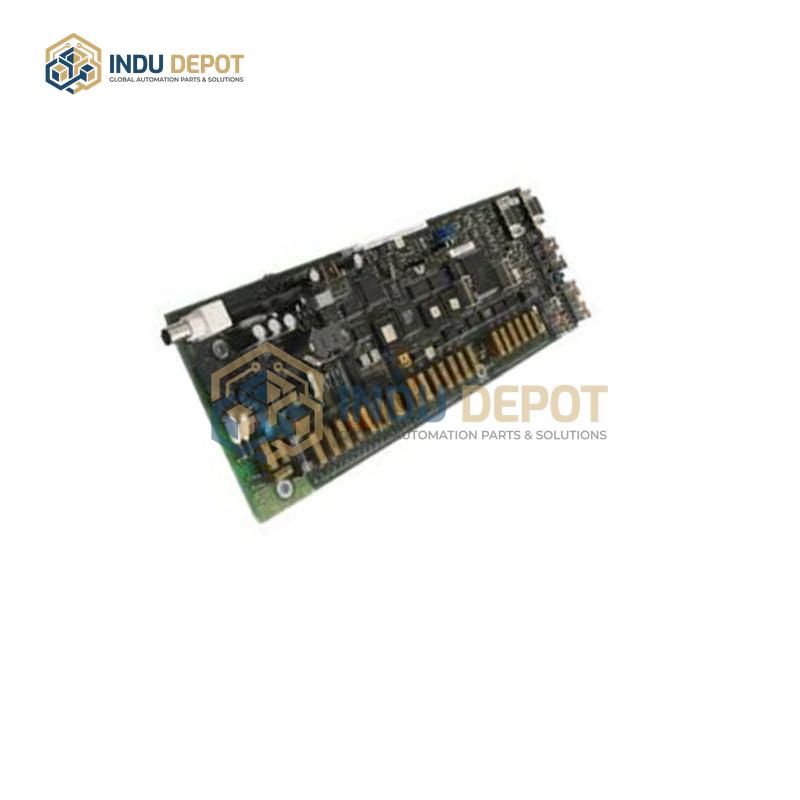

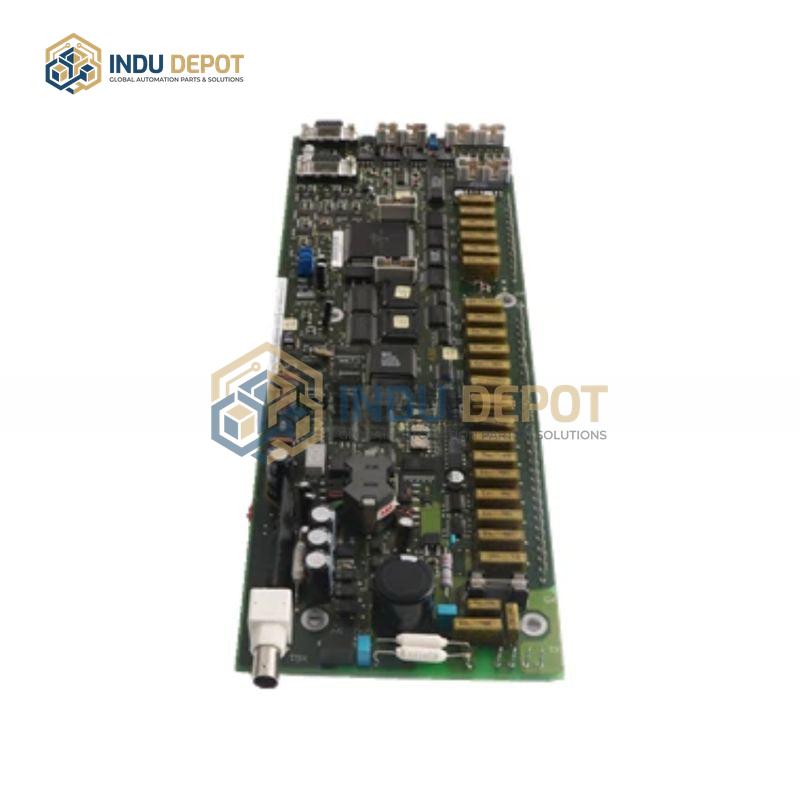

3BHB005245R0101 ABB Control Board

Description

No direct technical specifications or product details are available for the 3BHB005245R0101 ABB Control Board. However, based on comparable ABB control board products in the same product family, such as the 3BHB003154R0101 IGCT Module Board, this type of control board is designed for high-voltage, high-current industrial applications including power transmission and distribution, motor drives, and renewable energy generation. Key features of comparable models include high efficiency, high reliability, and high power density, enabling optimal performance in demanding power control environments. The 3BHB003154R0101 model, a related IGCT (Insulated Gate Commutated Thyristor) control board, has a rated voltage of 3300V, rated current of 2000A, and rated power of 6.6 MVA, with a switch frequency of 20 kHz and efficiency greater than 97%. It uses water cooling for thermal management, has an IP67 protection rating, and measures 300mm x 200mm x 60mm with a weight of 10 kg. These modules leverage advanced IGCT technology with large silicon wafers to support high continuous and peak current loads, ensuring stable power conversion and control.
