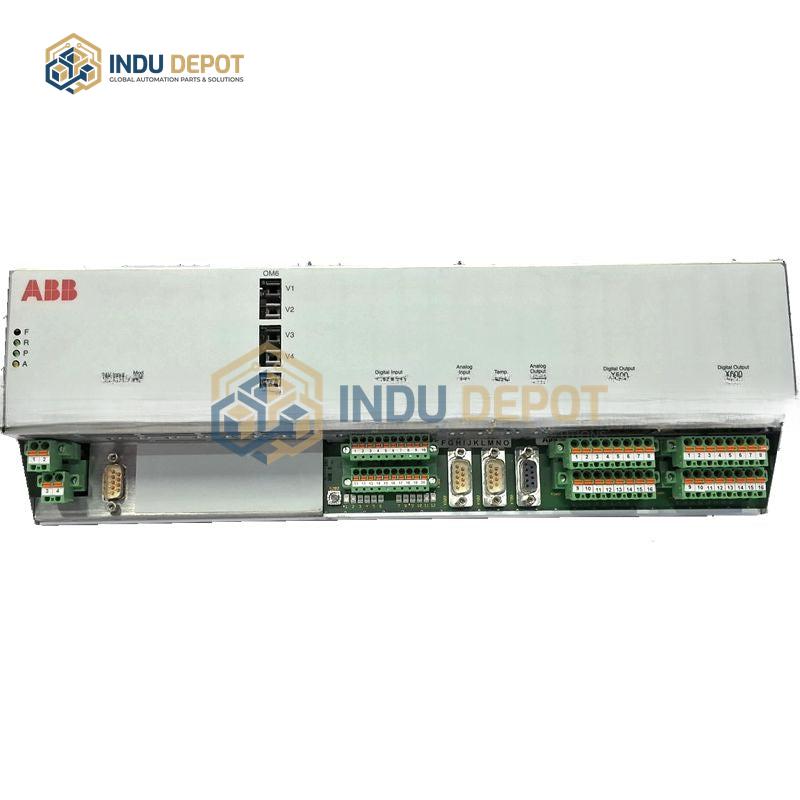

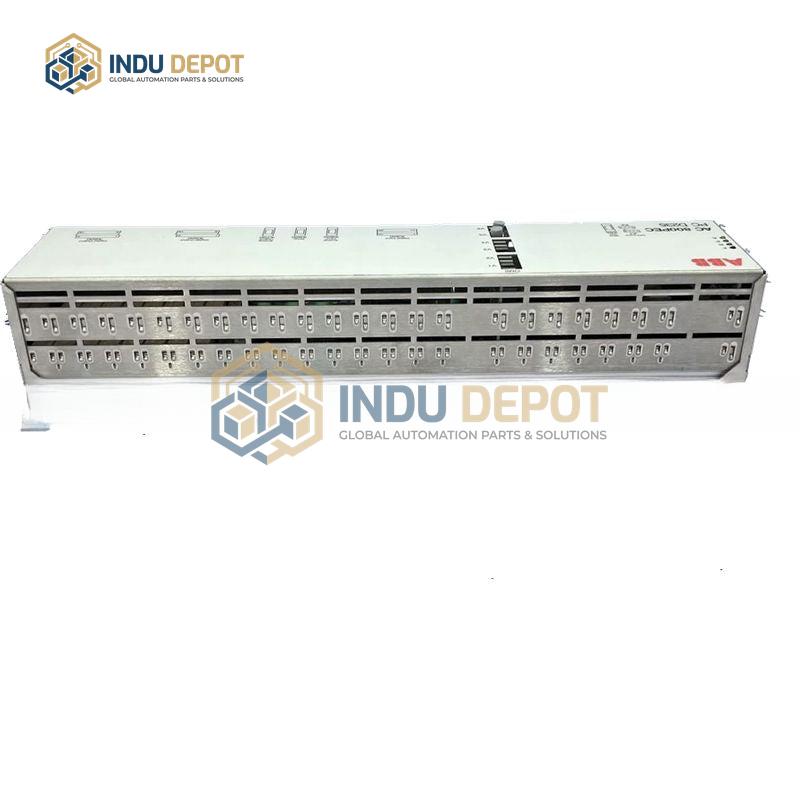

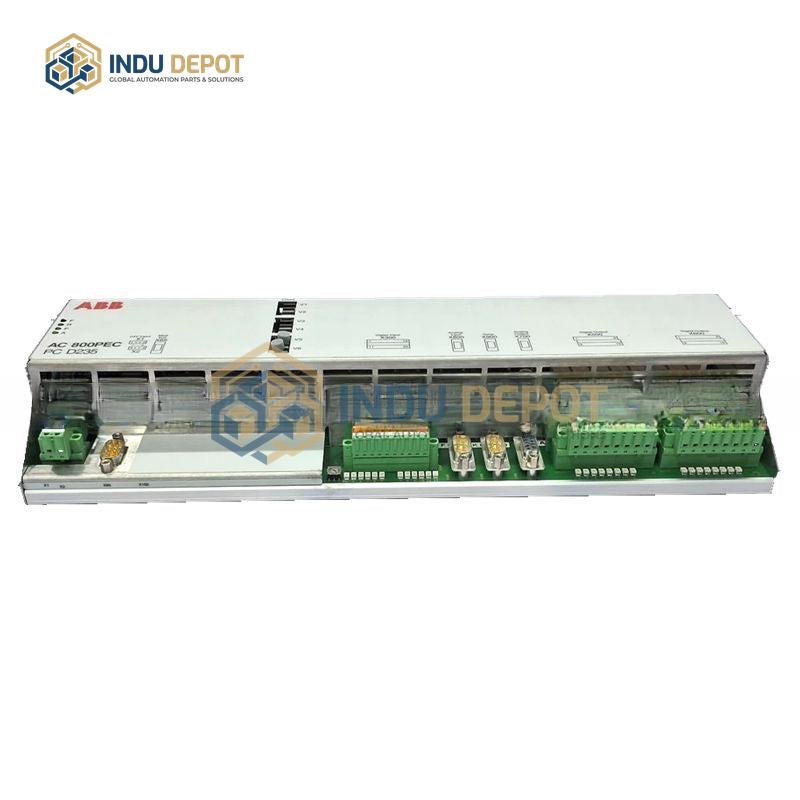

3BHE032025R0101 PCD235A101 ABB Protection Control Module
Description
3BHE032025R0101 PCD235A101 is an enhanced high-performance programmable controller (PCD) module from ABB, part of the AC 800M series. It is designed to handle complex control algorithms, large-scale I/O points, and high-speed process control applications, serving as a core control unit in distributed control systems (DCS).
| Specification | Value |
|---|---|
| Product Model | 3BHE032025R0101 PCD235A101 |
| Manufacturer | ABB |
| Processor | Enhanced PowerPC architecture processor |
| Working Memory | 32 MB |
| Non-Volatile Memory | 16 MB |
| Communication Interfaces | 2 integrated 10/100 Mbps adaptive industrial Ethernet ports |
| Operating Temperature Range | -10 to 40 degrees Celsius |
| Protection Rating | IP20 |
Key Features:
- Supports 1:1 hardware redundancy with disturbance-free switchover (requires redundancy authorization and sync module)
- Enables fast tasks configurable to 10ms cycle and background tasks for mixed control applications
- Front panel with status LED, small display, and function keys for local diagnostics and status monitoring
- Compatible with ABB Control Builder M engineering tool for programming and configuration
- Supports multiple fieldbus protocols including Profibus DP, Modbus TCP/RTU, FF, and CAN via interface modules
Applications:
- Power system generator excitation control
- Process control in chemical, food, and building materials industries
- Industrial automation for conveyor, pump, and fan motor control
- Mining and metallurgy for ore screening and material handling
Related Models:
- PCD231A
- PCD232A
- PCD233A
- PCD234A
