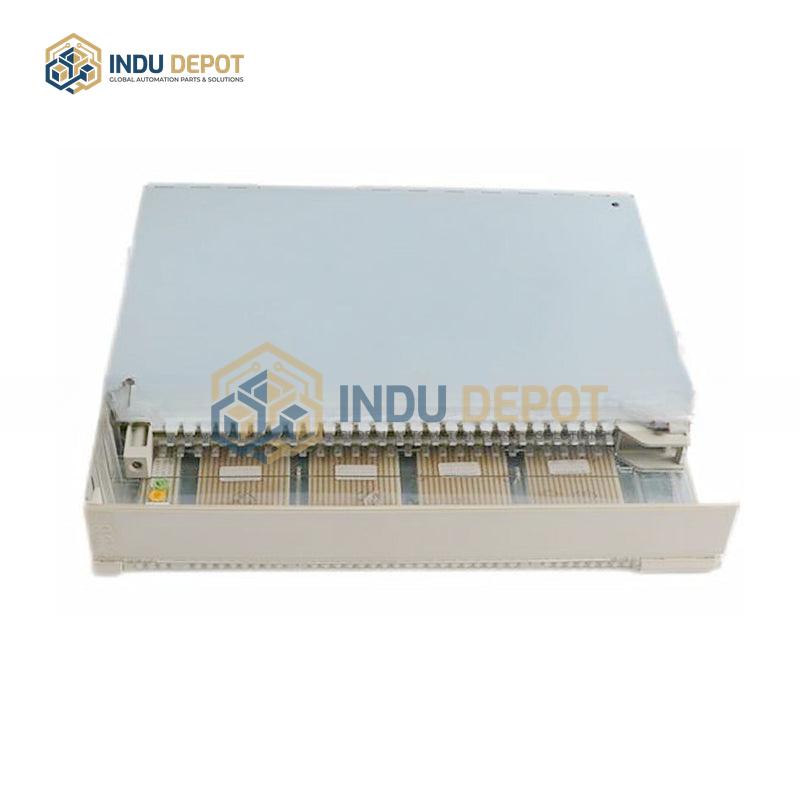

3BHT300006R1 | ABB DO610 Digital Output 32ch 24VDC
Description
3BHT300006R1 | ABB DO610 Digital Output Module is a PLC/DCS card module designed for industrial automation systems, providing reliable 32-channel digital output control for external devices.
| Specification | Value |
|---|---|
| Product Type | Digital Output Module |
| Channel Count | 32 Channels |
| Output Type | Transistor (Source/Sink Selectable) |
| Rated Voltage | 24V DC |
| Max Output Current per Channel | 0.5A |
| Isolation Voltage | 1500V AC |
| Supported Communication Protocols | Profibus DP, Modbus |
| Interface Type | RJ45 (Some models support pluggable terminals) |
| Max Data Transfer Rate | 12Mbps |
| Operating Temperature | -40 to 70 degrees Celsius |
| Protection Rating | IP20 |
| EMC Compliance | Industrial Level 4 |
| Mounting Method | DIN Rail Mount |
| Dimensions | 120mm x 80mm x 55mm |
Key Features:
- Channel-level diagnostic function for real-time output status monitoring
- Wide operating temperature range for harsh industrial environments
- High electrical isolation for system protection against surges and noise
- Compact design for easy system integration
- Compliant with multiple functional safety standards for critical control applications
Applications:
- Emergency safety shutdown and critical control applications requiring SIL 1-3 certification (Tricon v9.6 or later)
- Emergency safety shutdown applications requiring AK 1-AK6 certification (Tricon v9.x)
- Fire and gas detection applications compliant with EN 54 and NFPA 72 standards
- Burner management applications compliant with DIN VDE 0116, NFPA 8501, and NFPA 8502 standards
- Hazardous location applications compliant with ATEX Directive 94/9/EC for Zone 2, Group IIB areas
- Environmental, health, and safety applications in semiconductor manufacturing (Tricon v9.4)
Related Models:
- ABB DO610 16-channel digital output module
- ABB DO610 8-channel digital output module
- ABB DO610 48V DC output variant
