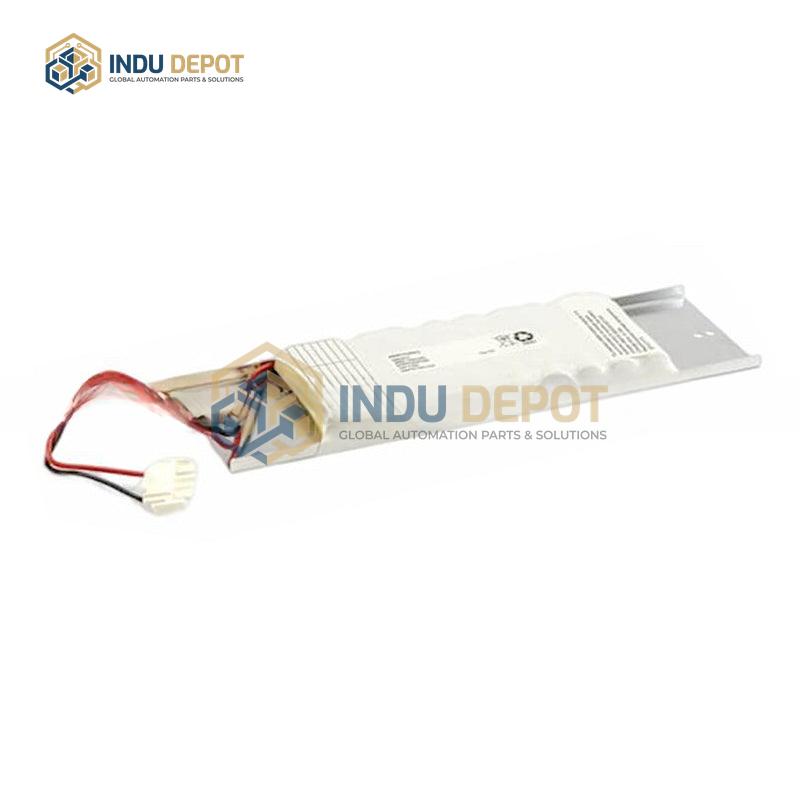

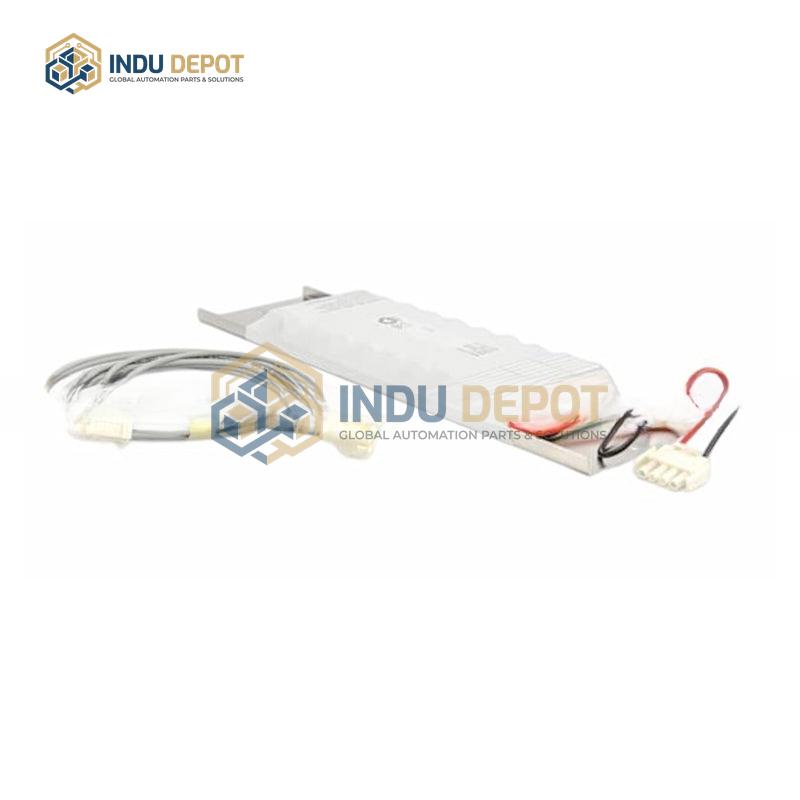

3BSC760015R1 SB522V1 ABB Battery Unit For AC400 Systems

Description

The 3BSC760015R1 SB522V1 is a nickel-metal hydride (NiMH) battery unit designed exclusively for ABB AC400 systems. It features a rated voltage of 12V and a rated capacity of 4Ah, with an internal fuse rated for 3.4A. This module also functions as a power component with a 24V output voltage, supporting an input voltage range of 12V to 48V, and operating at a base voltage of 220V. It uses pulse width modulation (PWM) switching technology with an output frequency of 350kHz, and has a power range of 0 to 30KW with a power consumption range of 0 to 50W.

Constructed in a compact module form with dimensions of 215*115*50mm, it offers a three-phase power configuration, fixed parameters, and conventional logic type. Key performance specs include a voltage adjustment rate of 200%, load adjustment rate of 300%, and output ripple noise of 011, with BS product certification. Built to withstand harsh conditions, it operates reliably in temperatures from 0 degrees Celsius to 60 degrees Celsius, and features high temperature resistance, suitability for dry environments, easy operation, reliability, and flexibility. It supports conventional systems and has hardware expansion capabilities, making it a stable power backup solution for AC400 system applications.
