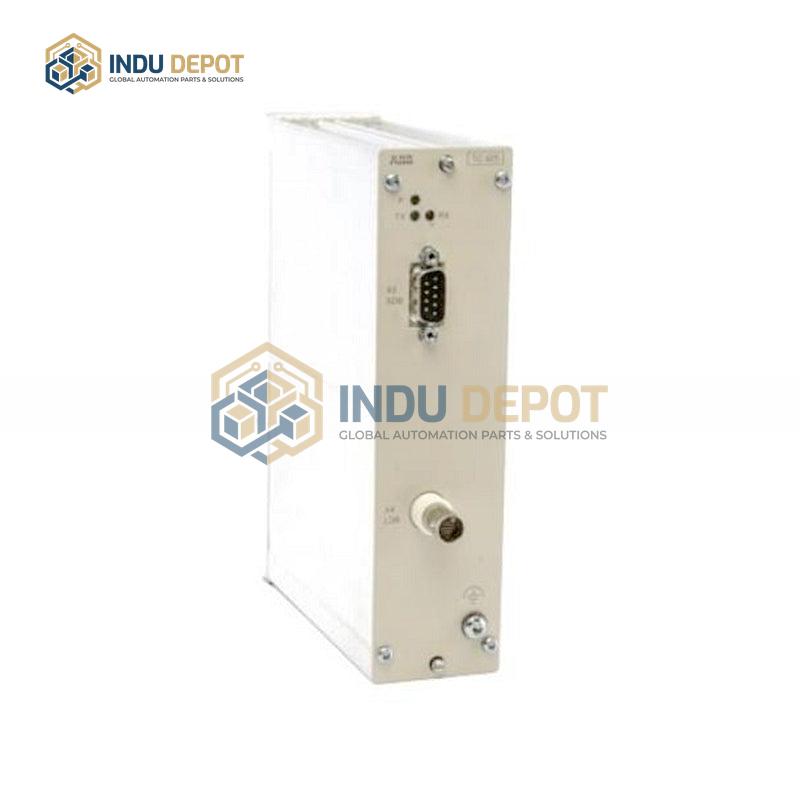

3BSE002224R1 ABB TC625 Coaxial Modem
Description
ABB TC625 3BSE002224R1 Coaxial Modem is a high-performance coaxial communication module specially designed by ABB for industrial control systems. It enables signal conversion and transmission between controllers and remote I/O stations, ensuring reliable operation of remote I/O communications in complex industrial environments.
| Specification | Value |
|---|---|
| Product Number | 3BSE002224R1 |
| ABB Model Name | TC625 |
| Compatible Bus Protocol | ABB AF100 Fieldbus |
| Physical Interface | Standard BNC Coaxial Cable Interface |
| Communication Speed | 10 Mbps |
| Power Supply | 24 VDC |
| Compatible Systems | ABB Advant OCS, Master DCS |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Dimensions (Length x Width x Height) | 216 mm x 153 mm x 63 mm |
| Net Weight | 0.7 kg |
| Mounting Type | Standard Rack Mount |
Key Features:
- High anti-interference capability, suitable for complex electromagnetic environments in industrial sites
- Equipped with LED indicators for real-time communication status monitoring
- Stable and reliable data transmission performance for remote I/O communication
- Easy deployment with standard rack mounting design
Applications:
- DCS systems in power industry
- DCS systems in petrochemical industry
- DCS systems in metallurgy industry
