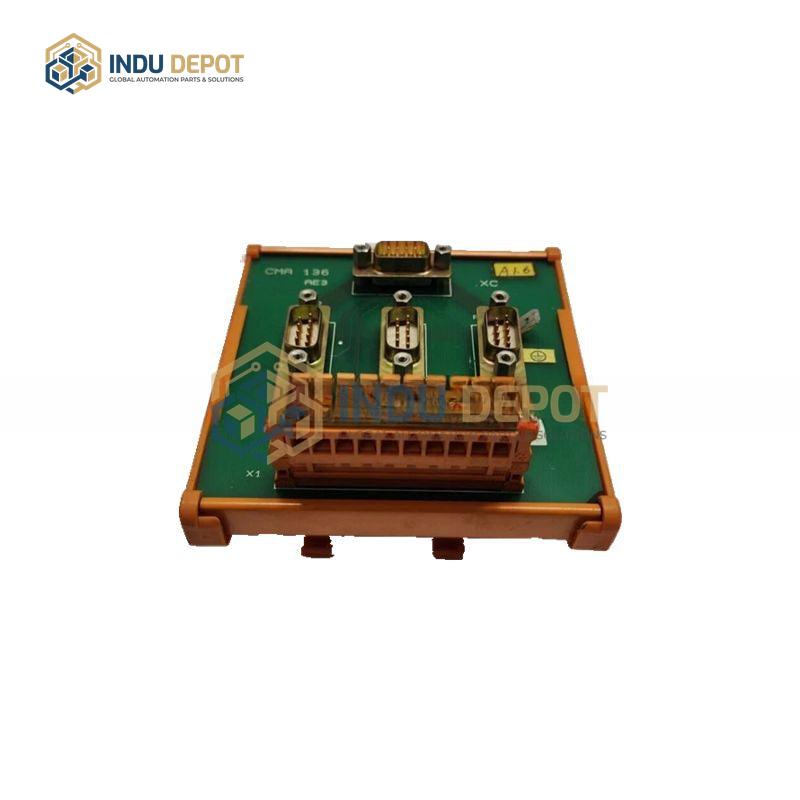

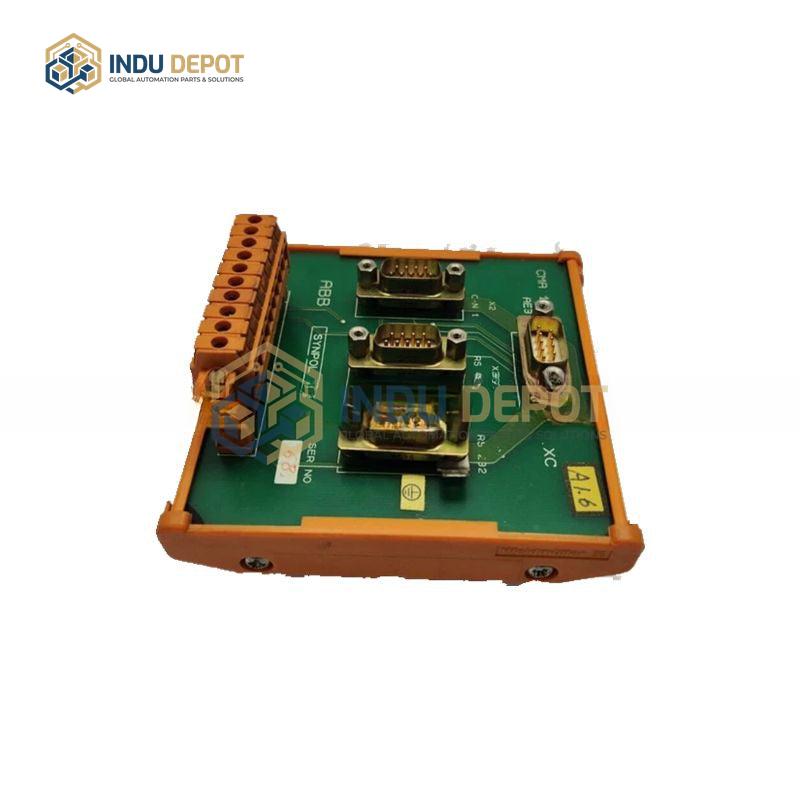

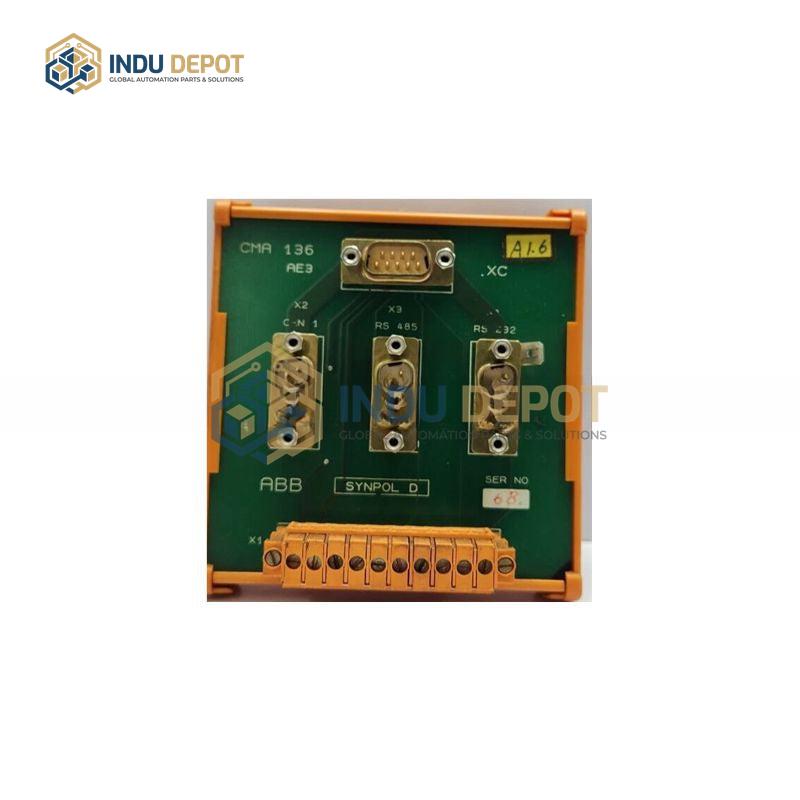

3DDE300416 ABB CMA136 SYNPOL D Terminal Board
Description
3DDE300416 ABB CMA136 SYNPOL D Terminal Board is a specialized industrial automation component part of the ABB Advant OCS/800xA series. It converts field device data into actionable insights for production process monitoring, control, and optimization, with robust data processing capabilities for industrial environments.
| Specification | Value |
|---|---|
| Processor Type | 32-bit RISC Processor |
| Clock Speed | 200 MHz |
| Memory | 128 KB RAM, 256 KB Flash |
| Communication Interfaces | RS-232, RS-485, CAN I/O |
| Input Channels | 32 (supports thermocouple, RTD, mV, V, potentiometer) |
| Output Channels | 16 relay, 4 analog, 8 digital |
| Resolution | 16-bit |
| Isolation Voltage | 1500 VAC |
| Operating Voltage | 24V DC |
| Operating Temperature | -25 to 55 degrees Celsius |
| Protection Rating | IP20 |
| Dimensions | 230mm x 160mm x 60mm |
| Weight | 1.2 kg |
Key Features:
- High-performance 32-bit RISC processor with optimized algorithms for fast data processing and control response
- Supports multiple communication protocols including Modbus RTU, TCP/IP, UDP, Ethernet, with data transfer rates from 9600 bps to 115200 bps
- Offers online parameter correction, single-step operation, and tracking functions for easy system debugging and optimization
- Industrial-grade design for reliable operation in harsh environments, with flexible expansion capabilities and modular integration
Applications:
- Process control for manufacturing equipment and production lines
- Data collection and analysis for production process optimization
- Energy management for monitoring and improving energy efficiency
- Automated production lines and robot control systems
- Industrial sectors including power, petrochemical, metallurgy, water treatment, and transportation
