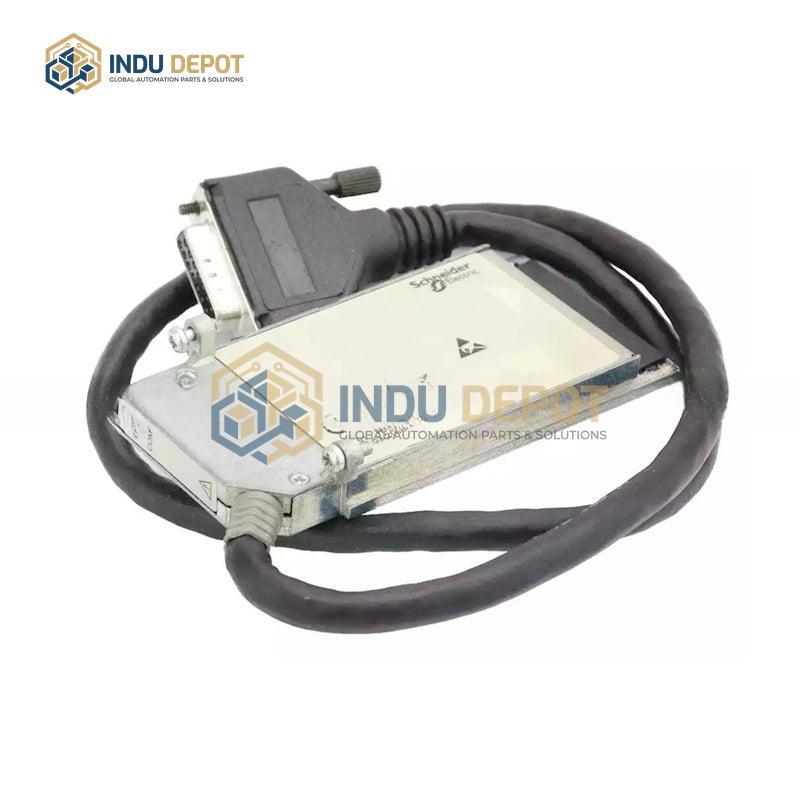

467NHP811-DP | Schneider | Profibus Interface

Description

The 467NHP811-DP is a Profibus interface industrial control device designed for reliable industrial communication. It supports the open PROFIBUS DP serial field bus standard, enabling decentralized connections between sensors, actuators, I/O modules, and control systems, with support for multi-master and multi-slave network configurations. Its communication performance is highly flexible, with a rate range of 9.6 kbit/s to 12 Mbit/s and automatic baud rate adaptation; users can select 12 Mbit/s for short-distance high-speed transmission, or lower to 9.6 kbit/s for long-distance networks, with a maximum transmission distance of 1000 meters using shielded cable at 9.6 kbit/s.

Equipped with 1 PROFIBUS DP standard interface (RS485 physical layer) with a Sub-D 9-pin male connector, it uses shielded twisted pair differential transmission for strong anti-interference capability. The interface includes short-circuit and overvoltage protection, and can withstand ±15kV electrostatic discharge to prevent damage from industrial environment interference or wiring errors.

With compact dimensions of 40mm (width) × 125mm (height) × 120mm (depth) and a net weight of 0.35kg, it features a flame-retardant ABS shell meeting UL 94 V-0 standard, and mounts directly to a standard 35mm DIN rail for dense cabinet layouts. It supports complex logic control, continuous process control, multi-device data interaction, and built-in fault diagnostics storing up to 120 fault and interrupt events, with programming support for LAD, STL, SCL languages via STEP 7. Ideal for manufacturing production lines, energy management systems, and other industrial automation scenarios.
