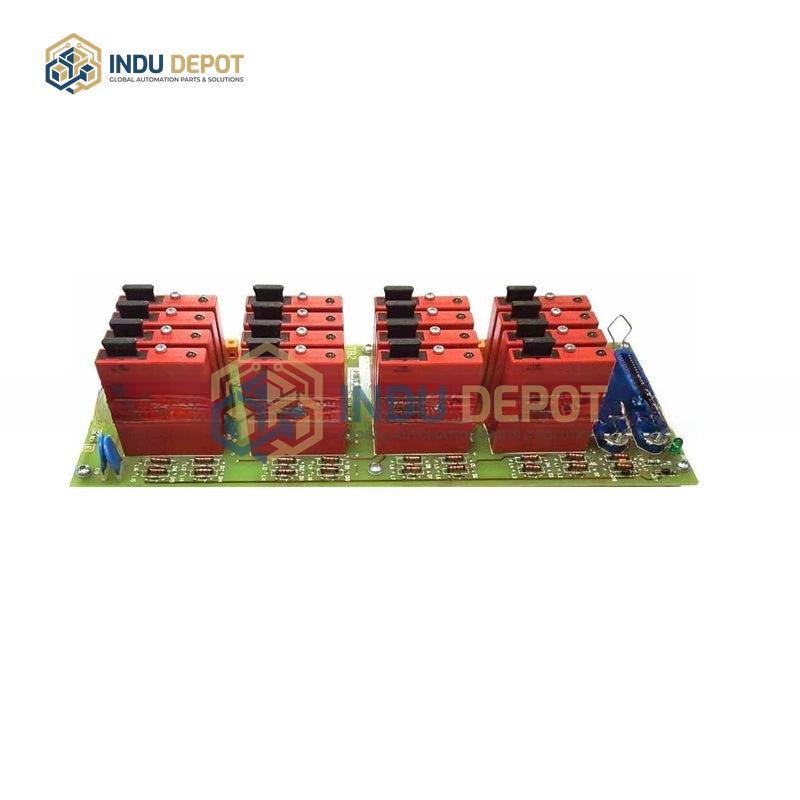

51304650-100 MU-TD0D13 Honeywell Digital Output FTA SS Relay Rev. H

Description

51304650-100 MU-TD0D13 Honeywell Digital Output FTA SS Relay Rev. H is a digital output field termination assembly (FTA) from Honeywell, designed for industrial automation control systems. This solid state relay module supports diverse output types, including relay contact signals with single-pole double-throw switching rated at 3A/240VAC, pulse voltage output at 20VDC/20mA, and linear outputs covering 4-20ma, 0-5v, 0-10v, 1-5v, and 2-10v. It features configurable control output cycles ranging from 0 to 150 seconds (4-20ma to 0, solid state relay to 1, electromechanical relay to 10) and dead time settings from 0 to 1000 seconds with built-in dead time compensation for precise signal regulation. The module offers flexible alarm functionality with 3 selectable alarm channels and 17 alarm type options, plus timer-supported alarm modes including strobe, continuous, and timer-delayed alerts. It supports motor control applications such as servo electric valve regulation, and provides auxiliary output signals (SP, PV, MV) with multiple output types, alongside rich auxiliary input types. With a 250ms sampling cycle, it allows 2 configurable programs with 8 segments each, supporting repeatable and interconnected setpoint programs with end-of-segment alarm outputs. Communication is enabled via RS-232 and RS-485 TTL, and it operates on a universal AC power supply of 85-265V at 50/60Hz. Ideal for use in port, heating, gas, water supply, wastewater treatment, and metallurgy applications, it delivers reliable, multi-functional digital output control for industrial processes.
