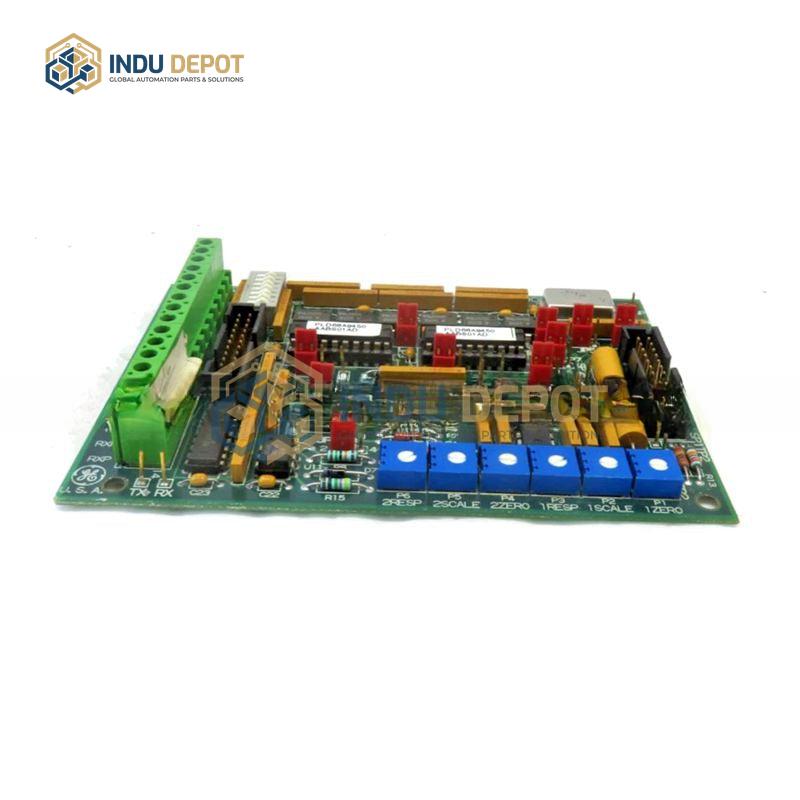

531X309SPCAJG1 GE Industrial Signal Processing Module
Description
531X309SPCAJG1 GE Industrial Signal Processing Module is a signal processing board designed for industrial automation systems, serving as an interface between drives and control systems. It processes and transmits signals, converting input from sensors and transmitters into digital signals recognizable by drives, acting as a critical component for industrial automation operations.
| Specification | Value |
|---|---|
| Model | 531X309SPCAJG1 |
| Brand | GE (General Electric) |
| Type | Signal Processing Board |
| Operating Voltage | 110-240VAC, 220-380V |
| Output Voltage | 0-5VDC, 10VDC |
| Output Current | 10mA |
| Power | 10W |
| Operating Temperature | -40 to 60 degrees Celsius, -40 to 140 degrees Celsius |
| Dimensions | 215 x 160 x 30mm, 8.5 x 6.3 x 1.2 inches |
| Weight | 0.7kg, 0.36kg |
| Communication Interfaces | Ethernet, RS-485, RS-232 |
| Protection Rating | Industrial Grade (IP65 or higher) |
Key Features:
- Handles both analog and digital signals, supporting signal conversion, filtering, amplification, and isolation
- Modular design with multiple configuration options to suit diverse application requirements
- Redundant design with logically independent dual-bus electrical interfaces for enhanced system reliability
- Built with high-quality components and equipped with self-diagnostic functions to monitor operating status and detect faults
- Compatible with multiple GE control modules and supports connection to third-party devices
- Includes configurable switches, jumpers, and potentiometers to adjust signal filtering and gain
Applications:
- Industrial automation systems for signal processing and control, such as motor drives and frequency converters
- Process control in chemical, petroleum, and pharmaceutical industries for monitoring and regulation
- Power systems including power plants and substations for equipment monitoring and control
- Communication systems like SCADA for data collection and transmission
