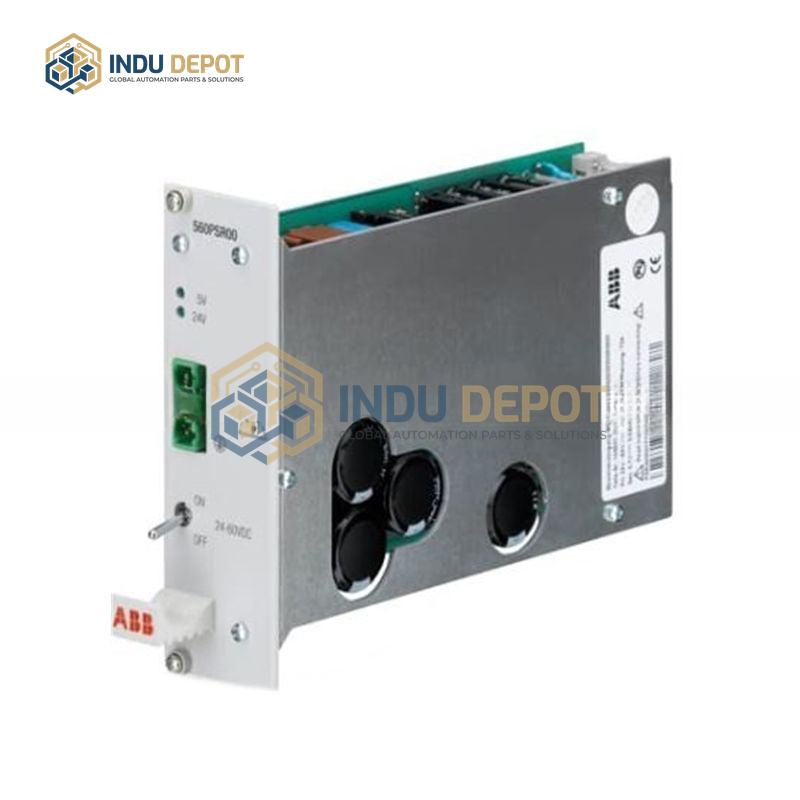

560PSR00 1KGT026500R0001 Power Supply Unit ABB
Description
560PSR00 1KGT026500R0001 Power Supply Unit is a dedicated power device for ABB RTU560 racks, designed to deliver stable dual-output DC power to compatible subracks and associated communication units.
| Specification | Value |
|---|---|
| Input Voltage Range | 24 to 60 V DC (-20% to +15%) |
| Output Voltage | 5 V DC, 24 V DC |
| Maximum Supported Communication Units | 8 units (560CMR01/02) |
| Input Voltage Interruption Tolerance | Up to 50 milliseconds |
Key Features:
- Galvanic isolation between input and output circuits
- Natural convection cooling for silent, fan-free operation
- Multiple protection functions: output electronic power limiting, output short circuit protection, input overvoltage protection, input reverse voltage protection
- Supports parallel redundant operation with controlled load balancing and fault monitoring
- LED indicators for output voltage status and fault alarm signaling
Applications:
- Power supply for RTU560 subracks 560MPR03 and 560SFR02
- Redundant power configurations for high-availability industrial automation systems
- Remote terminal unit (RTU) installations in industrial and utility environments
Related Models:
- 560PSU01 1KGT006600R0
- 560PSU02 1KGT011900R0001
- 560PSU01 R0002
