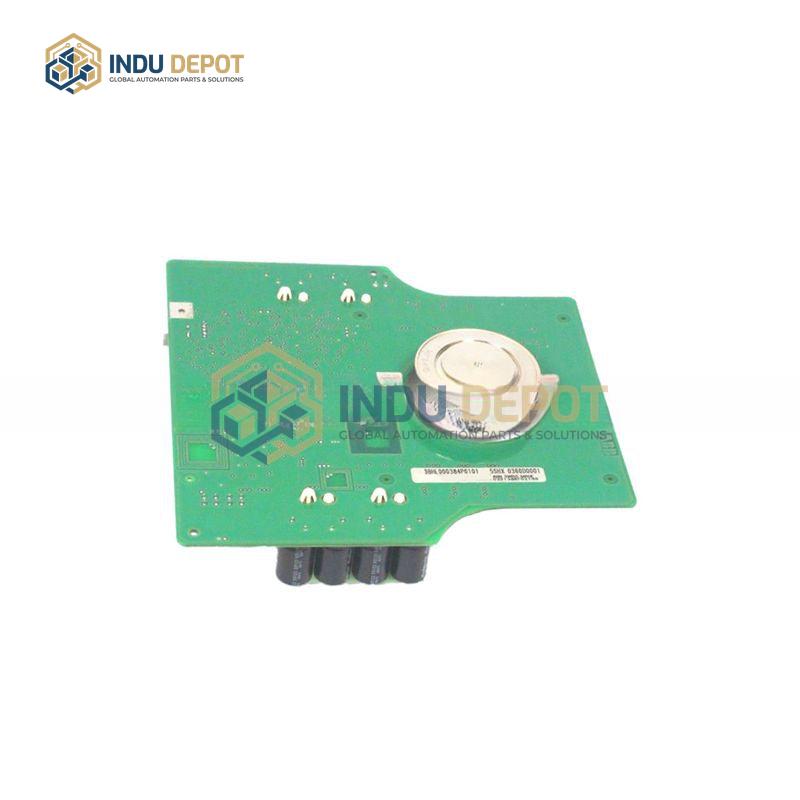

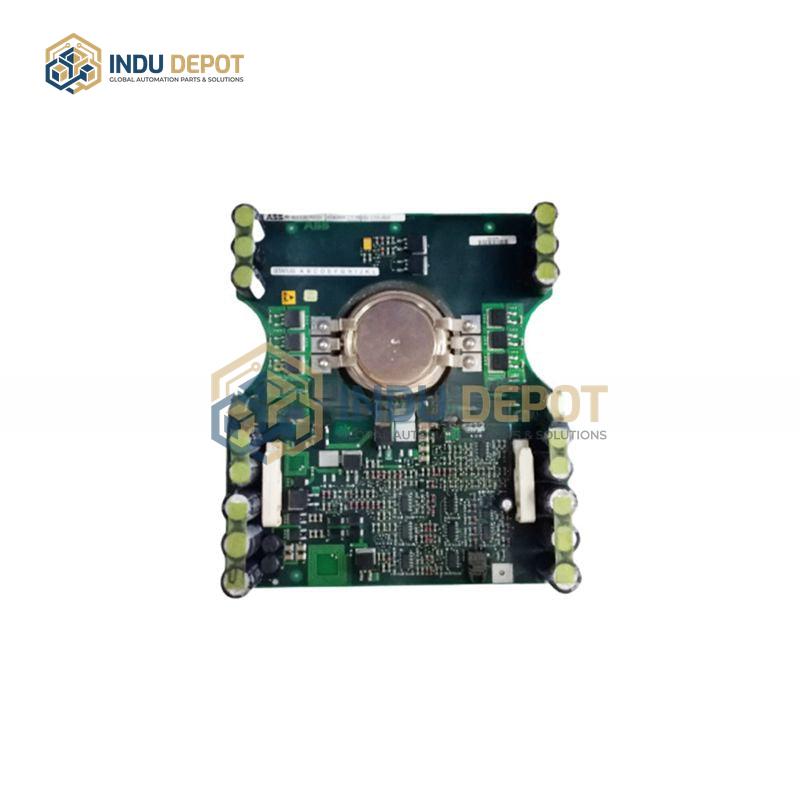

5SHX14H4502 ABB IGCT Power Module
Description
5SHX14H4502 ABB IGCT Power Module is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module, combining fast switching of transistors with high voltage and current tolerance of thyristors, designed for medium to high voltage, high-power power electronic applications.
| Specification | Value |
|---|---|
| Structure Type | Modular |
| Operating Voltage | 650V |
| Output Current | 2645A |
| Operating Frequency | 150/60Hz |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Weight | 1kg |
| Origin | Switzerland |
Key Features:
- High power density for large power output in a compact form factor, reducing equipment size
- Faster switching speed than traditional GTOs, improving system dynamic response performance
- Low conduction voltage drop to reduce system power consumption and boost efficiency
- High reliability with strict testing and certification, enabling stable long-term operation in harsh industrial environments
- Modular design for easy installation and maintenance, lowering system complexity
Applications:
- Industrial drives including motor drives, frequency converters, and servo systems
- Power electronics such as power converters, static var compensators, and reactive power compensation devices
- New energy systems like photovoltaic inverters and wind power converters
- High voltage inverters for hydro, combined cycle, and pumped storage power plants
