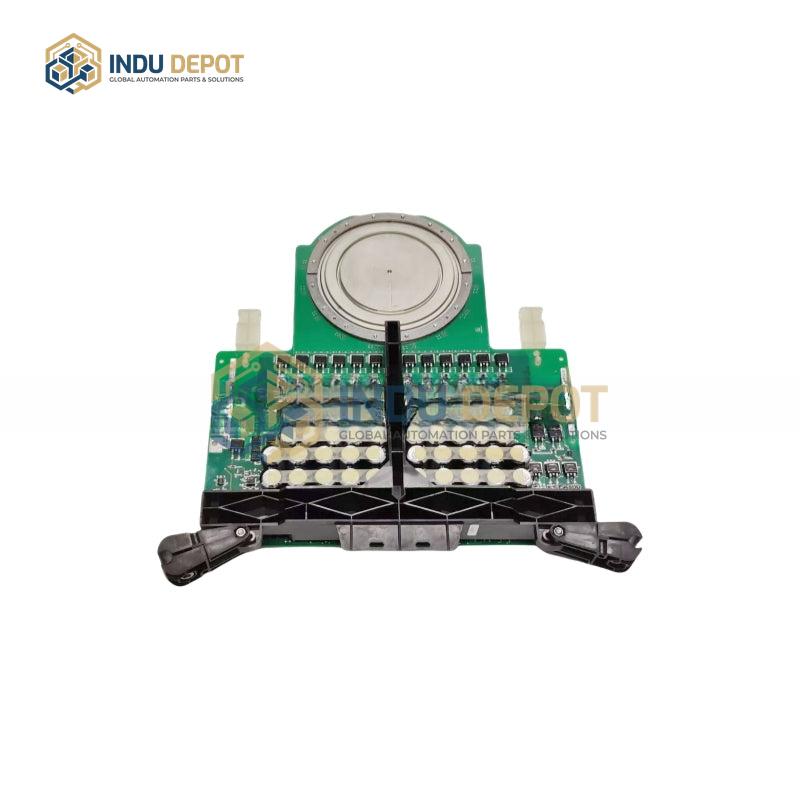

5SHY3545L0009 3BHB013085R0001 ABB Industrial IGCT Control Panel Module
Description
5SHY3545L0009 3BHB013085R0001 ABB Industrial IGCT Control Panel Module is a modular power electronics and control unit designed for high-voltage and high-current industrial applications. It integrates IGCT (Integrated Gate Commutated Thyristor) or thyristor technology to deliver fast switching, low conduction loss, and high reliability for diverse automation systems.
| Specification | Value |
|---|---|
| Rated Voltage | 4.5 kV to 45 kV, dependent on variant; 4.5 kV for medium-voltage switchgear, 45 kV for high-voltage systems |
| Rated Current | 3500 A to 4500 A, up to 6750 A |
| Rated Power | 750 W (drive module) or matching IGCT power rating, dependent on sub-model |
| Input Voltage | 24 V DC ±20% (control signals) or AC 100-240 V (drive unit) |
| Cooling Method | Natural cooling or water cooling (high-power variants) |
| Protection Class | IP20 (standard); some high-voltage variants reach IP21 to IP23 |
| Dimensions (45 kV variant) | Approximately 700 mm × 450 mm × 450 mm |
| Weight (45 kV variant) | Approximately 160 kg |
| Operating Temperature Range | -20 to 60 degrees Celsius |
Key Features:
- High reliability, compliant with IEC 60044-2 standard, with compact structure and long service life
- Fast switching capability with millisecond-level transition via semiconductor technology
- Low conduction loss enabled by IGCT/thyristor structure, improving system efficiency
- Modular design for easy installation and maintenance, with standardized wiring and status indicators
- Multi-protocol compatibility, supporting Profibus, Profinet, Modbus TCP, EtherNet/IP and other industrial communication protocols
- Strong environmental adaptability with IP20 protection, suitable for harsh industrial environments
Applications:
- High/medium-voltage switchgear for power distribution and transmission
- Motor drive systems including frequency converters and servo drives
- Traction and railway electrical systems such as electric traction and urban rail transit
- Solar inverters and new energy systems
- Industrial welding power supplies
- Robot and automated production line control units
Related Models:
- 3BHE009681R0101
- GVC750BE101
