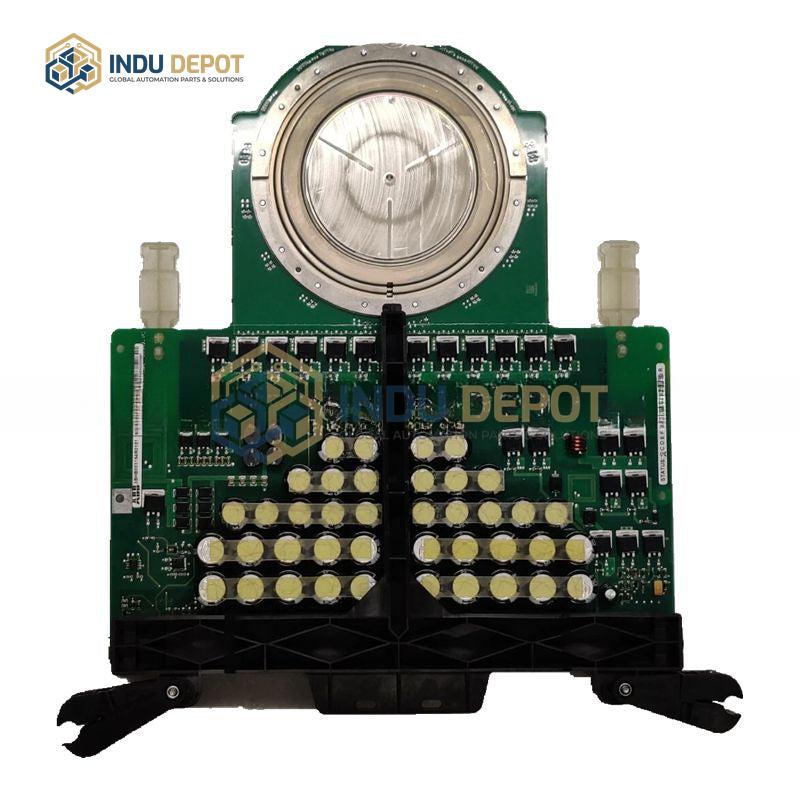

5SHY3545L0016 3BHB020720R0002 ABB IGCT Power Module
Description
5SHY3545L0016 3BHB020720R0002 ABB IGCT Power Module is a high-performance integrated gate-commutated thyristor (IGCT) module designed for high-power industrial and power system applications. It combines advanced semiconductor technology with robust packaging to deliver reliable operation in demanding environments.
| Specification | Value |
|---|---|
| Model Number | 5SHY3545L0016 3BHB020720R0002 |
| Series | 5SHY |
| Rated Voltage | 4500V |
| Package Type | TO-247 |
| Operating Temperature Range | -40 to 150 degrees Celsius |
Key Features:
- High voltage and current handling capacity for large-power applications
- Fast switching speed for high-frequency operation requirements
- Advanced packaging technology ensures high reliability in complex industrial environments
- Wide operating temperature range supports use in extreme climate conditions
- Low conduction voltage drop reduces power loss and improves system efficiency
- Integrated GTO gate drive circuit and anti-parallel diode with low-inductance gate connection
Applications:
- Power transmission and distribution systems for switch control and inverters
- Renewable energy generation including wind and solar power systems
- Industrial automation for motor control and power management
- Railway traction systems and aerospace avionics equipment
- Electric vehicles, elevators, and industrial robots
