5SHY3545L0020 ABB IGCT Power Module
Description

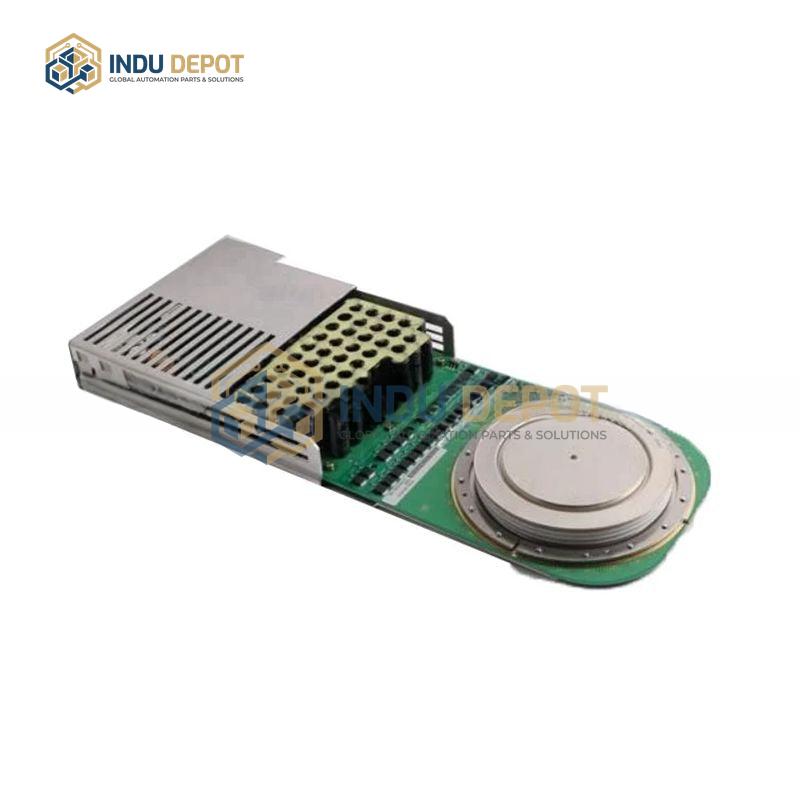

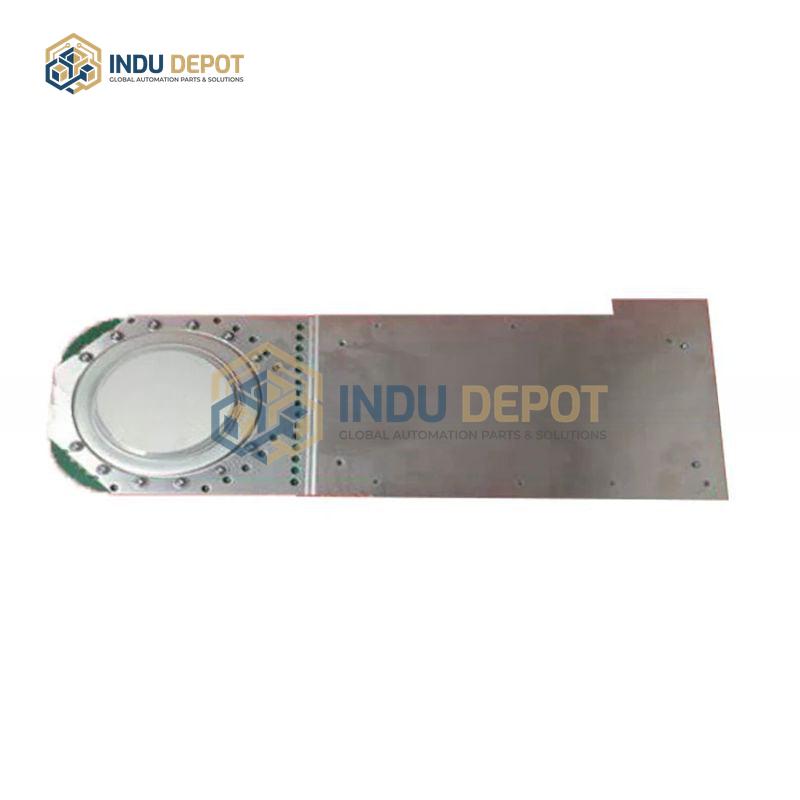

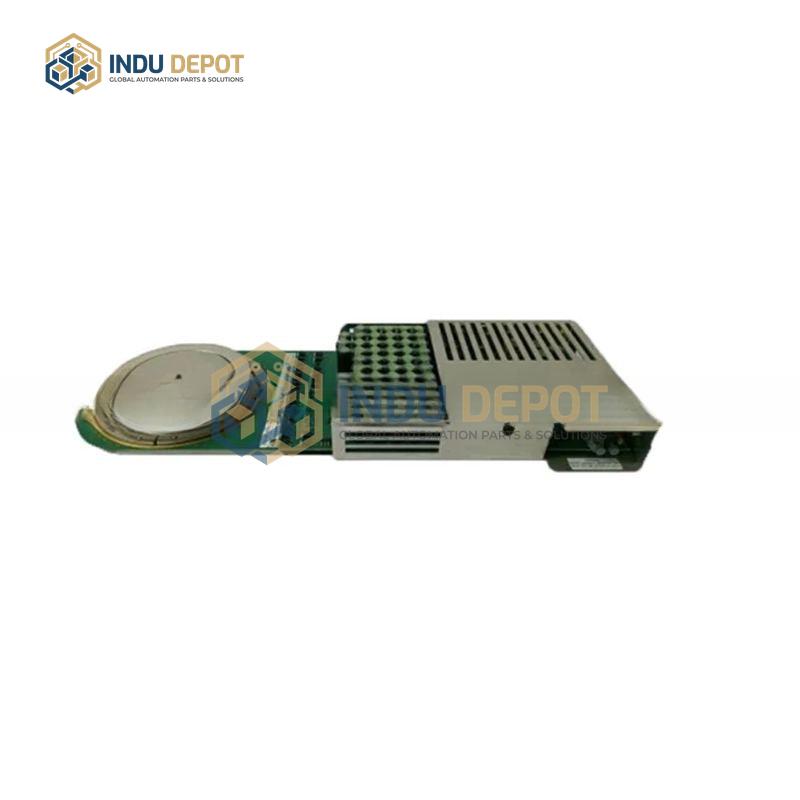

5SHY3545L0020 ABB IGCT Power Module is a high-performance integrated gate-commutated thyristor (IGCT) module belonging to ABB’s power semiconductor device series. It combines the fast turn-off characteristics of transistors with the high voltage and large current tolerance of thyristors, designed specifically for medium-high voltage, high-power power electronic applications to enable stable operation in complex power environments and precise power conversion and control.
| Specification | Value |
|---|---|
| Collector Current Capacity | Approximately 3500A |
| Operating Temperature Range | -40 degrees Celsius to +85 degrees Celsius |
| Voltage Rating | High reverse repetitive peak voltage (VDRM), suitable for medium-high voltage power systems |
| Switching Speed | Capable of current commutation rates of ≥5-6 kA/microseconds with 20V gate voltage |
Key Features:
- High-efficiency switching performance: Utilizes IGCT gate commutation technology for extremely fast on/off operation, enabling rapid current state adjustment to enhance system dynamic performance
- High reliability and stability: Manufactured with high-quality semiconductor materials and precision processes, with improved safe operating area (SOA) for high-power operation
- Low loss characteristics: Combines low conduction loss of thyristor mode operation with optimized switching loss, suitable for buffer-free operation
- Integrated gate drive design: Coaxial gate feedthrough with multi-layer PCB gate drive connection reduces required gate circuit inductance and lowers gate drive energy consumption
Applications:
- Medium-high voltage frequency converters
- Static var compensation devices
- High-voltage direct current transmission systems
- High-power industrial drive systems
- Renewable energy power conversion systems
Related Models:
- 5SHY5045L0020
- 5SHY4045LV
- 3BHE014105R0001
