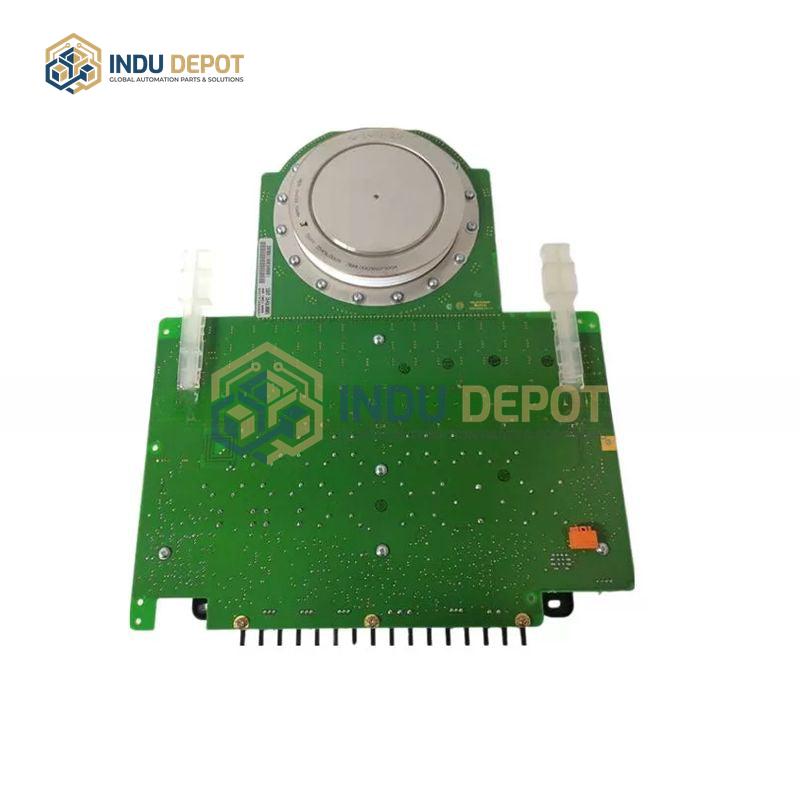

5SHYSCM240001-5SHY3545L ABB Asymmetric IGCT Module
Description
5SHYSCM240001-5SHY3545L ABB Asymmetric IGCT Module is a high-power integrated gate-commutated thyristor module from ABB’s 5SHY series, designed for medium-to-high voltage and high-current power electronic control applications. No direct technical specifications for this exact model are available, but it shares core IGCT technology that combines the high voltage/current tolerance of thyristors with the fast switching speed of transistors.
| Specification | Value |
|---|---|
| Typical Rated Voltage (Series Reference) | 4500V, 230V/400V (optional 690V) |
| Typical Rated Current (Series Reference) | 4000A, 3500A, 35A |
| Typical Peak Forward Current (Series Reference) | 6000A |
| Typical Conduction Voltage Drop (Series Reference) | 2.5V |
| Typical Operating Temperature Range (Series Reference) | -40 to 85 degrees Celsius, -25 to 70 degrees Celsius |
| Typical Protection Class (Series Reference) | IP20, IP65 |
| Cooling Methods (Series Reference) | Natural cooling, water cooling |
Key Features:
- Combines high voltage/current handling capability of thyristors with fast switching speed of transistors
- Low conduction voltage drop reduces power loss and improves energy efficiency
- Integrated design with gate drive circuits reduces stray inductance and enhances reliability
- Supports multiple cooling methods for flexible system design
- Built-in protection functions including overload, short circuit, and phase loss (series reference)
Applications:
- Industrial automation and high-power motor drive systems
- Power systems for reactive power compensation and power quality regulation
- Heavy industry including metallurgy and mining equipment control
- High-voltage direct current transmission (HVDC) and static var compensation (SVC)
- Renewable energy grid integration systems
Related Models:
- 5SHY3545L0009
- 5SHY3545L0014
- 5SHY3545L0016
- 5SHX1060H0001
