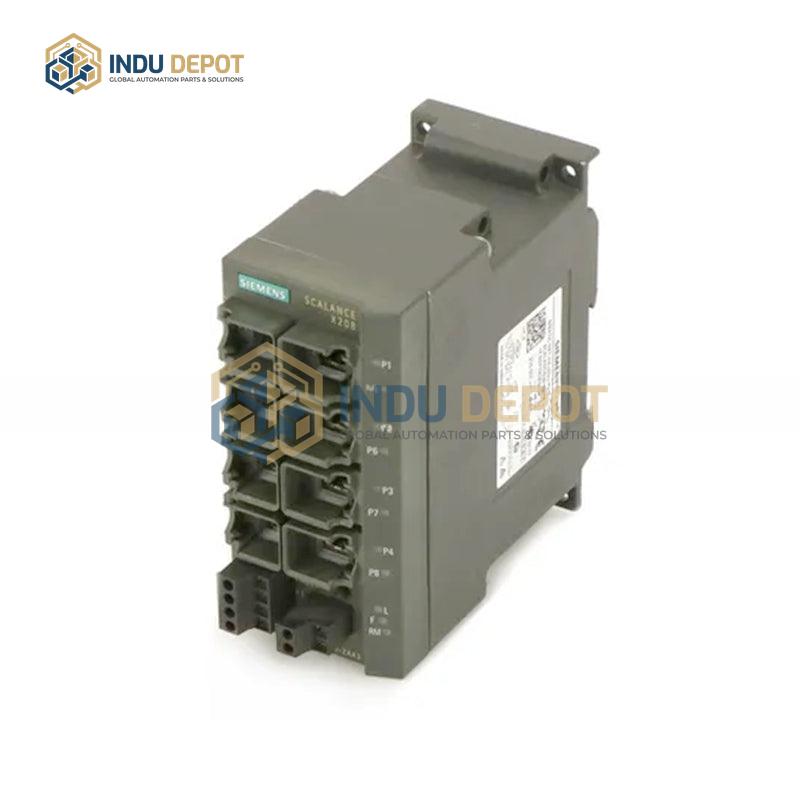

6GK5208-0BA10-2AA3 Managed IE Switch Siemens

Description

The 6GK5208-0BA10-2AA3 (SCALANCE X208) Managed Industrial Ethernet Switch is a robust networking device designed for industrial control environments. It features 8 x 10/100 Mbit/s RJ45 ports, with integrated LED diagnostics, fault signal display, and connection setup buttons for quick status checks and configuration. As a PROFINET-IO device, it supports advanced network management and includes an integrated redundancy manager to ensure reliable data transmission. It offers redundant 24V DC power inputs (18V to 32V range), with a maximum current draw of 185 mA and power consumption of 4W, and has a 0.6A/60V fuse at the power input terminal.

Additional hardware features include a 4-pin terminal block for power connection, a 2-pin terminal block for signal triggering, and an optional C-PLUG slot for configuration storage. It supports twisted pair cable lengths up to 100 meters with industrial standard cables, and operates in temperatures from -20 degrees Celsius to 70 degrees Celsius, with storage/transport temperatures ranging from -40 degrees Celsius to 80 degrees Celsius. With an IP30 protection rating, it resists dust and is suitable for use in industrial control automation, road traffic control, building automation, mining, oilfield, power system control, and room monitoring systems, delivering stable performance in harsh, high-interference settings.
