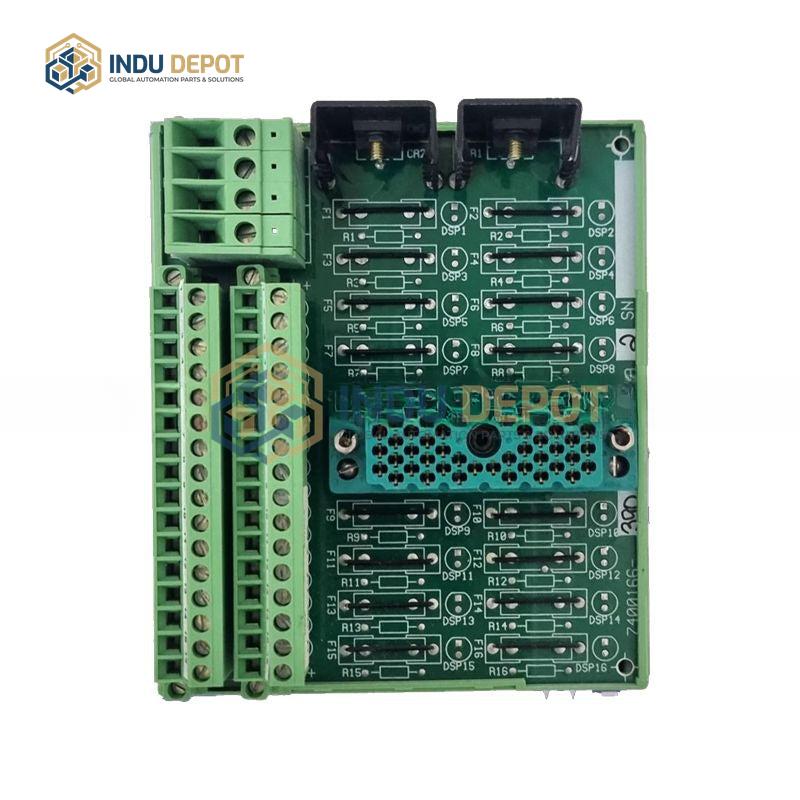

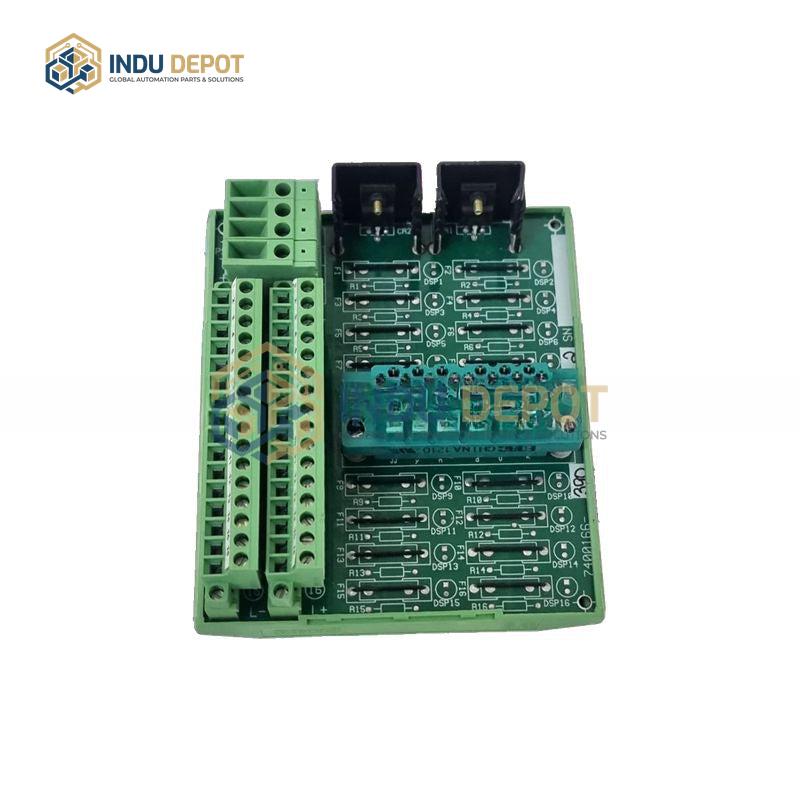

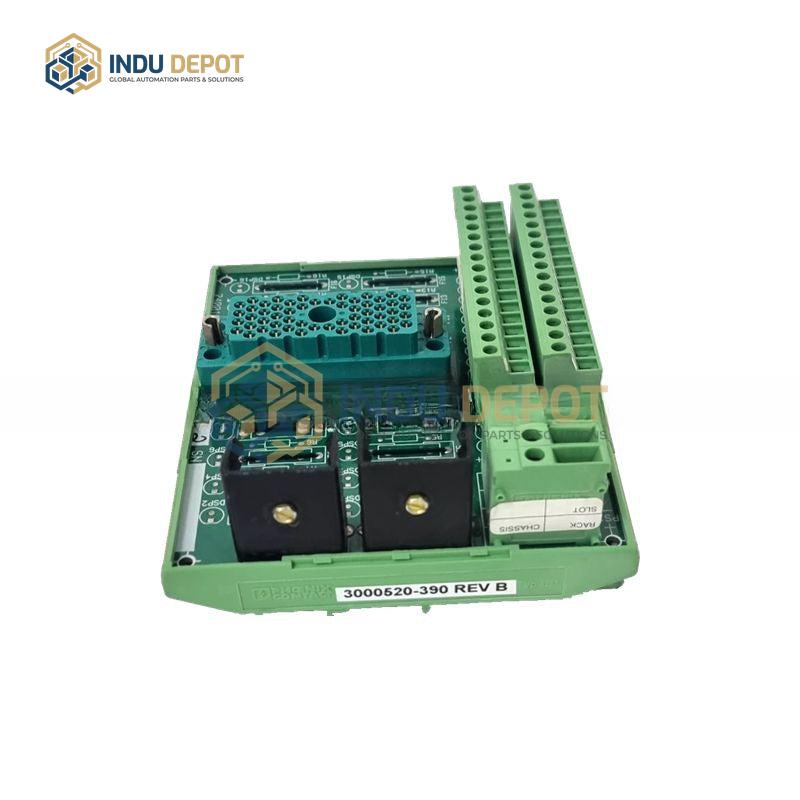

7400166 Panel Field Termination Triconex

Description

The 7400166 Panel Field Termination Triconex is a field termination panel designed for use with Triconex safety and control systems, part of the brand’s suite of industrial automation components. As a field termination solution, it functions as an electrical passive printed circuit board (PCB) assembly, engineered to simplify secure, organized connection of field wiring to Triconex I/O modules. Similar to standard Triconex termination panels, it features compression terminals compatible with 24 to 12 gauge (0.3 mm to 2.1 mm) wiring, and may include protective components like fuses with indicator lights to safeguard field wiring and equipment.

This panel supports remote field signal marshaling, allowing users to group field signals in separate enclosures up to 99 feet (30 meters) from the Tricon chassis, enhancing installation flexibility and system scalability. It enables hot-swapping of I/O modules without disrupting field wiring, reducing maintenance downtime and supporting continuous process control. While specific point counts and signal type compatibility for the 7400166 model are not specified, it aligns with Triconex’s TMR (Triple Modular Redundancy) platform standards, making it suitable for harsh industrial environments, including applications requiring SIL 1, 2, or 3 safety ratings, such as process plants, power generation, and critical manufacturing systems.
