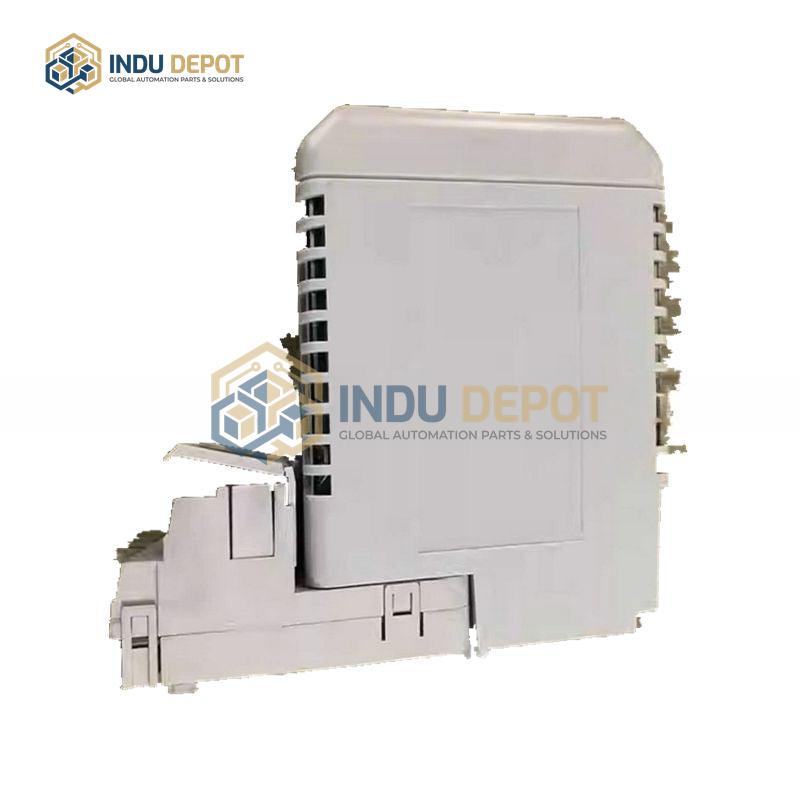

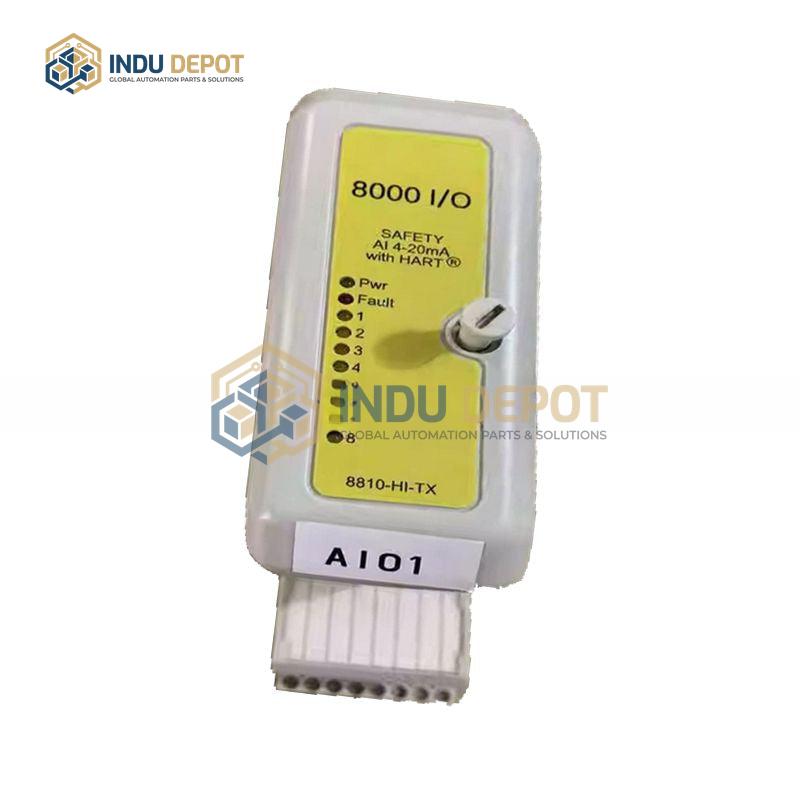

8810-HI-TX GE Analog Input Module
Description
8810-HI-TX GE Analog Input Module is a high-performance module for industrial automation and control systems, part of GE’s PAC8000 series. It converts 4-20mA analog current signals from field sensors into HART digital signals for controller processing, designed for high-precision and reliability-critical applications.
| Specification | Value |
|---|---|
| Input Signal | 4-20mA analog current signal |
| Output Signal | HART digital signal |
| Accuracy | ±0.1% |
| Response Time | Less than 10ms |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Protection Rating | IP65 |
| Channel Count | 8 single-ended channels |
| Power Supply | 24V DC |
| Dimensions | 150mm x 100mm x 60mm |
| Weight | 1.0 kg |
Key Features:
- High precision and reliability, using high-quality components for stable operation in harsh environments
- Complies with IEC 61508 standard and SIL 3 safety level, suitable for safety-critical applications
- Modular design for easy installation, replacement, and maintenance
- Standard terminal blocks and clear labeling for simplified operation
- Supports HART protocol for enhanced communication and diagnostics
- Strong expandability with support for additional analog input and communication functions
Applications:
- Oil and gas industry for process control and safety interlock systems
- Power generation and substations for parameter monitoring and control
- Metallurgy for high-temperature smelting process control
- Chemical industry for chemical production and processing monitoring
- Food and beverage industry for production process oversight
- Environmental sector for water quality and atmospheric monitoring
