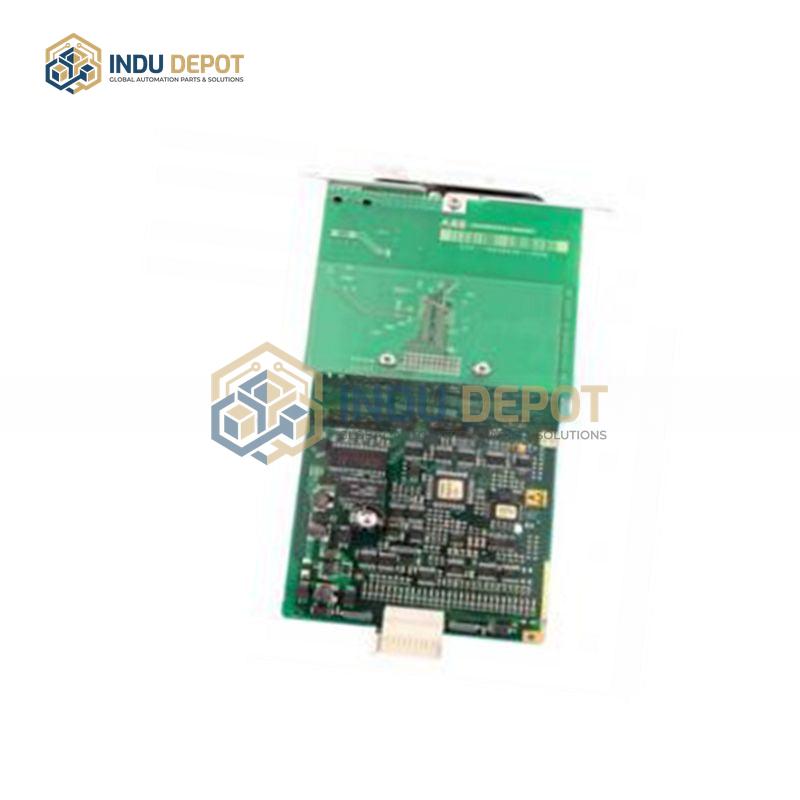

ABB 1KHW000615R0001 Precision Analog Input Module
Description
ABB 1KHW000615R0001 Precision Analog Input Module is a compact, slot-based industrial analog input module designed for seamless integration with ABB PLC systems, providing reliable high-precision signal handling for industrial automation applications.
| Specification | Value |
|---|---|
| ADC Resolution | 16/15 bits |
| Voltage Accuracy | ±0.2% |
| Current Accuracy | 0.35% |
| Operating Temperature Range | -25 to 70 degrees Celsius |
| CMRR (50-60Hz) | Greater than 60 dB |
| Maximum Voltage Input Protection | 30V DC |
Key Features:
- High-precision ADC with low long-term drift (less than ±0.1% per year) for consistent signal capture
- Electrical isolation via optocoupler circuits and channel grouping to resist strong electrical interference
- Integrated hardware protection including overvoltage protection, short circuit protection, and surge protection
- Supports programmable low-pass filtering and adjustable sampling rates for optimized signal handling
- Seamless integration with ABB AC500 and AC500-eCo CPUs via slot-based expansion
Applications:
- Continuous process monitoring in chemical, oil and gas, and power generation facilities
- Precision data acquisition for manufacturing production lines and automated assembly systems
- Environmental and equipment condition monitoring in industrial plants
