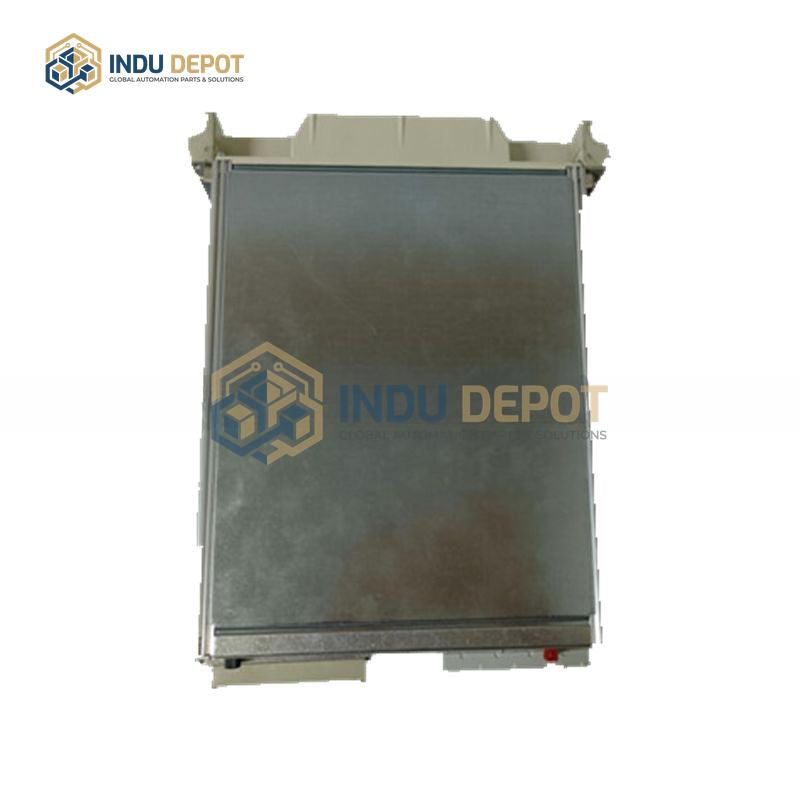

ABB 216NG62A Control Module for Industrial Automation Systems
Description
ABB 216NG62A Control Module is a digital input module designed for AC 800M industrial automation systems, providing reliable signal acquisition and control capabilities for industrial environments.
| Specification | Value |
|---|---|
| Input Type | 16-channel isolated digital input, 24 VDC |
| Input Voltage Range | 18–30 VDC |
| Operating Temperature | -25 to 70 degrees Celsius |
| Protection Class | IP20 (must be installed in control cabinet) |
| Isolation Rating | 500 Vrms between channels and channel to backplane |
| Response Time | Less than 1 ms (ON→OFF / OFF→ON) |
| Installation Type | Rail-mounted, fits AC 800M I/O backplane |
Key Features:
- Supports simultaneous execution of fast scan logic (10-20 ms for motor control) and slow scan logic (100-500 ms for analog control)
- Modular redundancy options to balance upfront costs and unplanned downtime, ensuring system availability
- Powerful alarm management and built-in system diagnostics for asset tracking of motors, drives, and controllers
- Hot-swappable when used with compatible backplanes like TB840/TB850
- Scalable platform supporting systems from 10 I/O points to 10,000 I/O points
Applications:
- Industrial motor control and analog process control systems
- High-reliability safety interlock systems for manufacturing plants
- Asset monitoring and diagnostic systems for industrial facilities
Related Models:
- ABB 216NG62A HESG441634R1
- ABB 216VC62A
- ABB AC 800M Series I/O Modules
