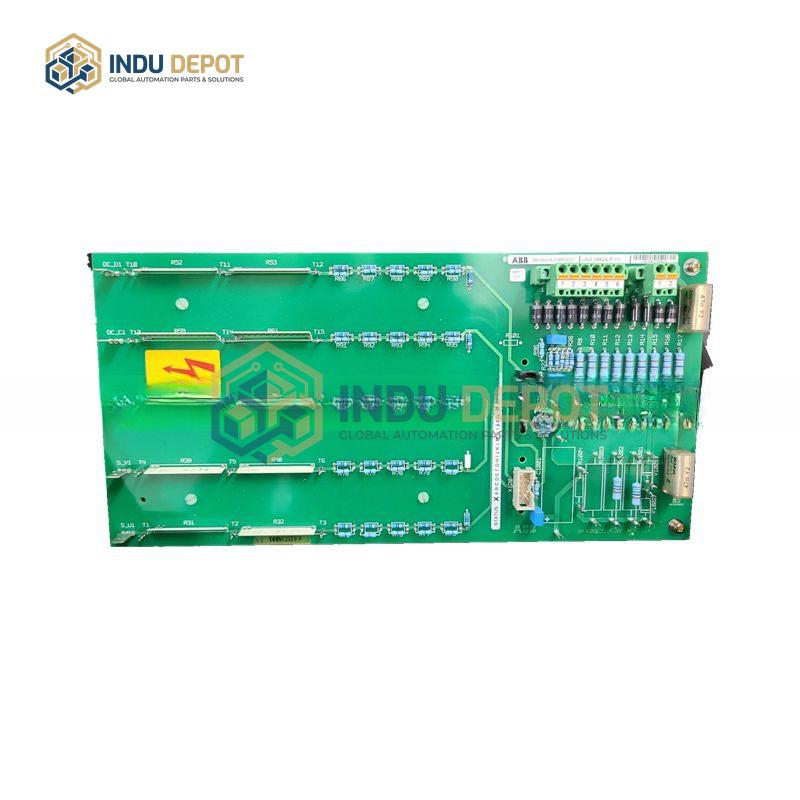

ABB 3BHB006309R0001 UNS0882A-P,V1 Power Signal Interface

Description

The ABB 3BHB006309R0001 UNS0882A-P,V1 is a 2022 new model 5 PSI Power Signal Interface, categorized as a power signal board and part of the S800 Input/Output (I/O) Module series. It supports multiple associated load capacity specifications across compatible product lines: the PFTL 101A, PFTL 101AE, and PFTL 101AER series offer 0.5kN, 1.0kN, and 2.0kN options; the PFCL 201C, PFCL 201CD, and PFCL 201CE series provide 5.0kN, 10.0kN, 20.0kN, and 50.0kN capacities.

Housed in an open ventilation plastic enclosure, the module features a front panel with at least three LEDs to indicate fault, operation, and warning statuses, with some variants adding an OSP indicator. Key protective and functional features include mechanical keying and MTU to prevent damage from excessive voltage or current, a unique electronic identification ID to block mismatched module insertion, and support for both single and redundant module configurations. Its current input channels can withstand transmitter power supply short circuits without damage, and it is compatible with HART communication. Designed for industrial automation systems, it serves as a reliable interface for power signal management in process control applications.
