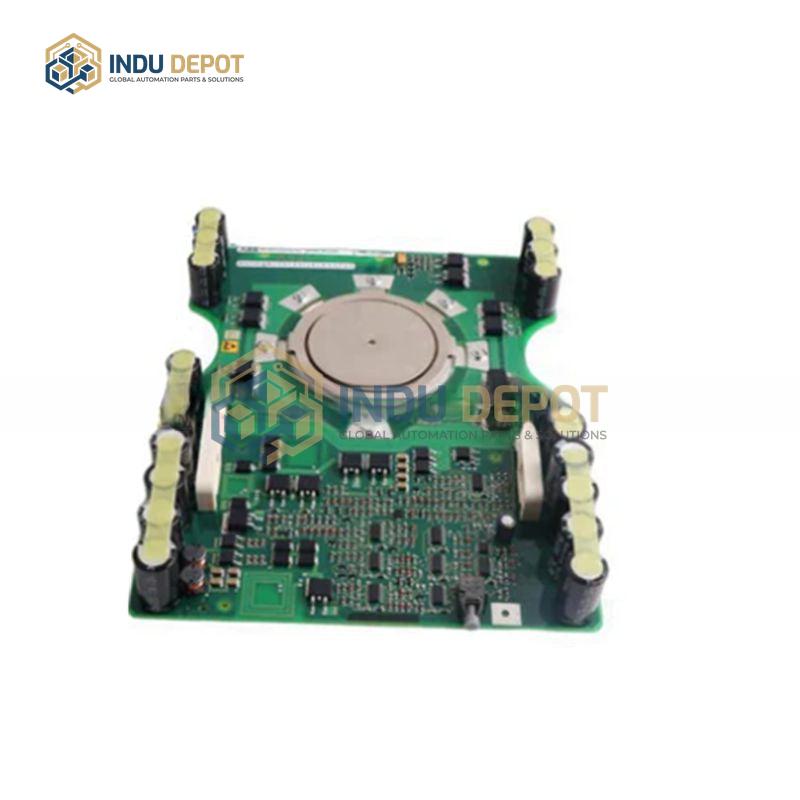

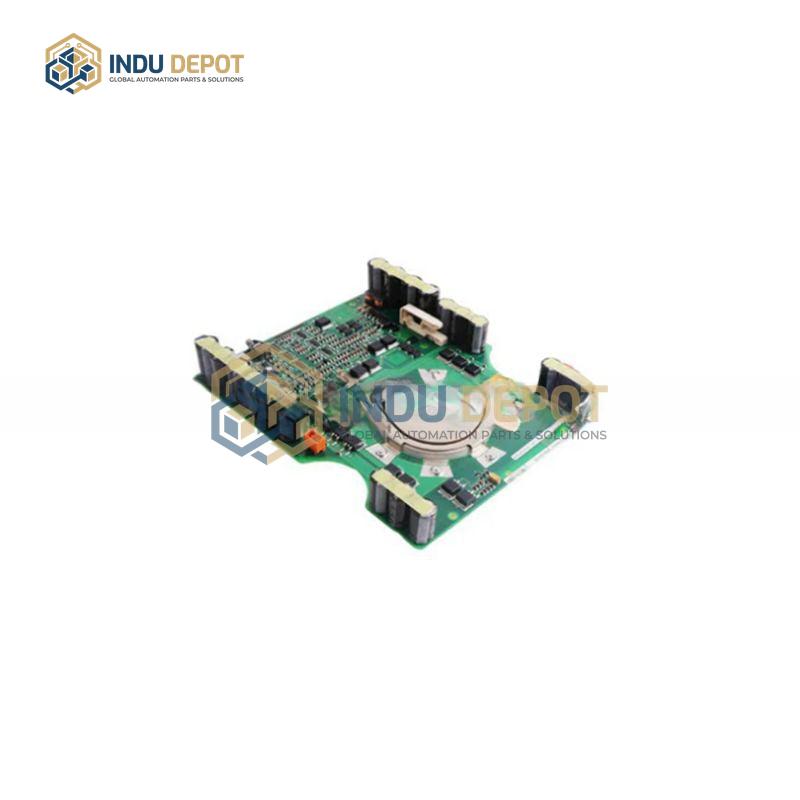

ABB 3BHB012961R0001 Integrated Gate-Commutated Thyristor (IGCT) module
Description
ABB 3BHB012961R0001 Integrated Gate-Commutated Thyristor (IGCT) Module is a high-performance power semiconductor module belonging to the ABB 5SHY series. It combines the high voltage and large current tolerance of thyristors with the fast switching characteristics of transistors, designed specifically for medium-high voltage, high-power complex power electronic applications.
| Specification | Value |
|---|---|
| Rated Voltage | 4500V |
| Rated Current | 4000A |
| Peak Forward Current | Approximately 6000A |
| On-state Voltage Drop | Approximately 2.5V |
Key Features:
- Integrates GTO chip, anti-parallel diode, and gate drive circuit, working with external gate drivers via low-inductance connections
- Uses positive feedback mechanism for efficient high-current transmission during conduction, with low on-state energy loss
- Switches to transistor mode during turn-off, stopping cathode current injection in less than 1 microsecond, eliminating cathode emitter contraction effect
- No need for protective snubber circuits, simplifying system design and improving reliability
Applications:
- Industrial drives for precise speed control of high-power motors
- Renewable energy systems for power conversion in wind and solar power inverters
- Traction systems for electric railways and electric vehicle power control
- Medium-voltage frequency converters and high-voltage direct current transmission systems
Related Models:
- ABB 3BHB017230R0001
- ABB 5SHY Series Other IGCT Modules
- ABB 5SHX2645L0002
