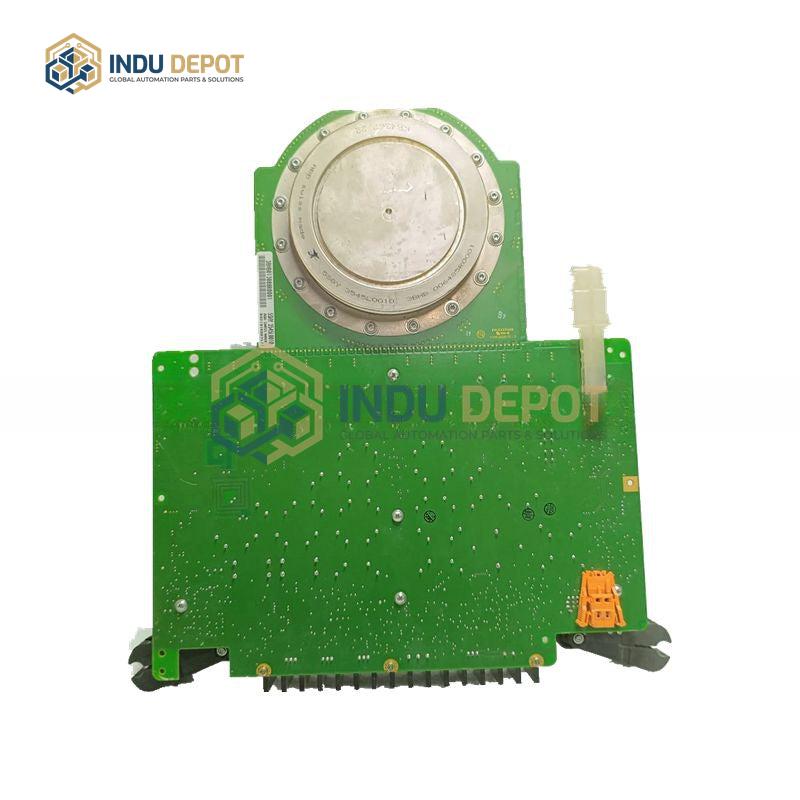

ABB 3BHE009681R0101 3BHL000986P3004 5SGY3545L0009 Power Semiconductor Module
Description
ABB 3BHE009681R0101 3BHL000986P3004 5SGY3545L0009 Power Semiconductor Module is a high-performance integrated gate-commutated thyristor (IGCT) module designed for industrial power electronics and automation systems. It is part of ABB’s 5SH/5SG series, featuring a compact modular package with a four-layer, three-PN-junction semiconductor structure.
| Specification | Value |
|---|---|
| Rated Voltage Range | 3.5kV to 6kV |
| Rated Current Range | 4.5kA to 35kA |
| Switching Frequency | ≤1200Hz |
| Operating Temperature Range | -40 degrees Celsius to 55 degrees Celsius |
| Storage Temperature Range | -55 degrees Celsius to 85 degrees Celsius |
| Dimensions | 350 mm x 225 mm x 100 mm |
| Weight | Approximately 3.4 kilograms |
| Protection Grade | IP20 |
Key Features:
- Utilizes IGCT technology for low conduction voltage drop, fast switching speed, and low power loss
- High reliability design with a service life of over 20 years, suitable for harsh industrial environments
- Compact, lightweight aluminum housing for easy installation, maintenance, and efficient heat dissipation
- Compatible with multiple communication interfaces including Ethernet and serial communication, and integrates with other ABB automation products
- Low noise operation and high interchangeability with other series modules
Applications:
- High voltage direct current (HVDC) transmission systems for submarine and land-based power lines
- Renewable energy generation systems such as solar inverter control
- Power system management including power supply regulation and motor drive control
- Industrial automation and manufacturing equipment requiring high-efficiency power transfer
Related Models:
- 5SHY3545L0010
- 5SHY4045L0001
- 5SGY3545L0010
- 3BHL000986P7000
- 3BHL00386P0101
