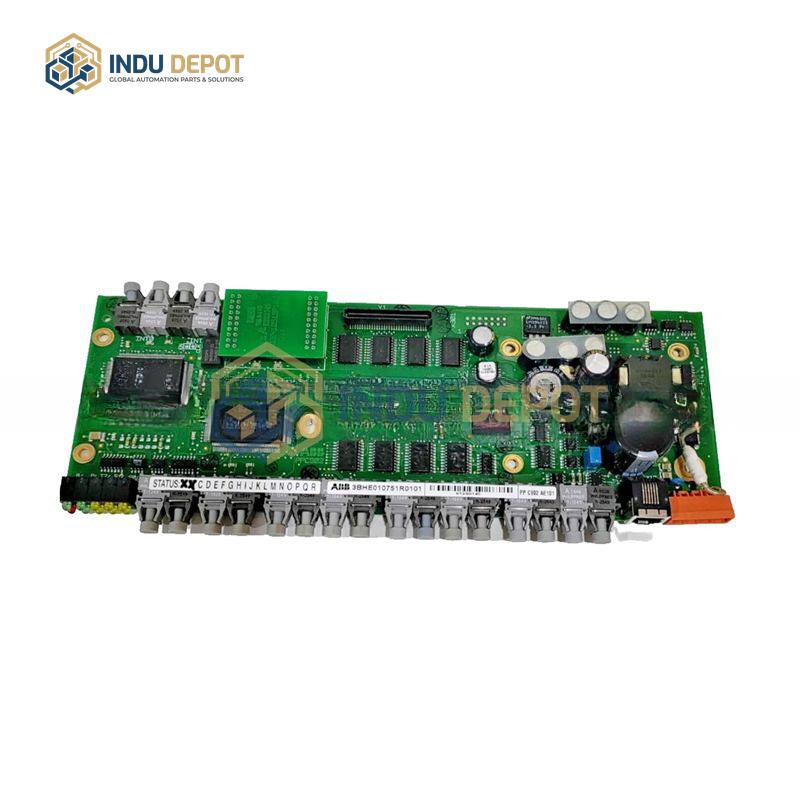

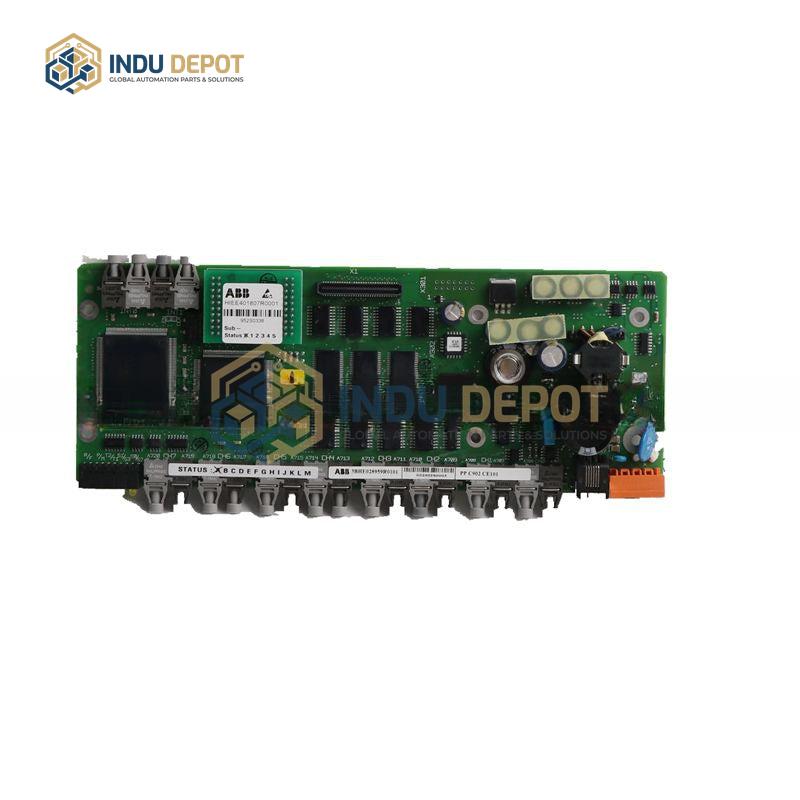

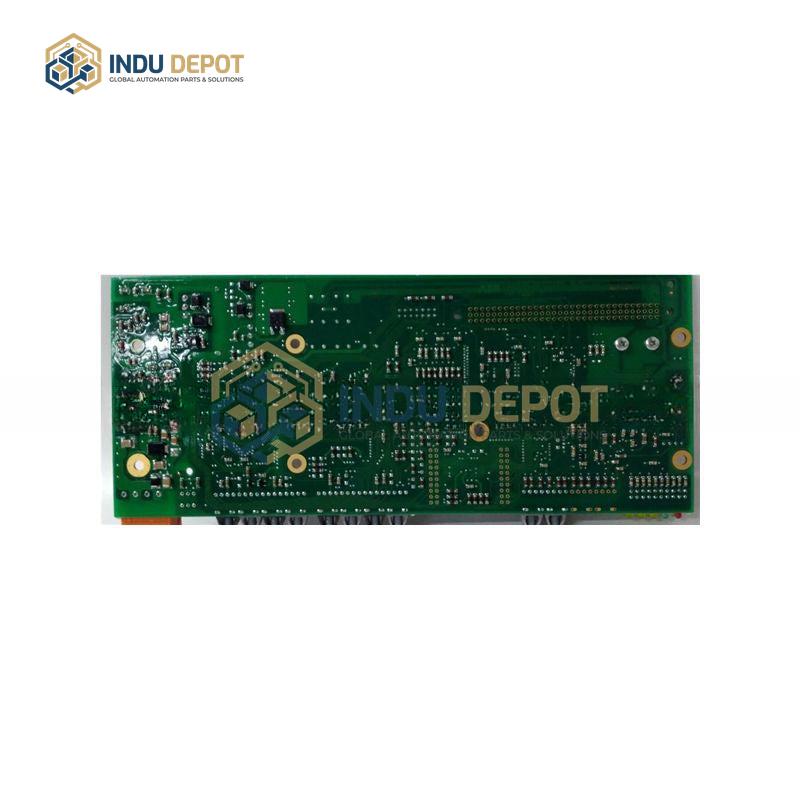

ABB 3BHE014070R0101 | PPC905AE101 Power Control
Description
ABB 3BHE014070R0101 | PPC905AE101 Power Control is a high-performance industrial automation control module designed for mission-critical process control, power management, and system integration in harsh industrial environments. It serves as a core component of ABB’s AC 800M series and 800xA Extended Automation System, delivering deterministic performance and reliable operation.
| Specification | Value |
|---|---|
| Input Voltage | 100-240V AC or 380-480V AC (three-phase) |
| Output Voltage | 24V DC |
| Output Current | 10A |
| Power Rating | 240W |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Protection Class | IP67 |
| Dimensions | 277mm x 146mm x 70mm |
| Weight | 5.2 kg |
| Processor | Intel Atom E3845 (1.91 GHz) or PowerPC architecture |
| Memory/Storage | 4GB DDR3L RAM, 32GB SSD, 64MB user memory |
Key Features:
- High-performance embedded processor for complex control algorithm execution
- Large-capacity storage and memory for data handling and program execution
- Multiple communication interfaces including Ethernet, RS-232, RS-480, and support for fieldbus protocols via expansion modules
- Industrial-grade stainless steel modular design with high reliability and durability
- Supports digital/analog I/O, motion control, and real-time deterministic control
- Seamless integration with ABB 800xA system for unified engineering and operation
- Redundancy configuration support for bumpless switchover to maximize system availability
Applications:
- Industrial automation including manufacturing lines, industrial robots, and automated production equipment
- Process control in power, metallurgy, petrochemical, and pharmaceutical industries
- Energy management for power systems, building automation, and utility infrastructure
- Transportation applications such as rail transit and marine systems
