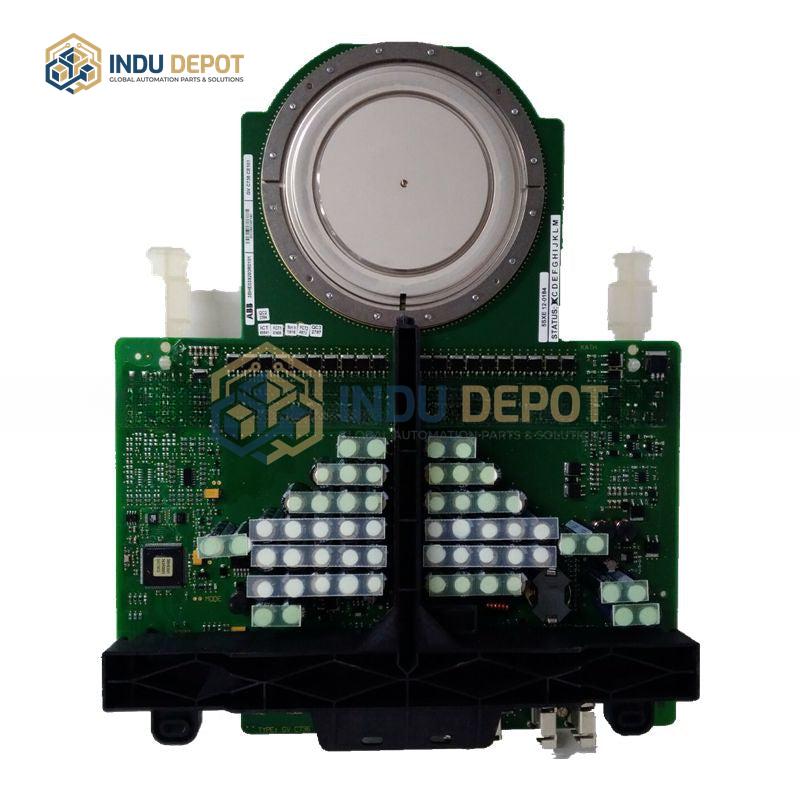

ABB 3BHE014105R0001 5SHY3545L0020 5SXE05-0154 IGCT Power Module
Description
ABB 3BHE014105R0001 5SHY3545L0020 5SXE05-0154 IGCT Power Module is a high-performance integrated gate-commutated thyristor (IGCT) module that combines the fast turn-off characteristics of transistors with the high voltage and current tolerance of thyristors. It is designed for medium-voltage, high-power power electronic applications, delivering stable operation in complex electrical environments.
| Specification | Value |
|---|---|
| Collector Current | Approximately 3500A |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Voltage Rating | High reverse repetitive peak voltage (VDRM), suitable for medium-voltage power systems |
| Switching Speed | Capable of current commutation in 1 microsecond, with di/dt up to 5-6 kA per microsecond |
Key Features:
- High-efficiency switching performance with ultra-fast current state adjustment, enabled by advanced IGCT gate commutation technology
- Enhanced reliability and stability through high-quality semiconductor materials and precision manufacturing processes
- Improved safe operating area (SOA) for hard switching, with reduced switching and conduction losses for energy efficiency
- Plug-and-play compatibility with integrated gate drive unit, requiring only a power supply and two optical fibers for control
Applications:
- Medium-voltage variable frequency drives and high-power motor control systems
- Static var compensation devices and high-voltage direct current (HVDC) transmission systems
- Industrial power conversion and grid stabilization equipment
Related Models:
- ABB 5SHY5045L0020 5SXE10-0181
- ABB 5SHY4045LV
- ABB 5SXE08-0166
