ABB 3BHE014105R0001 5SXE08-0166 high-performance control module
Description

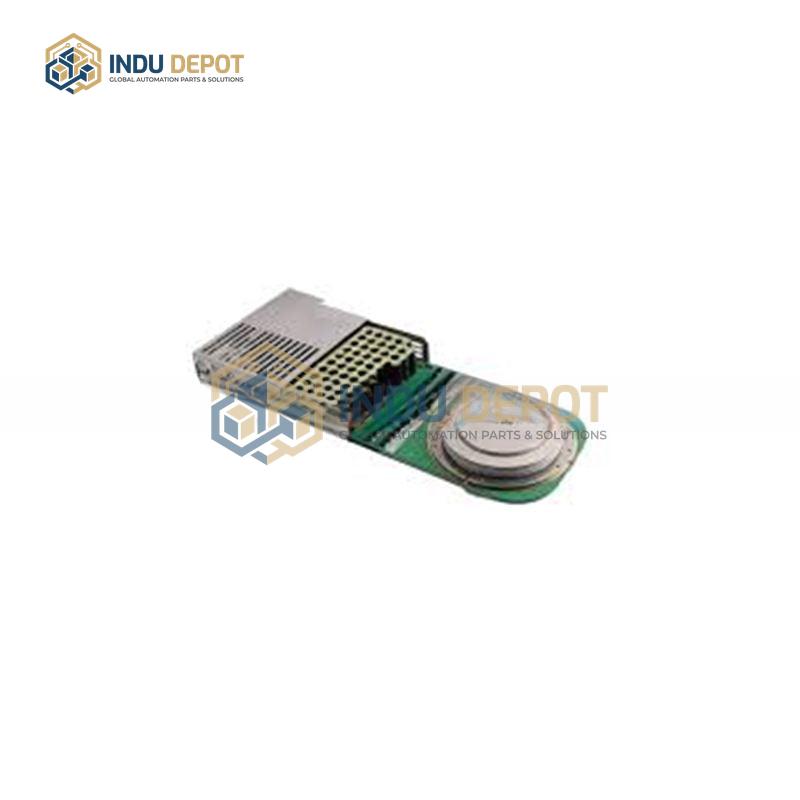

ABB 3BHE014105R0001 5SXE08-0166 is a high-performance central processing unit control module based on integrated gate-commutated thyristor (IGCT) technology, designed for heavy-duty industrial automation applications.
| Specification | Value |
|---|---|
| Product Type | IGCT Central Processing Unit Control Module |
| Rated Current | 4500A |
| Rated Voltage | 3500V |
| Switching Frequency | Hundreds of Hz |
| On-state Voltage Drop | 1.5V – 2.5V |
| Operating Temperature | -40 to 125 degrees Celsius |
| Mounting Method | Rail Mount |
| Supported Communication Protocols | Modbus RTU, Profibus, HART |
| Program Capacity | 256 kbyte |
Key Features:
- IGCT hybrid structure combines GTO high current capacity and IGBT fast switching characteristics, balancing low on-state loss and stable turn-off capability
- Dynamic loss optimization using buffer structure and shallow emitter technology reduces dynamic loss by approximately 50% to improve energy efficiency
- Built-in EMC filter circuit with isolation voltage of at least 2500V provides strong anti-interference protection for stable data transmission
- Compact modular design enables easy integration into existing industrial control systems
Applications:
- Power electronics and high-power industrial equipment control
- Rail transit and new energy power generation systems
- Automated production lines and DCS control systems
Related Models:
- 3BHE005727R1 Digital Input Module
- 3BHE005728R1 Digital Output Module
- 3BHE014557R0005 High-performance Control Module
