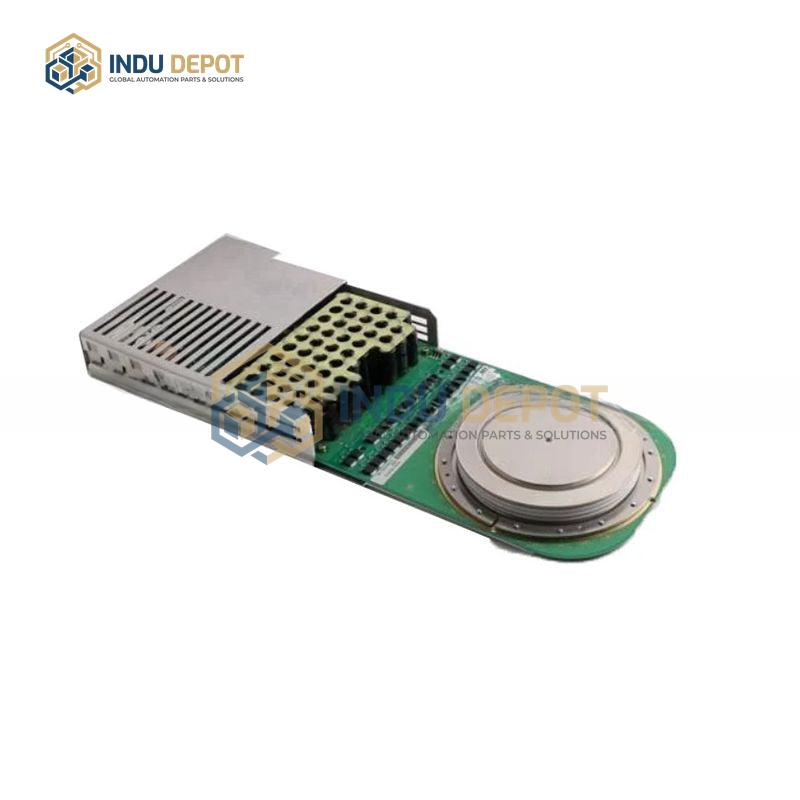

ABB 3BHE014105R0001 high-performance semiconductor module
Description
ABB 3BHE014105R0001 High-Performance Semiconductor Module is an industrial central processing unit module based on IGCT (Integrated Gate Commutated Thyristor) technology, designed as an intelligent core for high-power, high-voltage industrial control applications.
| Specification | Value |
|---|---|
| Module Type | IGCT Central Processing Unit Module |
| Rated Current | 4500A |
| Rated Voltage | 3500V |
| Switching Frequency | Hundreds of Hz |
| On-State Voltage Drop | 1.5V – 2.5V |
| Operating Temperature Range | -40 to 125 degrees Celsius |
| Packaging Form | 5SXE08-0166 |
| Working Voltage | 24V |
| Protection Rating | IP65 |
Key Features:
- IGCT hybrid structure combines high current capacity of GTO and fast switching characteristics of IGBT
- Dynamic loss optimization technology reduces dynamic loss by approximately 50% via buffer structure and shallow emitter technology
- Built-in EMC filter circuit with isolation voltage no less than 2500V to suppress electromagnetic interference
- Supports mainstream industrial communication protocols including Modbus RTU, Profibus, and HART
- Compact modular design for easy integration into existing control systems
Applications:
- Power electronics systems and high-voltage control equipment
- Rail transit traction control systems
- New energy power generation facilities such as wind and solar farms
- Large-scale industrial automation production lines
Related Models:
- ABB 3BHE005727R1
- ABB 3BHE014185R0001
- ABB 3BHE014557R0005
