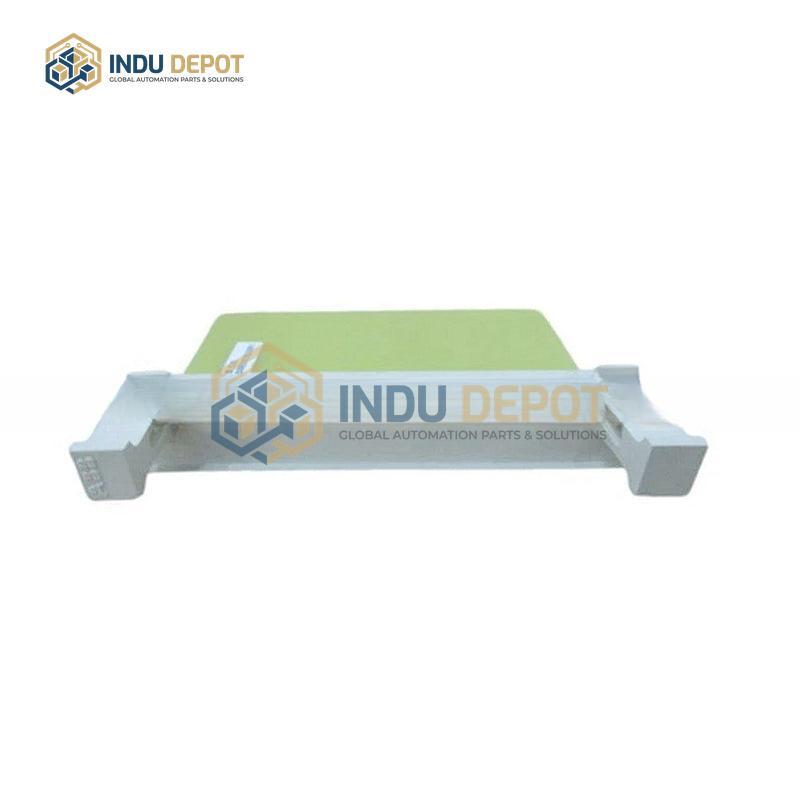

ABB 3BSE003528R1 RB520 Dummy Module For Submodule Slot
Description
ABB 3BSE003528R1 RB520 Dummy Module is an industrial automation control module, also called a dummy module, designed for submodule slots in ABB Advant OCS open control systems. Its primary function is to occupy empty slots to maintain system stability, with strong compatibility for diverse industrial automation setups.
| Specification | Value |
|---|---|
| Model Number | 3BSE003528R1 RB520 |
| Power Supply | 24VDC; Input voltage range 100-240VAC |
| Digital I/O Points | 8 digital inputs, 8 digital outputs |
| Operating Temperature | -25 to 70 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Relative Humidity | 5% to 95% |
| Dimensions | 125mm x 72mm x 120mm |
| Weight | Approximately 500g |
| Processor Speed | 800MHz |
| Memory | 2GB |
| Communication Interfaces | 2 Ethernet ports, 1 RS232 port |
| Communication Protocols | Modbus TCP/IP, Ethernet/IP, OPC UA, IEC 61850 |
Key Features:
- Slot occupation function to prevent system instability from empty submodule slots
- High compatibility with ABB Advant OCS and multiple communication protocols
- Metal housing for durability in harsh industrial environments
- Support for remote diagnostics and maintenance for simplified upkeep
- Programmable via Structured Text (ST) on ABB System 800xA operating system
Applications:
- Industrial automation system slot filling and stability maintenance
- Robot control and manufacturing production line automation
- Building automation and process control systems
- Power system equipment control and virtualization system setups
Related Models:
- ABB SC520 3BSE003816R1
- ABB RB510 Dummy Module
- ABB RB530 Dummy Module
