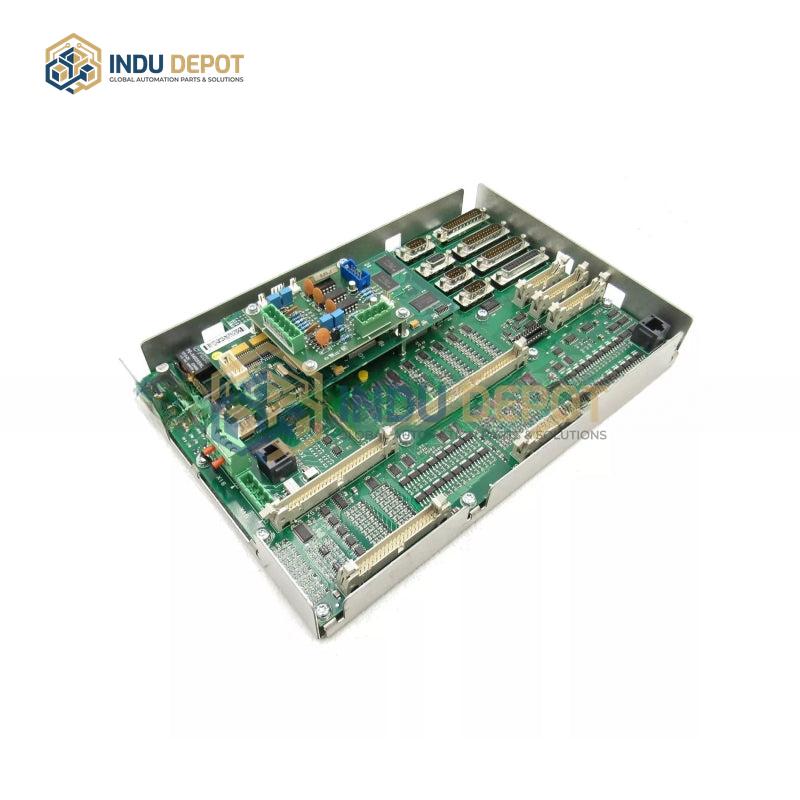

ABB 3HNA003542-001 Connector Board

Description

No direct technical specifications or product details are available for the ABB 3HNA003542-001 Connector Board. For reference, related ABB connector products offer comparable technical features and use cases. The ABB 622-2441 Board Connector is a socket-style female connector with 24 contacts arranged in 2 rows, featuring a 0.1 inch pitch, IDC terminals, and a blue polarized insulator; its physical dimensions include a 0.24 inch width, 0.661 inch depth, and 1.377 inch length, and it is not RoHS compliant. The ABB AD 300 Connector supports electrical parameters such as 500 V rated voltage, 630 A thermal current, and is compatible with 50-300 square meters Al/Cu cables and 50-240 square meters Cu cables, with torque requirements of 10-45 Nm and specified mounting dimensions for different cable sizes. Additionally, ABB offers other connector solutions like BNC coaxial connectors for RF and signal applications, and liquid-tight 45-degree elbow connectors made of iron for sealed, industrial environments. These related products are designed for industrial automation, robotics, and power transmission systems, providing reliable electrical connections in high-demand operational settings.
