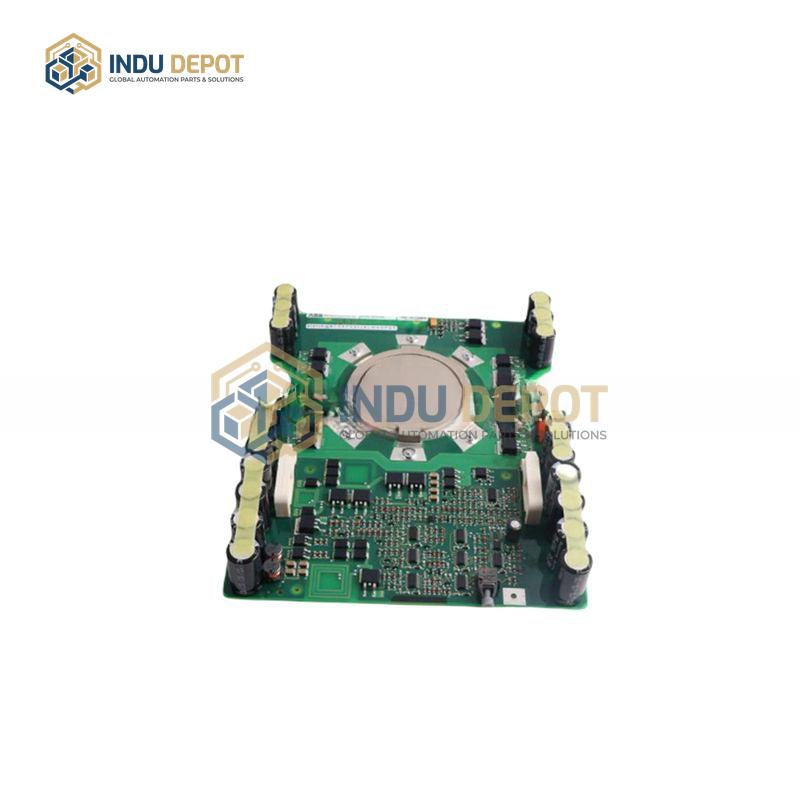

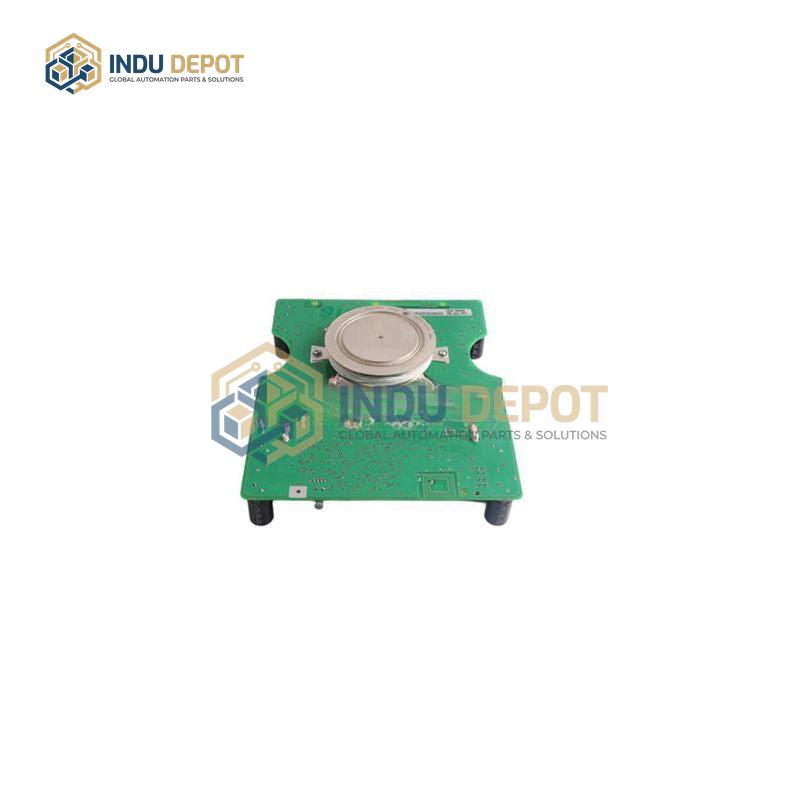

ABB 5SHX1060H0001 Integrated Gate-Commutated Thyristor
Description
ABB 5SHX1060H0001 Integrated Gate-Commutated Thyristor is a high-performance, modular IGCT power semiconductor device that combines the high blocking voltage and low conduction loss of GTOs with the fast switching speed of IGBTs, designed for high-power energy conversion and control applications.
| Specification | Value |
|---|---|
| Rated Voltage | 6500V |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Operating Temperature Range | -20 to 85 degrees Celsius |
| Cooling Method | Natural cooling or forced air cooling |
| Mounting Method | Screw fixation |
| Trigger Method | Pulse trigger |
| Turn-On Time | Approximately 200 nanoseconds |
Key Features:
- High voltage and large current handling capacity to meet high-power application demands
- Fast switching speed with low switching loss, enabling high-frequency operation
- Integrated design reduces stray inductance, improves reliability, and saves installation space
- Low conduction loss via thin silicon wafer buffer layer structure
- Fiber-optic triggered control with independent gate power supply ensures precision and reduces electromagnetic interference
- High reliability with premium materials and strict manufacturing processes for stable operation in harsh environments
Applications:
- Industrial variable frequency drives and motor control systems, including ACS series inverters
- Renewable energy systems such as wind power grid-tie and solar inverters
- High-power energy conversion equipment in rail transit, steel, and metallurgy industries
