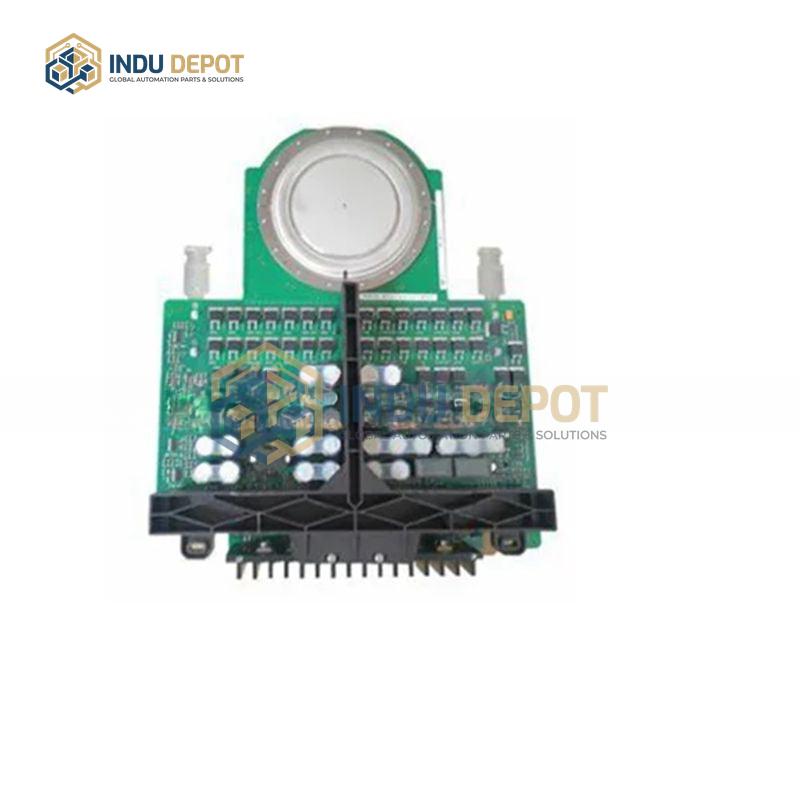

ABB 5SHY3545L0014 3BHE023784R0001 High-Quality IGCT Module
Description
ABB 5SHY3545L0014 3BHE023784R0001 IGCT Module is a high-performance Integrated Gate Commutated Thyristor module from ABB’s 5SHY series, designed for medium to high voltage, high current power systems and industrial drive applications. It combines the advantages of IGBT and GTO technologies, serving as a core power component for large control systems like ABB System 800xA and DCS.
| Specification | Value |
|---|---|
| Rated Voltage | 4500 V (4.5 kV) |
| Rated Current | 3500 A (3.5 kA) |
| Rated Power | Approximately 27 kW (single module) |
| Switching Frequency | Up to 20 kHz |
| Cooling Method | Water-cooled |
| Operating Temperature | -25 to 70 degrees Celsius |
| Overall Dimensions | 91 mm × 170 mm × 250 mm |
| Weight | 2.8 kg to 3.5 kg |
Key Features:
- Integrates IGBT and GTO advantages for fast switching and low power loss
- High reliability for harsh industrial environments with modular design for easy integration
- Low gate pulse requirements: minimum 10 mA current and 15 V voltage
- Compatible with ABB System 800xA, DCS, PLC, and other 5SHY series IGCT modules
Applications:
- Medium to high voltage industrial drives, such as mine hoists and petrochemical compressors
- Power system equipment including HVDC transmission and static var compensators
- Renewable energy systems like wind and solar power generation
Related Models:
- ABB 5SHY3545L0010
- ABB 5SHY4045L0001
- ABB 5SHY5045L0020
