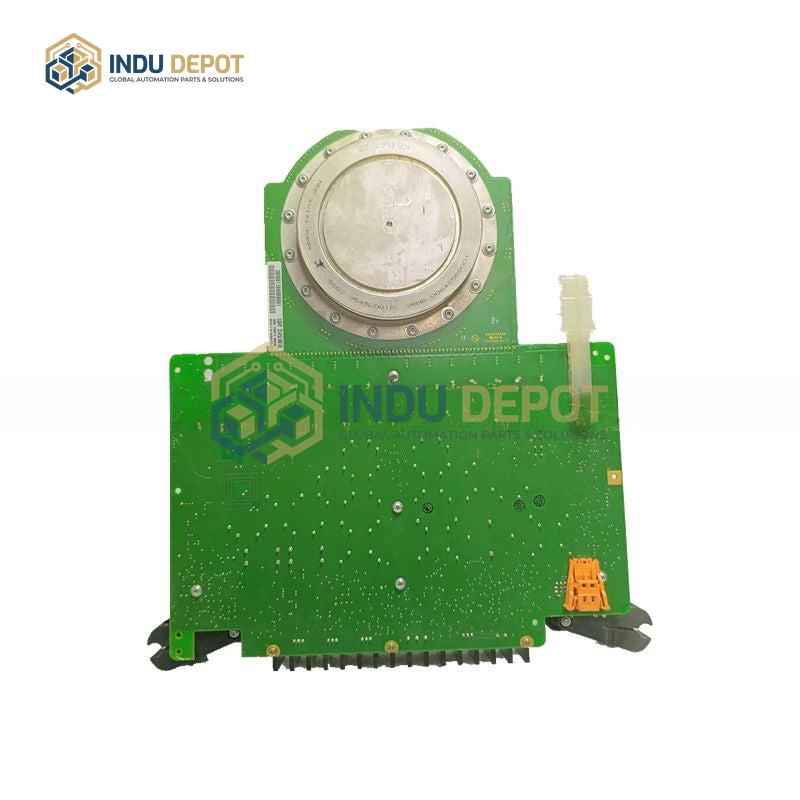

ABB 5SHY3545L0021 AC10272001R0101 Power Module
Description
ABB 5SHY3545L0021 AC10272001R0101 Power Module is a high-performance power electronic module using IGCT or IGBT technology, designed for reliable power conversion in harsh industrial environments with forced air or water cooling options.
| Specification | Value |
|---|---|
| Configurable Operating Voltage | 400V / 575V |
| Rated Current | ≤480A |
| Rated Power | 2.2kW |
| Operating Temperature Range | -20 to 70 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Protection Class | IP20 (NEMA 1) |
| Dimensions | 128mm×123mm×60mm |
| Weight | Approximately 1.2kg |
| Cooling Method | Forced air cooling or water cooling |
Key Features:
- High power density for compact power conversion with high current and voltage tolerance
- Fast switching capability suitable for high-frequency applications, reducing system size and energy consumption
- Low conduction voltage drop to improve overall energy conversion efficiency
- Advanced packaging technology for high reliability with resistance to vibration and shock
- Modular design enables quick replacement, expansion, and maintenance
Applications:
- Power control systems including current control, power factor correction, and power regulation
- Industrial heating for temperature-controlled current regulation
- Motor drives for AC motor start, stop, and speed adjustment
- Welding equipment for arc/resistance welding current and energy control
- Renewable energy systems such as wind and solar inverter power conversion
Related Models:
- ABB 5SHY3545L0009
- ABB 5SHY3545L0005
- ABB 5SHY3545L0014
- ABB 5SHY6545L0001
