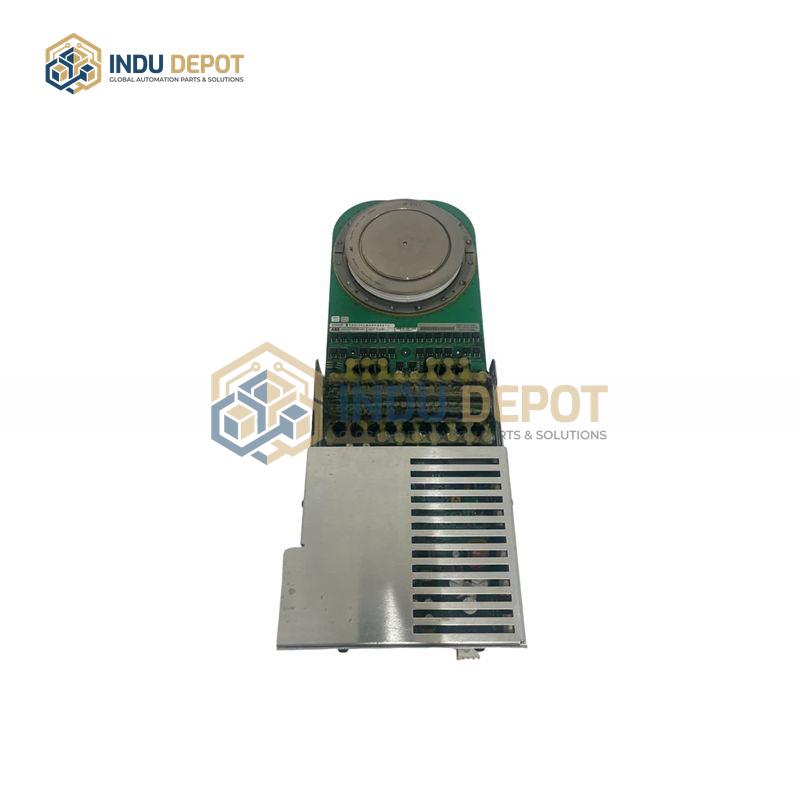

ABB 5SXE10-0181 Integrated Gate-Commutated Thyristor (IGCT) Module
Description
ABB 5SXE10-0181 Integrated Gate-Commutated Thyristor (IGCT) Module is a high-performance power semiconductor device from ABB’s power electronics product line, combining fast turn-off characteristics of transistors with high voltage and large current tolerance of thyristors, designed specifically for medium-voltage, high-power electrical applications.
| Specification | Value |
|---|---|
| Collector Current Capacity | Approximately 3500A |
| Operating Temperature Range | -40 degrees Celsius to +85 degrees Celsius |
| Reverse Repetitive Peak Voltage (VDRM) | High level, suitable for medium-voltage power systems |
Key Features:
- High-efficiency switching performance with extremely fast switching speed enabled by IGCT gate commutation technology, allowing rapid adjustment of current states
- High reliability and stability, manufactured with high-quality semiconductor materials and advanced production processes
- Supports direct series connection with small snubbers, reducing system costs while ensuring symmetric voltage balance with balancing resistors and small RC snubbers
- 1+1 redundancy can be achieved with additional IGCTs for fault mode short circuit protection, with excellent thermal cycling performance
Applications:
- Medium-voltage variable frequency drives
- Static var compensators
- High-voltage direct current transmission systems
- High-voltage inverters for power plants including hydro, combined cycle, and pumped storage facilities
Related Models:
- ABB 5SHY5045L0020
- ABB 5SHX19L6010
- ABB 5SHX14H4510
- ABB 5SHY3545L0009
