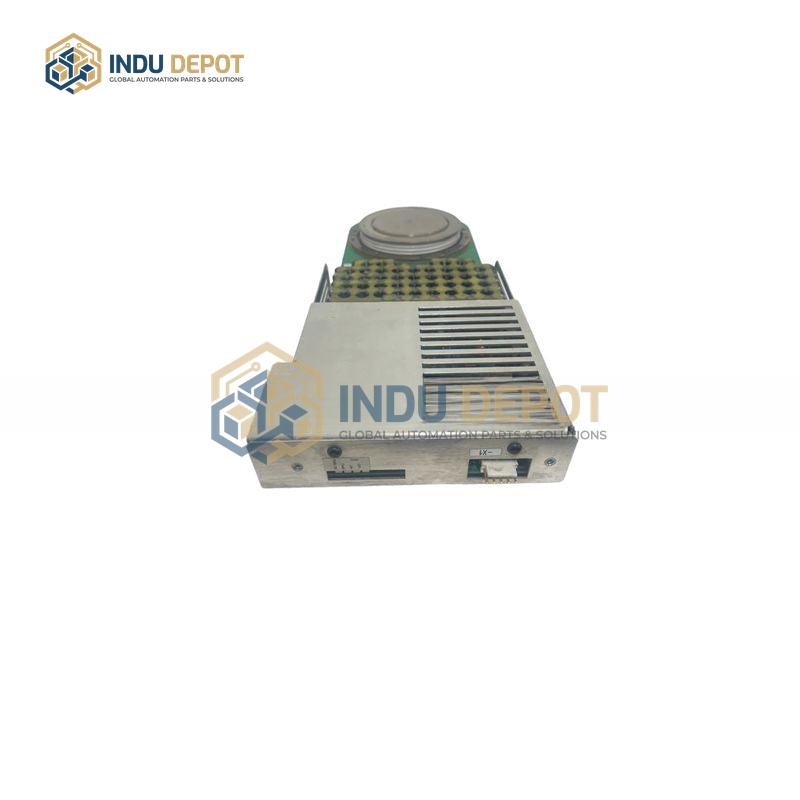

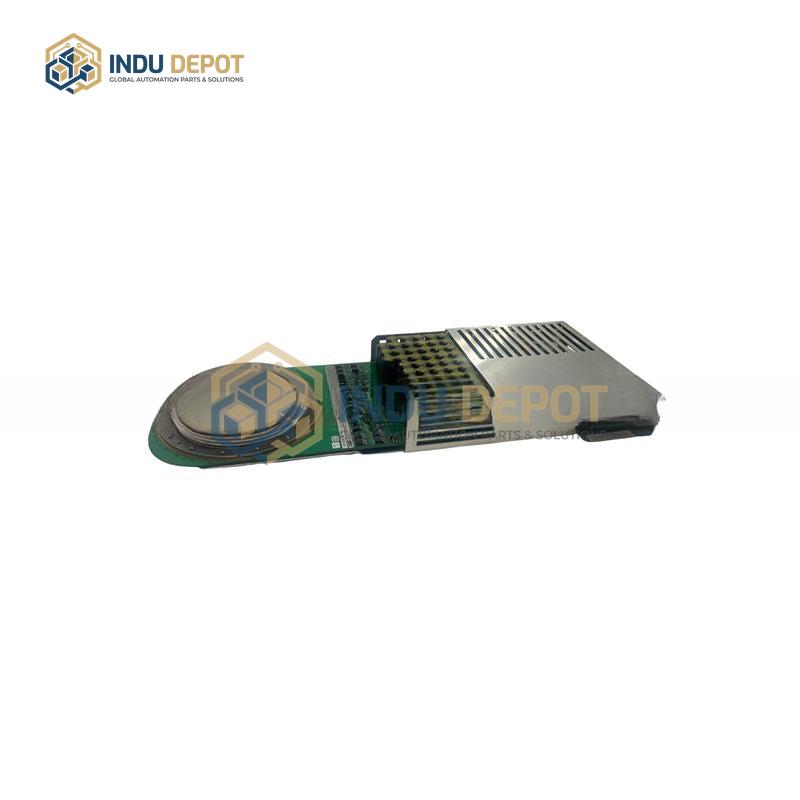

ABB AC10272001R0101 high-performance Integrated Gate-Commutated Thyristor (IGCT) module
Description
ABB AC10272001R0101 High-Performance IGBT Power Module is a versatile power conversion component available in two voltage-rated versions, optimized for medium to high voltage industrial and energy applications.
| Specification | Value |
|---|---|
| Rated Voltage | 1700V (medium-high voltage version), 6500V (high voltage version) |
| Rated Current | 450A (Tc=25C), 300A (Tc=100C) (medium-high voltage); 1000A (high voltage) |
| Switching Frequency | 0-20kHz (medium-high voltage), 2kHz (high voltage) |
| On-State Voltage Drop | 1.8V (Ic=450A, Tc=25C) (medium-high voltage); 2.5V (high voltage) |
| Junction Temperature Range | -40 to 150 degrees Celsius (medium-high voltage); -40 to 175 degrees Celsius (high voltage) |
| Dimensions & Weight | 140mm×110mm×22mm, 500g (medium-high voltage); 300mm×250mm×150mm, 15kg (high voltage) |
Key Features:
- High energy efficiency: Trench-Gate technology reduces switching losses by over 15% compared to traditional modules
- Superior thermal stability: Direct Bonded Copper (DBC) substrate improves heat transfer efficiency by 30%
- Integrated protection: Built-in overcurrent, short circuit, and junction temperature monitoring with microsecond-level response
- Flexible integration: Supports multiple communication protocols for seamless system connectivity
Applications:
- Power electronic systems including high voltage direct current (HVDC) transmission and high voltage frequency converters
- Industrial control equipment such as motor drives and metallurgical high-frequency heating devices
- Energy management applications like photovoltaic inverters and industrial frequency converters
Related Models:
- ABB 5SHY35L4520
- ABB 5SHY5045L0020
- ABB 3BHE024415R0101
