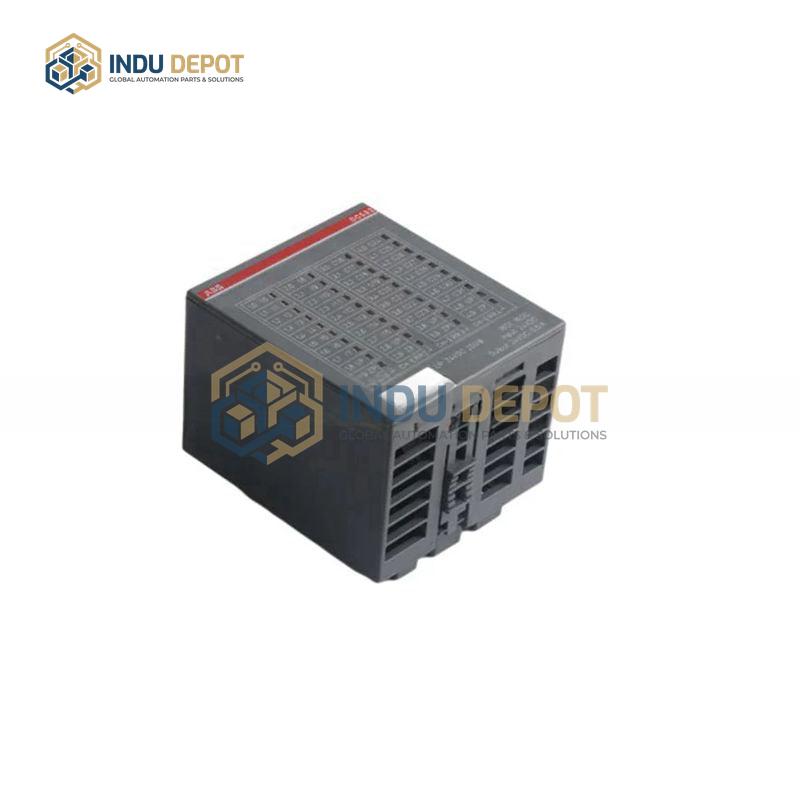

ABB AI531 Analog Input Module
Description
ABB AI531 Analog Input Module (1SAP250600R0001) is a versatile S500 series I/O module for AC500 PLC systems, designed to collect multiple types of analog and digital input signals from industrial processes.
| Specification | Value |
|---|---|
| Product Number | 1SAP250600R0001 |
| Analog Input Channels | 8 |
| Supported Input Types | Voltage (U), Current (I), RTD, Resistance (R), Thermocouple (TC), Digital Input (DI) |
| Resolution | 16 bits |
| Power Supply | 24 volts DC |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 70 degrees Celsius |
| Net Dimensions (LxWxH) | 62 mm x 67.5 mm x 76 mm |
| Net Weight | 0.128 kg |
Key Features:
- Multi-signal support for voltage, current, temperature, resistance, and digital inputs in a single module
- 16-bit resolution for high-precision signal conversion
- Compact design suitable for dense industrial control panel installations
- 1 to 4-wire input configuration flexibility for different sensor types
Applications:
- Industrial process monitoring and control systems
- Manufacturing lines for collecting temperature, pressure, and flow signals
- Building automation systems for sensor data acquisition
- Energy management systems for tracking electrical and thermal parameters
