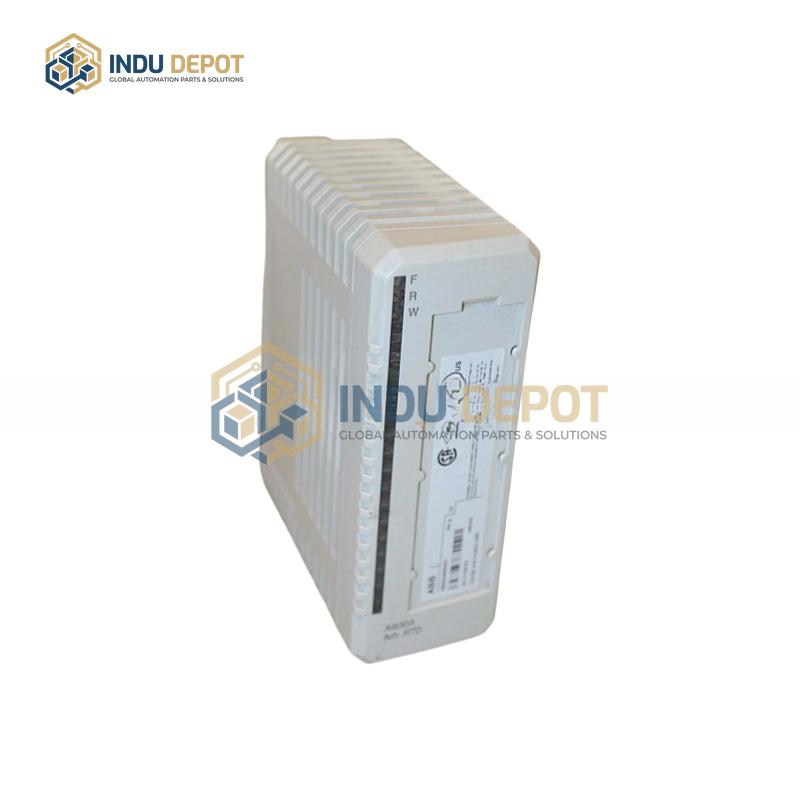

ABB AI830 Analog Input Module S800 I/O System
Description
ABB AI830 Analog Input Module S800 I/O System is a high-performance analog input module belonging to ABB’s AC800M series controller I/O module family, designed for precise industrial data collection and integration with distributed process control systems.
| Specification | Value |
|---|---|
| Number of Channels | 8 RTD input channels |
| Connection Type | Three-wire connection to RTDs |
| Resolution | 14 bits |
| Compatible Sensors | Pt100, Cu10, Ni100, Ni120, resistive sensors |
| Temperature Processing | On-module linearization and conversion to degrees Celsius or Fahrenheit |
| Input Monitoring | Open circuit, short circuit, and input ground sensor monitoring |
| Power Frequency Filter | Configurable 50Hz or 60Hz notch filter via MainsFreq parameter |
| Operating Temperature | -20 to 60 degrees Celsius |
| Power Supply | 24V DC (typical) |
| Protection Rating | IP20 |
Key Features:
- Supports multi-channel analog input for standard industrial signals including RTDs, thermocouples, 4-20mA, and 0-10V
- Channel-level configuration flexibility for diverse sensor types
- Integrated input fault detection to ensure data reliability
- Hot-swappable and modular design for easy system expansion and maintenance
- Compatible with ABB and third-party process controllers via industrial fieldbus
Applications:
- Process variable monitoring (temperature, pressure, flow) in chemical, power, and metallurgy industries
- Manufacturing production line environmental and equipment parameter tracking
- Energy management system data collection and analysis
