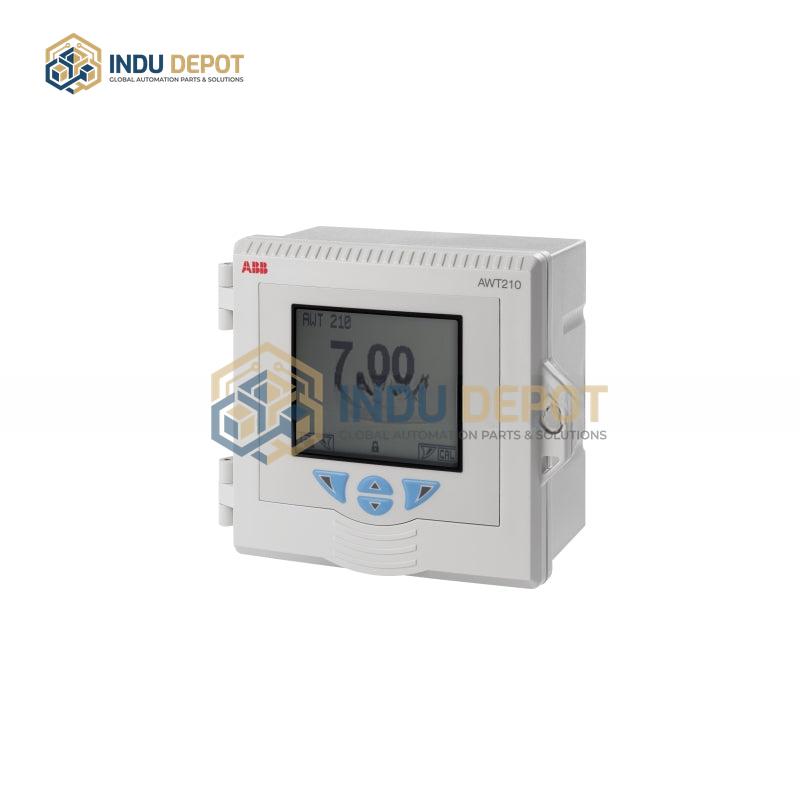

ABB AWT210 2-Wire Conductivity, pH/ORP pION Transmitter

Description

The ABB AWT210 2-Wire Conductivity, pH/ORP pION Transmitter is an intrinsically safe, 2-wire universal single-channel transmitter designed for use in both hazardous and non-hazardous areas. It supports versatile measurement parameters including pH/ORP, 2-electrode conductivity, 4-electrode conductivity, ring conductivity, and customizable user-programmable pION inputs. Key features include intuitive software, advanced self-diagnostic capabilities, and a plug-and-play modular design that reduces process downtime and boosts operational efficiency. A “Easy Setup” menu provides step-by-step guidance, while multi-level security access prevents unauthorized modification of process control data. The transmitter offers flexible data management: it can securely archive data to an SD card and directly connect to smart devices, with support for HART, Ethernet, PROFIBUS, or MODBUS digital communication protocols. It has a protection rating of IP66 / NEMA 4X, with dimensions of 144 mm (5.67 inches) x 144 mm (5.67 inches) x 99 mm (3.89 inches), and weighs 1.04 kg (2.3 lbs) with an aluminum housing or 0.7 kg (1.5 lbs) with a polycarbonate housing. Terminal connections support AWG 26 to 14 (0.14 to 2.5 square meters), and it can be installed via wall-mounted, panel-mounted, or pipe-mounted configurations.
