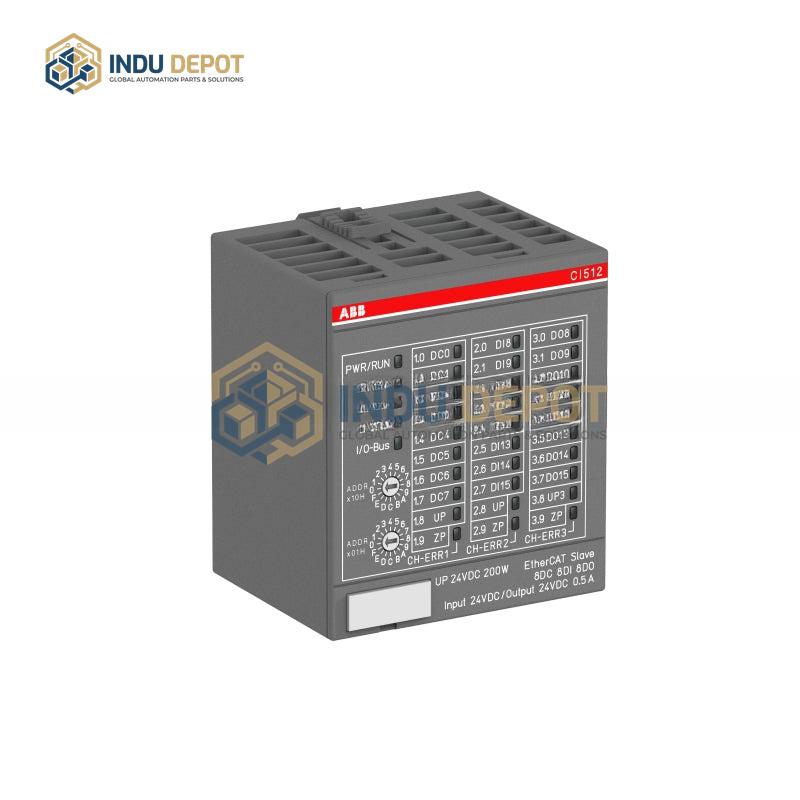

ABB CI512-ETHCAT EtherCAT Bus Module

Description

The ABB CI512-ETHCAT EtherCAT Bus Module is a distributed bus module belonging to the AC500 series, with material code 1SAP221000R0001. It integrates 8 digital inputs (DI), 8 digital outputs (DO), and 8 digital combined (DC) channels, with DO featuring transistor-type outputs. Equipped with a standard RJ-45 bus interface, the module supports distributed expansion, allowing connection of up to 10 local expansion modules to scale I/O capabilities for industrial automation setups. Operating at a voltage of 220V and an output frequency of 60Hz, it is designed for reliable performance in real-time Ethernet-based control systems. As an EtherCAT-compatible device, it enables high-speed, deterministic communication between controllers and field devices, making it suitable for applications requiring precise, synchronized control such as manufacturing lines, material handling systems, and automated process equipment. Its compact, integrated design streamlines installation and reduces wiring complexity in distributed automation architectures.
