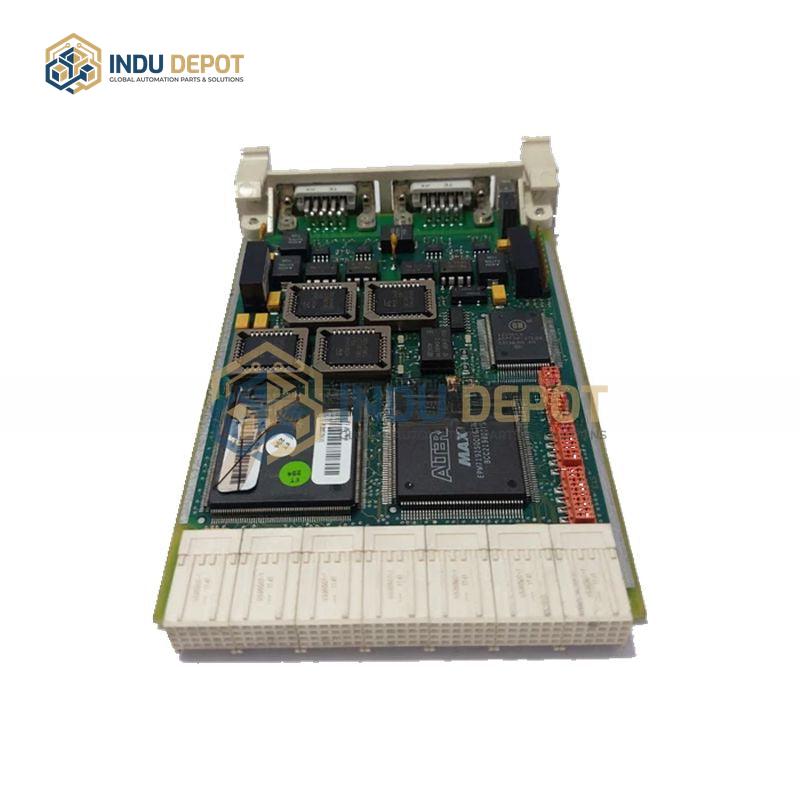

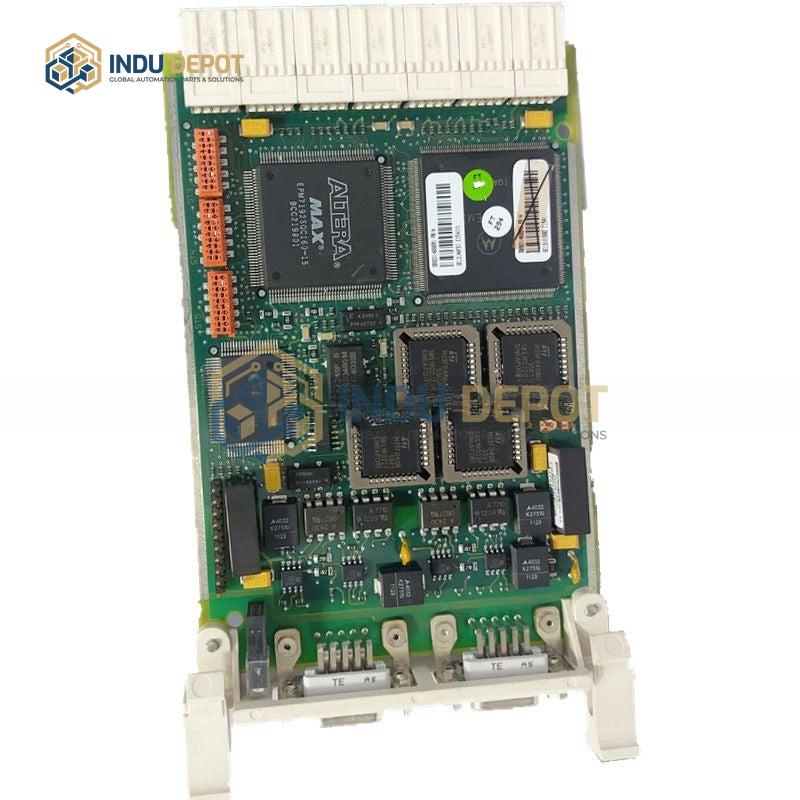

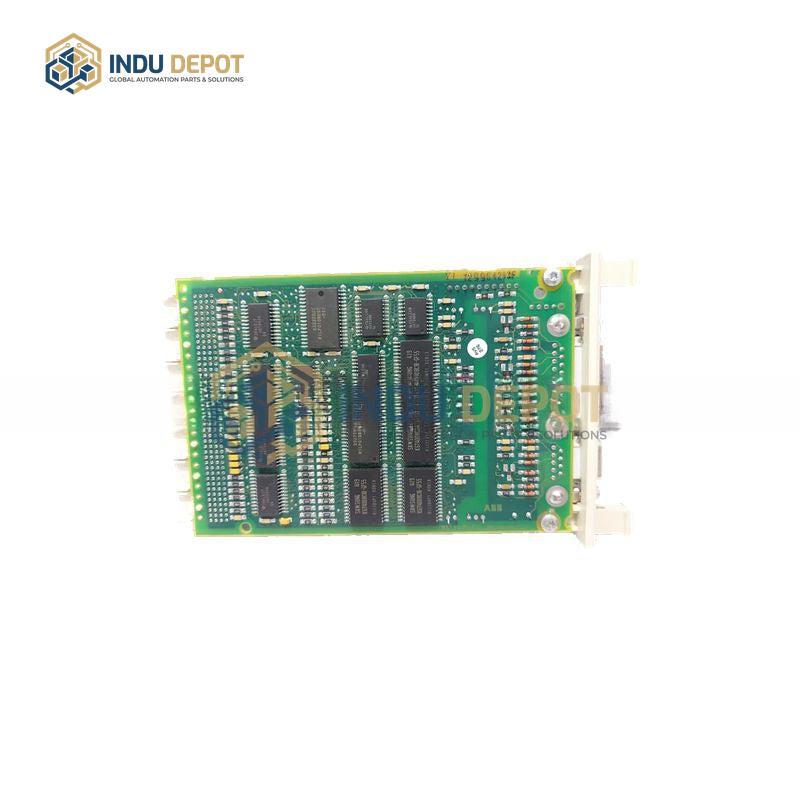

ABB CI541V1 Profibus Interface Submodule Communication Component
Description
ABB CI541V1 3BSE014666R1 Profibus Interface Submodule is a communication component designed for industrial automation systems, enabling high-speed, stable data transfer between PLC controllers and Profibus DP networks. It is part of the ABB S800 I/O series, supporting both master and slave modes for flexible system integration.
| Specification | Value |
|---|---|
| Power Supply Voltage | 24V DC |
| Operating Temperature | -20 to 60 degrees Celsius |
| Humidity Range | 0% to 95% (non-condensing) |
| Dimensions (LxWxH) | 255mm x 125mm x 20mm |
| Net Weight | Approximately 0.2 kg |
| Protection Rating | IP20 |
| Communication Protocol | Profibus DP |
| Maximum Baud Rate | 12 Mbps |
| Maximum Node Count | 31 |
Key Features:
- Supports both Profibus DP master and slave modes for flexible system configuration
- High-speed data transmission up to 12 Mbps for real-time control and monitoring
- Hot-swappable design allows module replacement during system operation
- Built-in programmable LED indicators for real-time communication status and fault diagnosis
- Industrial-grade construction for reliable operation in harsh environments with vibration and temperature fluctuations
- Standard DIN rail mounting (EN 50022 NS35/7.5) for easy installation and maintenance
Applications:
- Manufacturing: Automated production lines in automotive and electronics industries
- Energy and Power: Monitoring and protection systems in power plants and substations
- Petrochemical: Process control and safety interlocks in refineries and chemical plants
- Water Treatment: Equipment linkage and data collection in wastewater treatment facilities
- Transportation: Railway signal control and airport baggage handling systems
Related Models:
- CI522A
- CI534V02
- CI542
