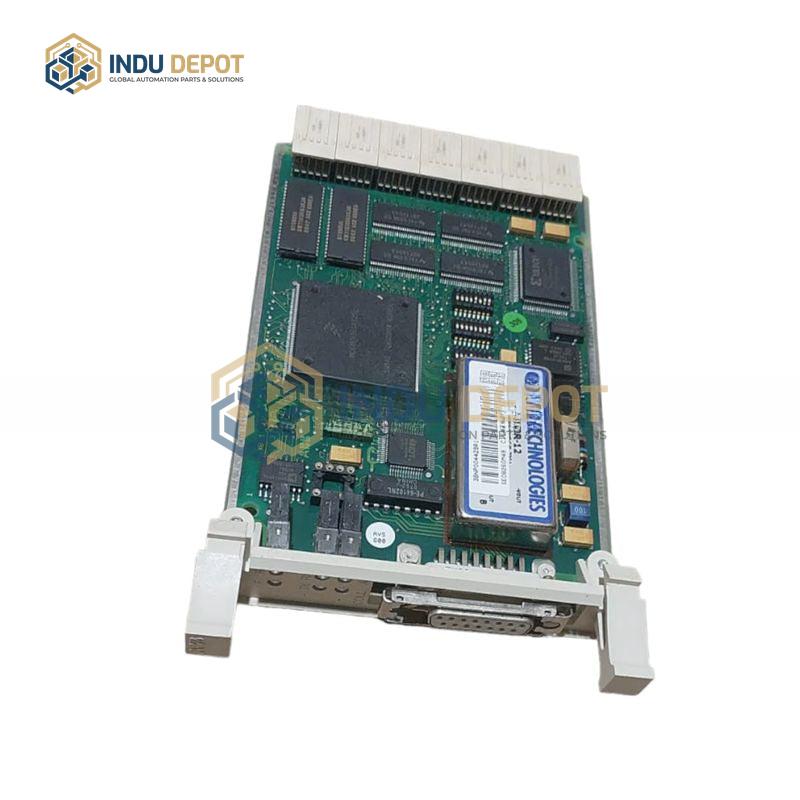

ABB CI547 – 3BNP004429R1 Industrial Control Module

Description

The ABB CI547 – 3BNP004429R1 Industrial Control Module is a PLC/DCS card module designed for industrial control systems. It features simplified batch parameter management, supporting batch management via Excel through a desktop computer interface batch spreadsheet recipe scheduling tool, which is not required when ordering the batch planning interface. The module integrates with engineering workspaces, enabling compatibility with other clients for AC 800M control configuration, batch data processing, graphic configuration, document management, parameter management, I/O assignment, and professional script manager functions; the basic system includes one client for these operations. As a serial I/O module, it offers convenient configuration, with a modular structure for control room installation. Key technical specifications include support for Profibus DP-V1 master or slave communication protocol, 2 master channels, transmission speeds ranging from 9.6 kbit/s to 12000 kbit/s, a normal operating voltage of 210V, output frequency of 55, data capacity of 64k, and EU product certification. It operates in environments with temperatures up to 55 degrees Celsius and humidity from 0 to 95 percent, with a weight of 0.165 kg and external dimensions of 10.2 cm x 7.6 cm x 12.7 cm.
