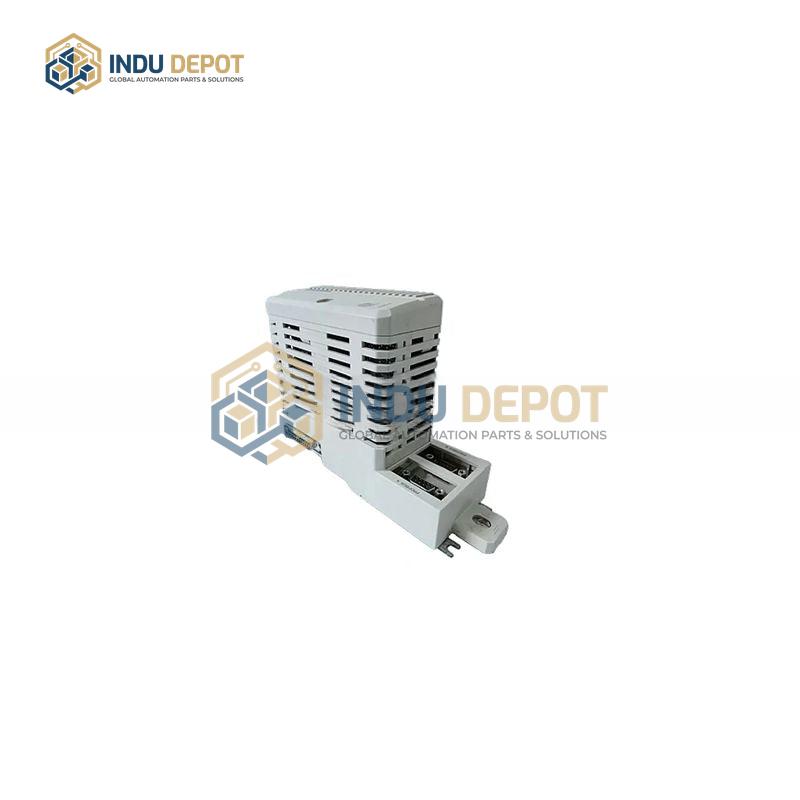

ABB CI854AK01 PROFIBUS-DP/V1 Interface
Description
ABB CI854AK01 PROFIBUS-DP/V1 Interface is an industrial-grade communication interface module belonging to the ABB Advant AC800M series, designed to enable high-speed, reliable data transmission between field devices and control systems via the PROFIBUS-DP/V1 protocol.
| Specification | Value |
|---|---|
| Interface Type | PROFIBUS-DP/V1 |
| Maximum Communication Rate | 12 Mbit/s |
| Power Supply Voltage | 24V DC |
| Dimensions | 127.5mm (length) x 59mm (width) x 185mm (height) |
| Weight | Approximately 0.59 kg |
| Protection Rating | IP65 |
| Operating Temperature Range | -25 to 70 degrees Celsius |
| Number of Channels | 2 PROFIBUS ports |
| Maximum Connected Nodes | 32 |
| Installation Method | DIN rail mounting |
| Connector Type | 9-pin DB female |
Key Features:
- High reliability with industrial-grade construction for harsh operating environments
- Supports multiple protocols including PROFIBUS DP, Ethernet/IP, Modbus TCP, IEC 60870-5-101, and IEC 60870-5-104
- Redundancy capabilities for line and master station to ensure continuous communication
- Programmable via menu keys to adapt to different application requirements
- Seamless integration with ABB AC800M and S800 I/O systems
- Real-time diagnostic functions for communication status monitoring and fault self-detection
Applications:
- Process control and machine automation in manufacturing industries
- Equipment monitoring and parameter regulation in power systems, petrochemical, and water treatment facilities
- Traffic signal control and energy management in transportation and infrastructure projects
- Redundant control systems requiring high communication availability
Related Models:
- CI854A
- CI853K01
- CI855K01
