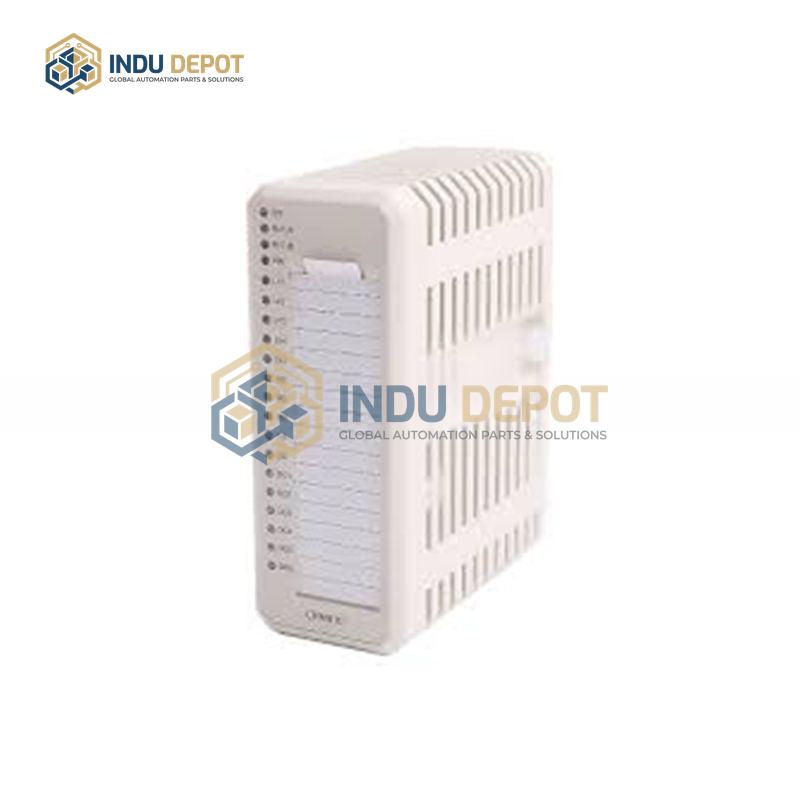

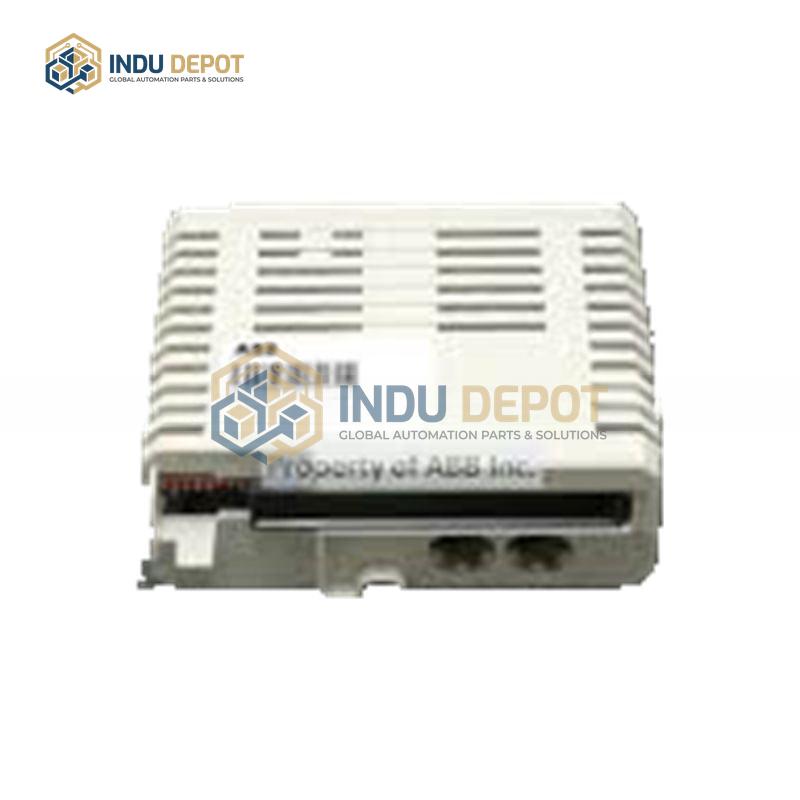

ABB CPM810 Common Processor Module for PLC Systems
Description
ABB CPM810 Common Processor Module is a high-performance, modular common processor module and human-machine interface (HMI) designed for PLC (Programmable Logic Controller) systems, serving as a core control component for industrial automation applications.
| Specification | Value |
|---|---|
| Input Voltage Range | 12 – 48 VDC |
| Output Voltage | 5 VDC |
| Output Current | 10 A |
| Efficiency | Greater than 90% |
| Dimensions | 170mm x 105mm x 32mm |
| Weight | Approximately 120g |
| Operating Temperature | -20 to 50 degrees Celsius |
| Storage Temperature | -40 to 70 degrees Celsius |
| Display | 10.1-inch color TFT, 1280 x 800 resolution |
| Processor | Intel Atom E3845; 32-bit RISC processor |
| Memory/Storage | 2GB DDR3L; 128GB SSD |
Key Features:
- Supports multi-touch operation for intuitive HMI interaction
- Rich I/O interfaces including 2 USB 2.0, 1 RS232, 1 RS485, and 1 Ethernet port
- Compatible with multiple communication protocols: Modbus TCP/IP, OPC UA, EtherNet/IP, PROFINET
- Runs Windows 10 IoT Enterprise operating system for flexible programming and integration
- High-speed processing capability for real-time industrial control tasks
Applications:
- Mechanical control and process control systems
- Robot automation, packaging, and textile manufacturing lines
- HVAC (Heating, Ventilation, and Air Conditioning) industrial systems
- Power generation, metallurgy, and chemical plant automation setups
