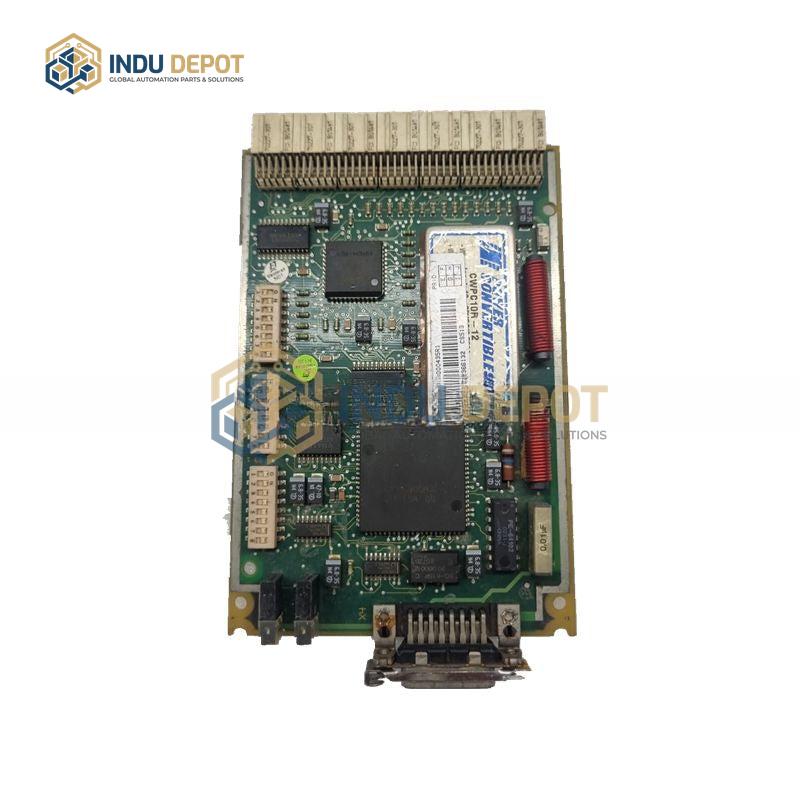

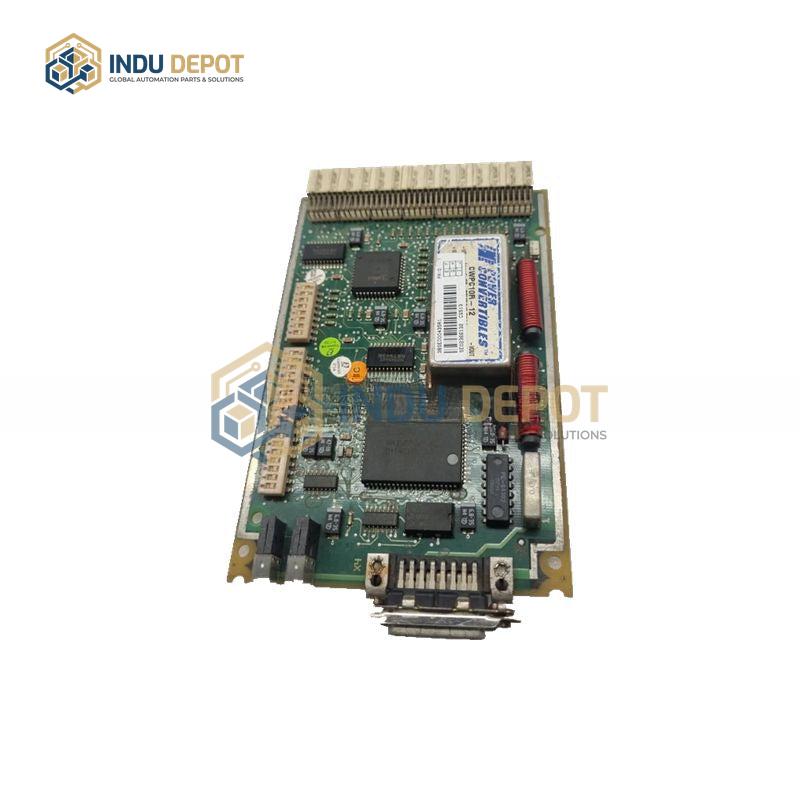

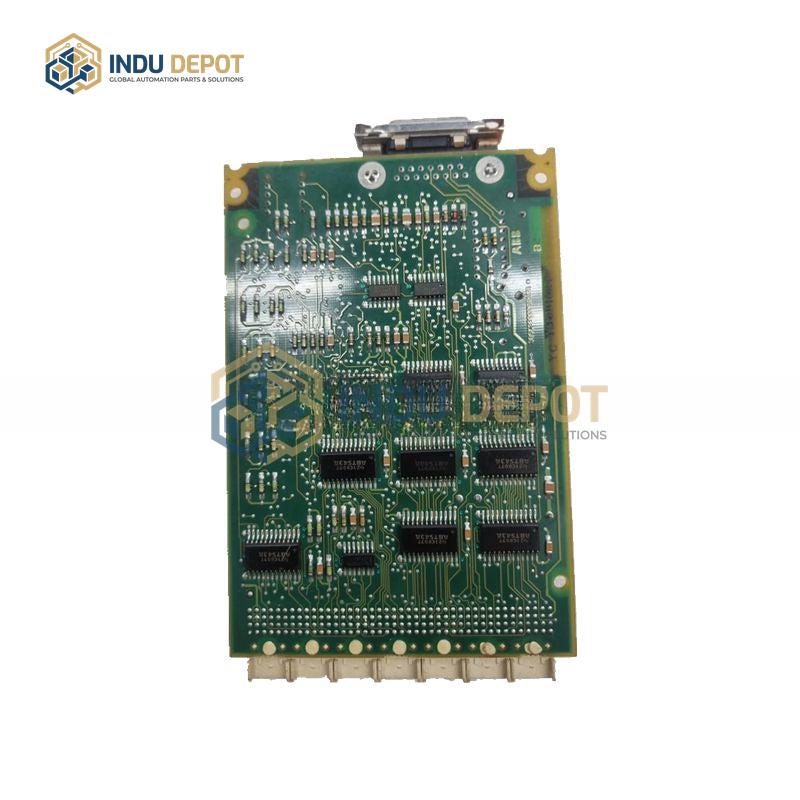

ABB CS513 Industrial Communication Board

Description

The ABB CS513 Industrial Communication Board is a high-performance, high-reliability component designed for industrial automation, part of the ABB Advant OCS and S100 I/O systems. Equipped with a 32-bit RISC processor running at 100MHz, it supports complex control algorithms for demanding industrial tasks. Key features include flexible multi-protocol communication support, dust and water-resistant construction, modular design for easy integration, and strong load capacity that allows direct connection to 220V AC or 24V DC power sources. Some models support hot-swappable I/O modules for fast fault recovery, with integrated self-diagnostic functions for real-time status monitoring and fault alarms.

Specific variants offer tailored specifications: the CS513K04 includes 4 analog input (AI) channels, 4 analog output (AO) channels, configurable voltage/current signal types, 16-bit resolution with ±0.1% accuracy, and Profibus-DP/Modbus RTU communication interfaces, with a 24VDC (±20%) power supply, operating temperature range of -25 degrees Celsius to 70 degrees Celsius, IP20 protection rating, and DIN 35mm rail mounting. The CS513 3BSE000435R1 LAN module supports TCP/IP, UDP, and Modbus TCP protocols, operating from -20 degrees Celsius to 60 degrees Celsius for Ethernet-based remote monitoring and data transfer. Ideal for process control, data acquisition, and device interoperability, the CS513 series is widely used in manufacturing, energy, chemical, oil and gas, smart building, and power system applications.
